Description

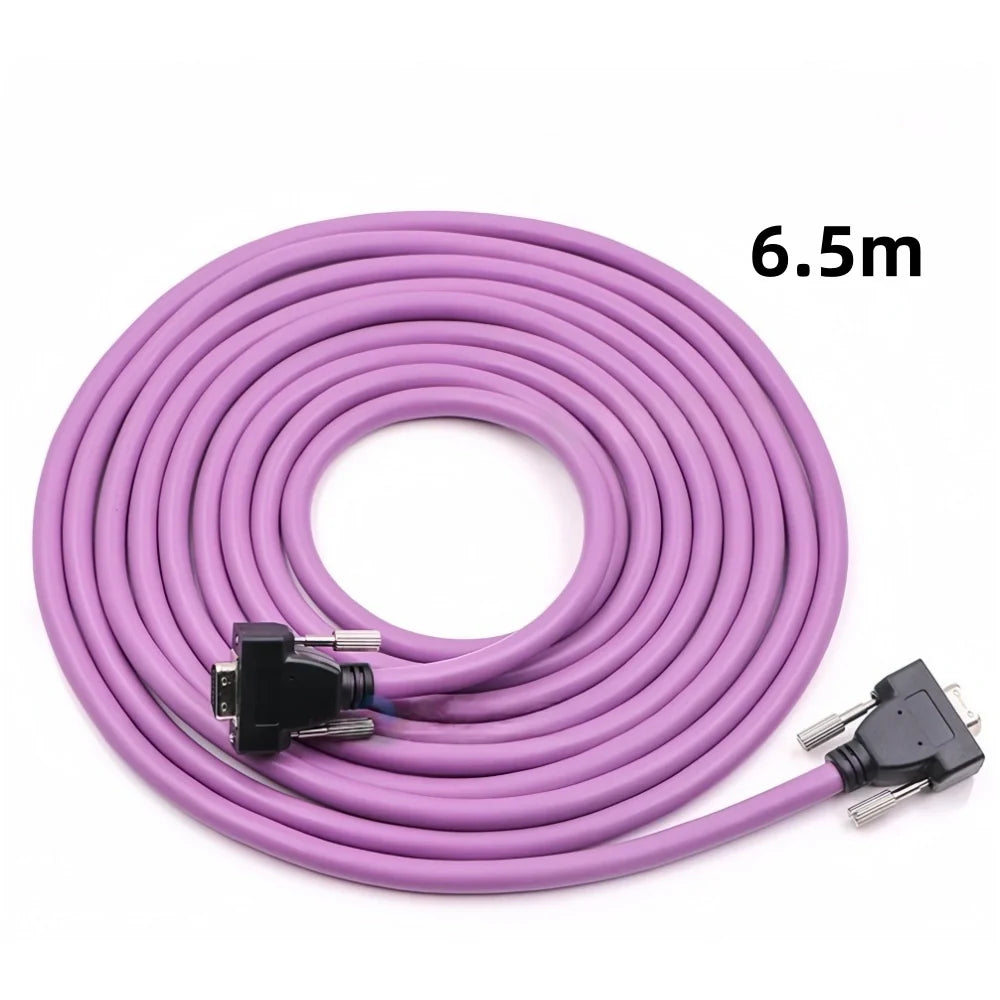

xThis 14-pin LVDS data cable is designed for high-speed data transmission inside large-format printing equipment. It connects the main control board to the printhead or carriage system, ensuring stable image data delivery during continuous printing operations.
The cable adopts a differential LVDS signal structure, helping reduce electromagnetic interference and maintain signal integrity even over long distances.
Available Length Options
| Length | Recommended Application |
|---|---|
| 60 cm | Short internal connection or compact printer layout |
| 4 m | Standard LVDS wiring for medium-size printers |
| 6 m | Extended carriage distance applications |
| 6.5 m | Long-gantry printer structures |
| 9 m | Industrial large-format or wide-bed printers |
Product Features
- 14-pin high-density connector for secure data transmission
- LVDS differential signaling with strong anti-interference performance
- Flexible insulated jacket for repeated bending and movement
- Reliable signal stability over long cable runs
- Suitable for continuous industrial printing environments
Technical Specifications
| Item | Specification |
|---|---|
| Connector Type | 14-pin male to male |
| Signal Type | LVDS (Low-Voltage Differential Signaling) |
| Conductor | Copper core |
| Outer Jacket | Flexible PVC insulation |
| Application | Mainboard to printhead data connection |
This cable is ideal for replacing aging or damaged LVDS wiring, helping restore stable data communication and consistent print quality.
