Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers

Encoder Sensor H9740 (1631) – For Large Format Printers

SKU: Decoder - 057
$24.30
$24.30
Model: H9730 Single Decoder
Subtotal: $24.30
AfterPay American Express Apple Pay Diners Club Discover Google Pay JCB Klarna Maestro Mastercard PayPal Sofort Visa
For any product questions, click the Contact button to reach us directly.
Yanice Yanice
WhatsApp WhatsApp +86 132 0222 0423
Yanice@icolorpro.com
Secure Ordering Premium Quality 24/7 Support On Time Delivery

Secure payments

Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols

Standard refund policy

Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Encoder Sensor H9740 (1631) – For Large Format Printers

Encoder Sensor H9740 (1631) – For Large Format Printers

$24.30
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers
Encoder Sensor H9740 (1631) – For Large Format Printers

Encoder Sensor H9740 (1631) – For Large Format Printers

$24.30
Model: H9730 Single Decoder
Description
Description
x

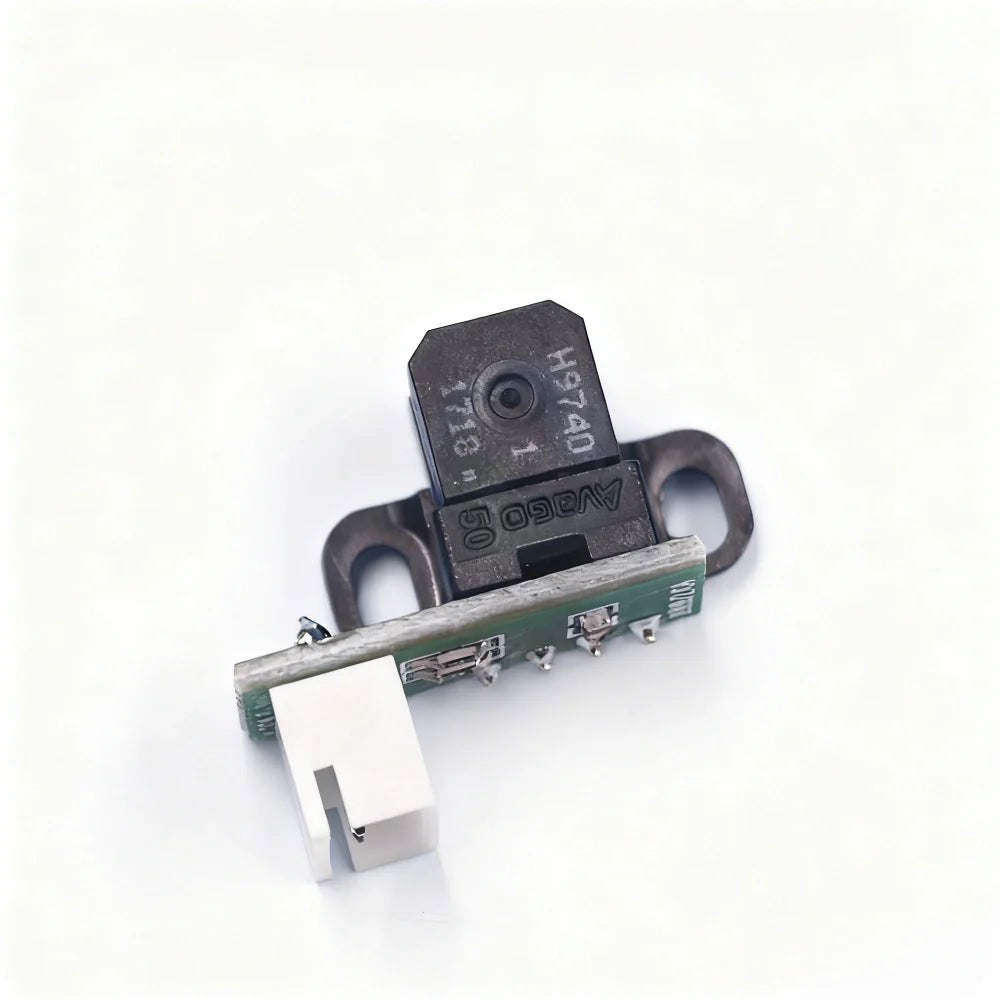

The H9740 (1631) Encoder Sensor is an upgraded optical decoding component developed for large-format printers. It is designed for precise motion detection and stable signal transmission, helping keep printhead carriage positioning accurate and print quality consistent even during high-speed printing.

Product Overview

This model is suitable for multiple large-format printer models and features dual A/B channel output for accurate motion control. Compared with the H9730 model, it offers improved optical stability. It can be supplied with or without a signal cable, and its durable PCB plus heat-resistant casing help support long-term use.

Technical Specifications

  • Model: H9740 (1631)
  • Working Voltage: DC 5V
  • Signal Output: A/B Dual Channel Signal
  • Interface: 4-Pin Connector / Optional Cable
  • Cable Length (Optional): 40cm Standard
  • Compatible Models: Mimaki, Roland, Mutoh, and similar large-format printers

Version Comparison

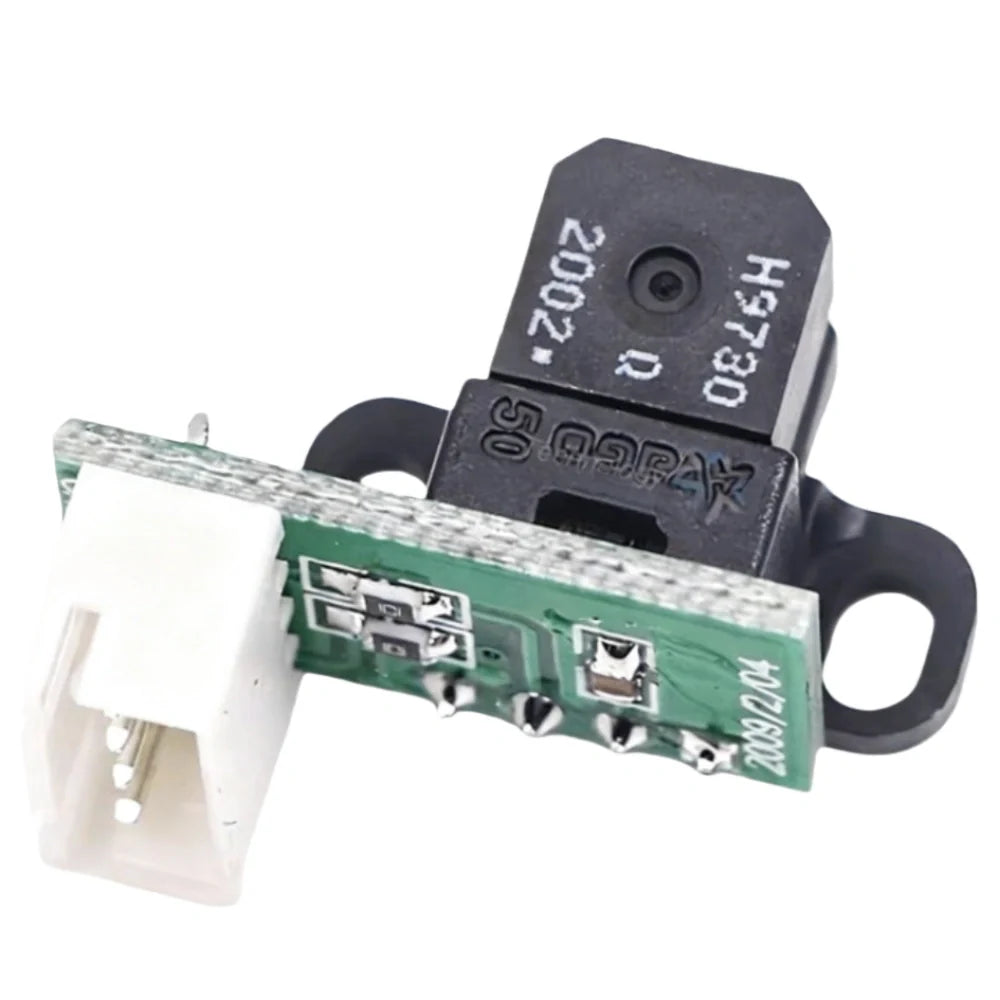

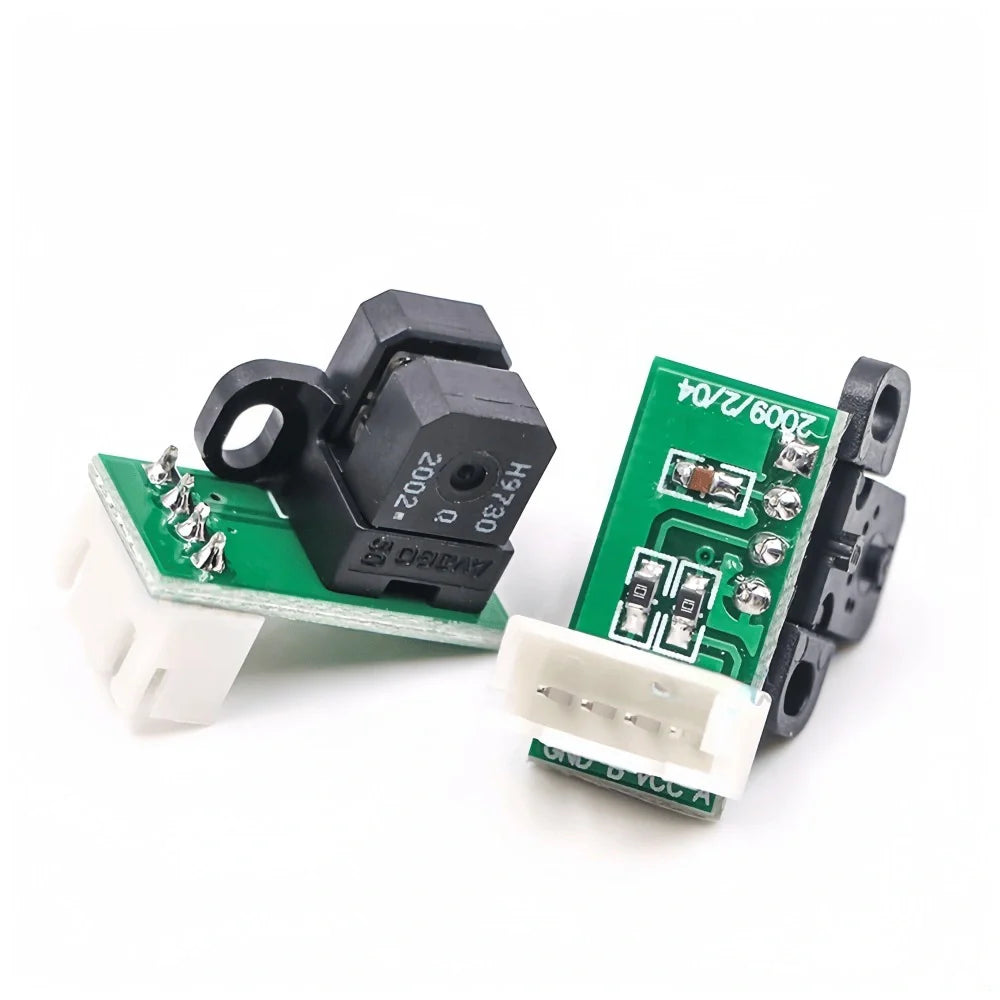

H9730 Single Decoder
Standard model without cable, ideal for maintenance replacement.
Recommended Use: Users with existing cables.

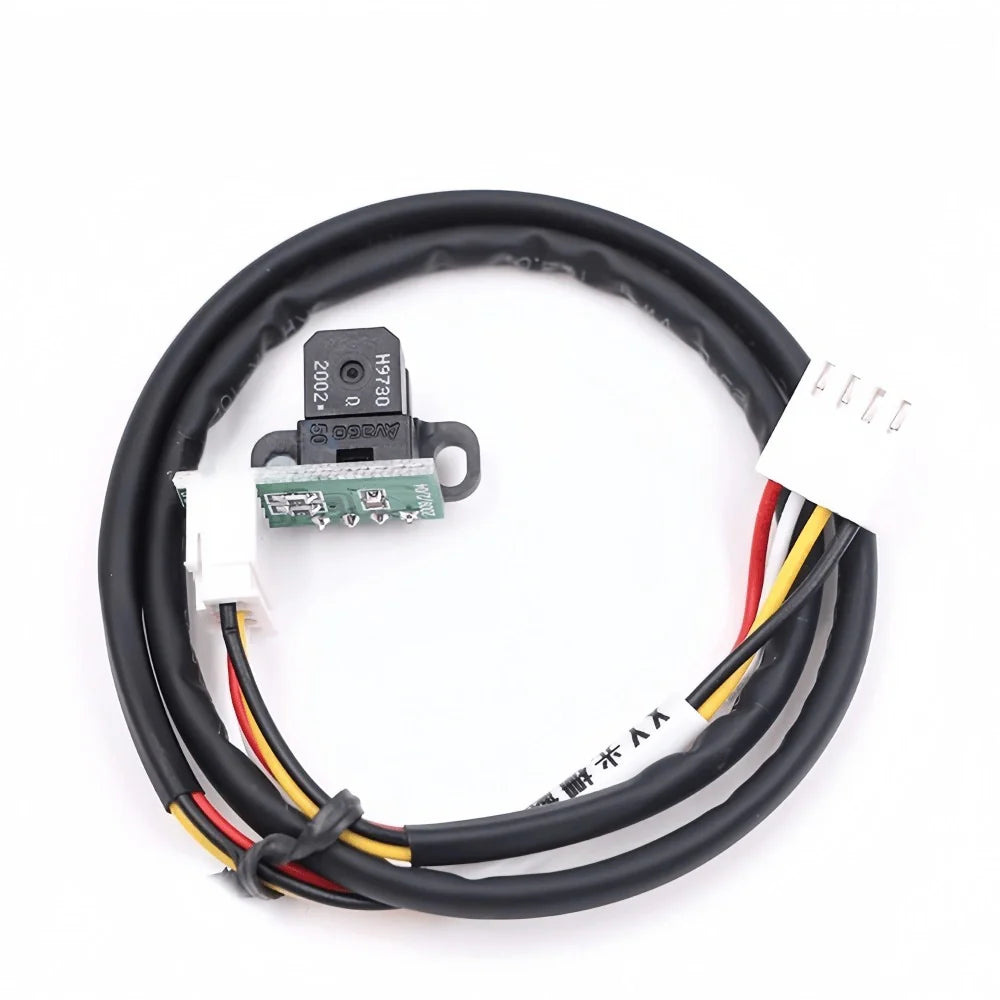

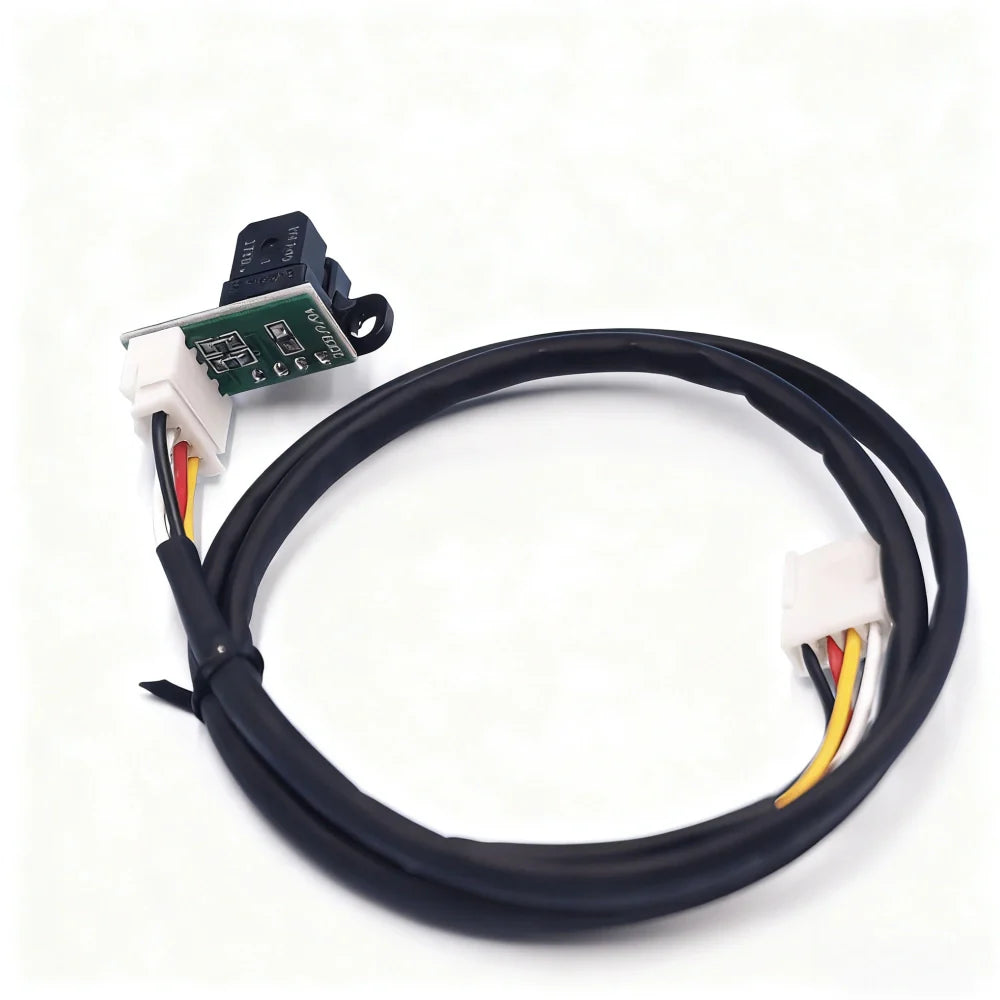

H9730 Decoder with Cable
Pre-wired version for direct plug-and-play use.
Recommended Use: For fast installation or field service.

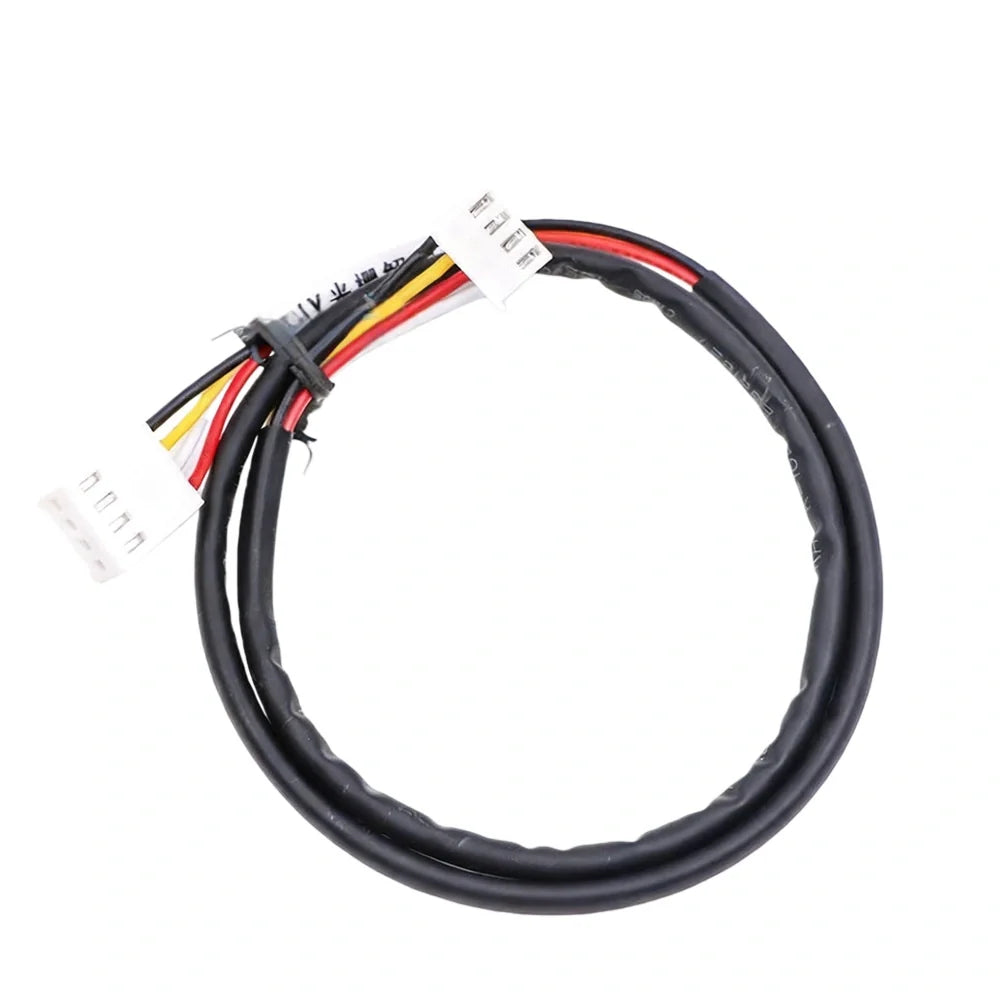

Single Cable
High-quality replacement data cable.
Recommended Use: When the original wire is damaged.

H9740 Single Decoder
Upgraded high-precision sensor, no cable included.
Recommended Use: Industrial printers with external wiring.

H9740 Decoder with Cable
Integrated model with cable for easy replacement.
Recommended Use: Recommended for all-purpose installation.

Installation Notes

Before installing or replacing the encoder sensor, turn off the printer power. Make sure the optical window is aligned with the encoder strip, and keep a 0.3–0.6mm gap between the sensor and strip. The encoder strip should remain clean and free of dust.

Note: The H9740 (1631) is an enhanced version of the H9730, offering better decoding precision and signal stability for high-speed, large-format printers.
