Encoder Sensor H9740 (1732) Optical Sensor – 360 LPI Printer
SKU:
Decoder - 063
- $27.10
- $27.10
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

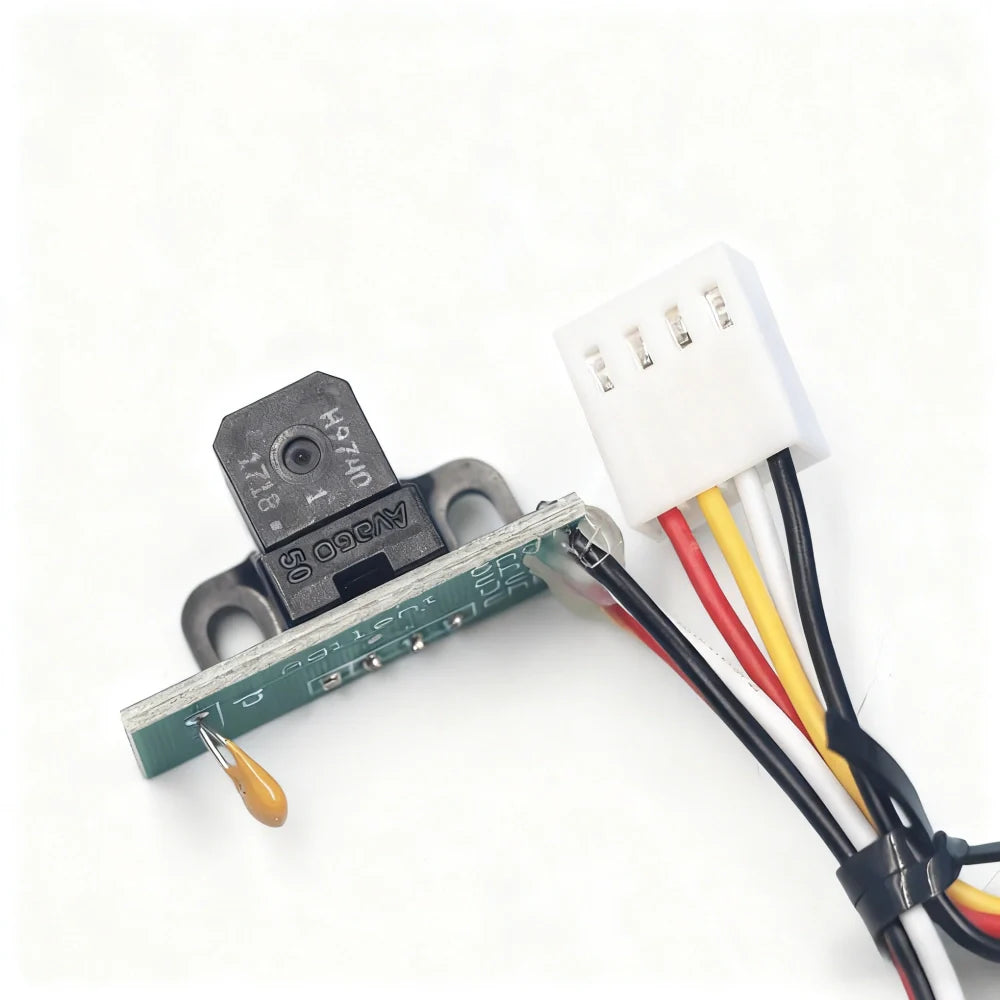

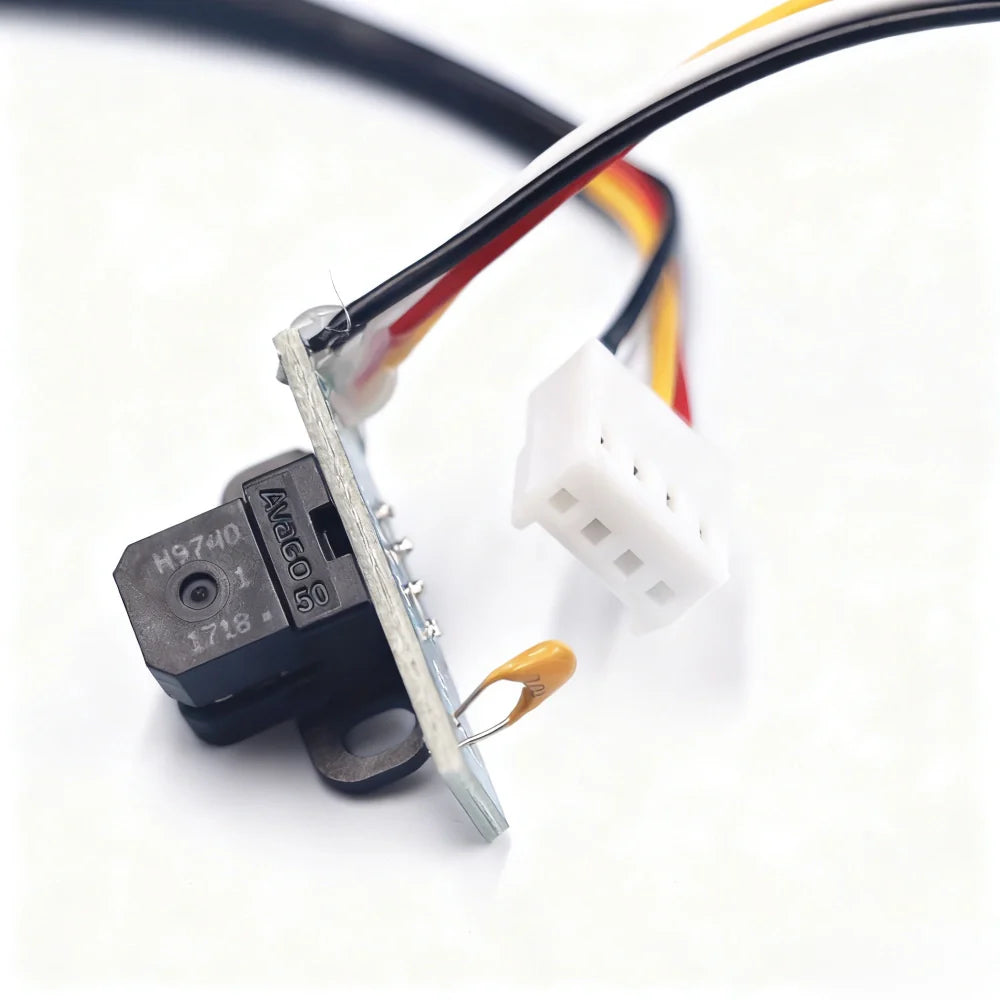

xEncoder Sensor H9740 (1732) – For 360 LPI Printers
Product Overview
The H9740 (1732) Encoder Sensor is a high-precision optical reading component designed for UV flatbed and large-format 360 LPI printers. It ensures accurate motion detection of the printhead carriage and provides stable signal decoding for reliable printing performance across long production runs.
Key Features
- Equipped with imported H9740 optical reading head for high precision.
- Supports 360 LPI resolution for accurate printhead positioning.
- Multiple connector and wire configurations to fit different printer types.
- Stable signal output even in high-speed and high-temperature conditions.
- Durable wiring and protective insulation for long-term industrial use.
Technical Specifications
| Model | H9740 (1732) |
| Optical Resolution | 360 LPI (Lines per Inch) |
| Working Voltage | DC 5V |
| Signal Output | Dual A/B Channel |
| Connector Type | 4-Pin Connector (varies by version) |
| Compatible Models | Tameson, Jietuo, and other 360 LPI UV flatbed printers |
Version Comparison
| Version | Description | Recommended Use |
|---|---|---|
| A Model Jietuo Fixed Welding Wire | Welded fixed cable design with reinforced insulation for enhanced durability. | For stable and long-term printer installations. |
| B Model Jietuo Without Wire | Sensor only, without wire; suitable for replacement in existing setups. | For users reusing existing wiring harnesses. |

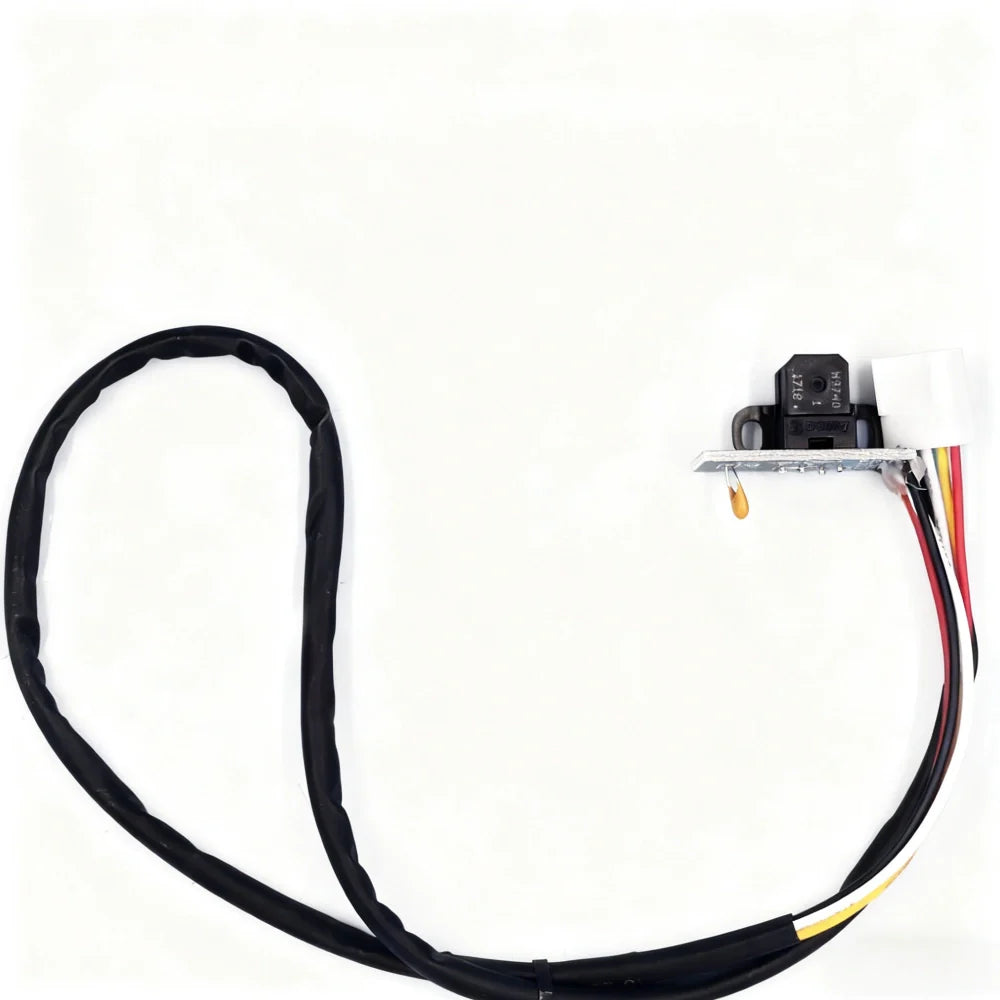

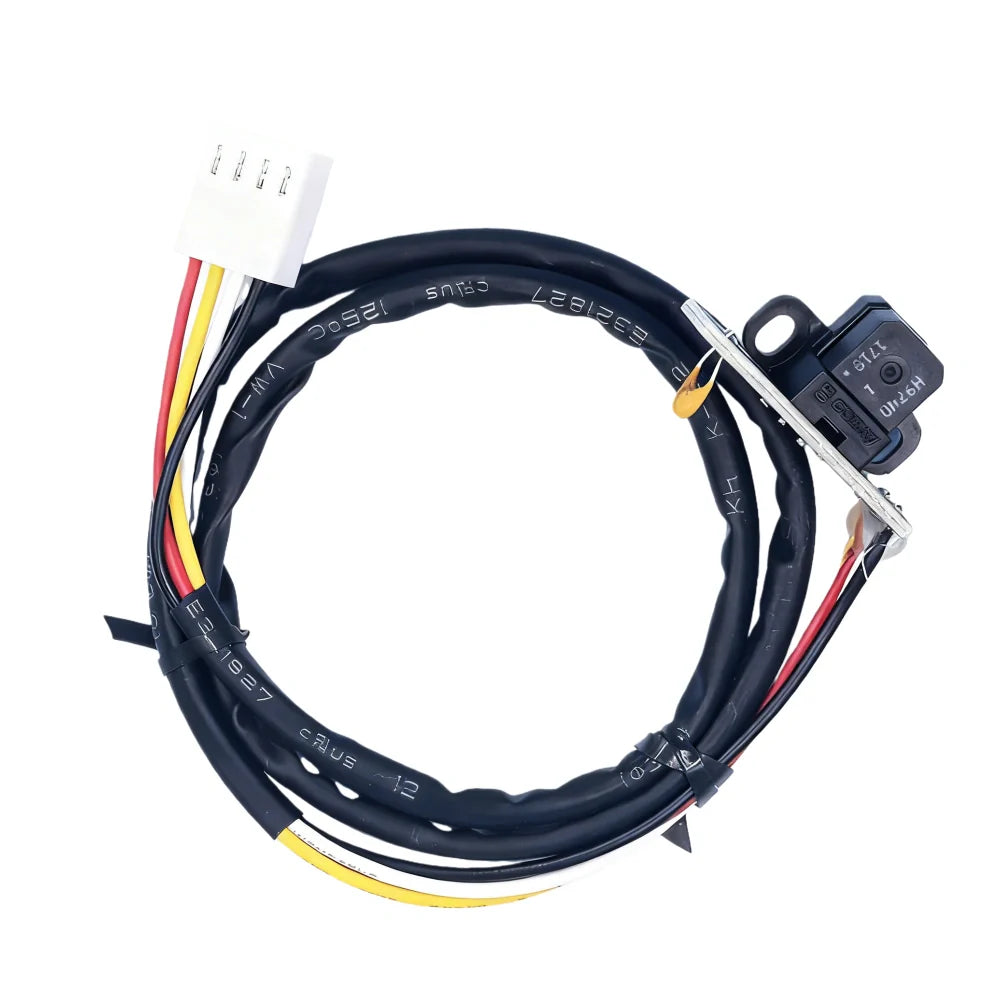

| B1 Model Jietuo With Wire | Comes with standard-length cable for easy installation. | For most Jietuo UV printers and similar models. |
Installation Notes
- Ensure printer power is off before installing the sensor.
- Align the optical gap precisely with the 360 LPI encoder strip.
- Maintain a clean, dust-free environment during installation.
- Check connector type (Tameson / Jietuo A/B/B1) before wiring.
Note: The H9740 (1732) 360 LPI Encoder Sensor provides excellent decoding precision and strong stability. Choose the correct version (Tameson or Jietuo) based on your printer’s wiring configuration.
