H9730 (2109) Sensor for 3000/4000/6000 Series Printers
SKU:
Decoder - 048
- $34.30
- $34.30
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

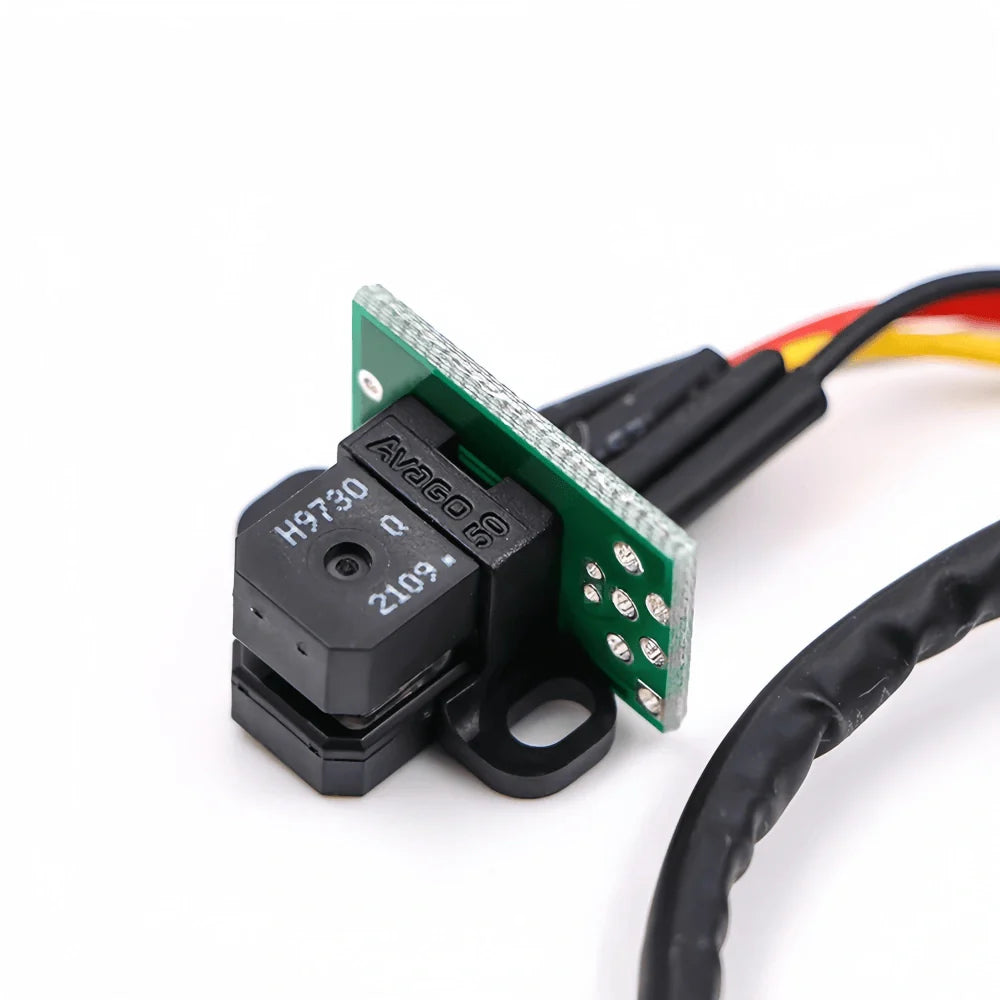

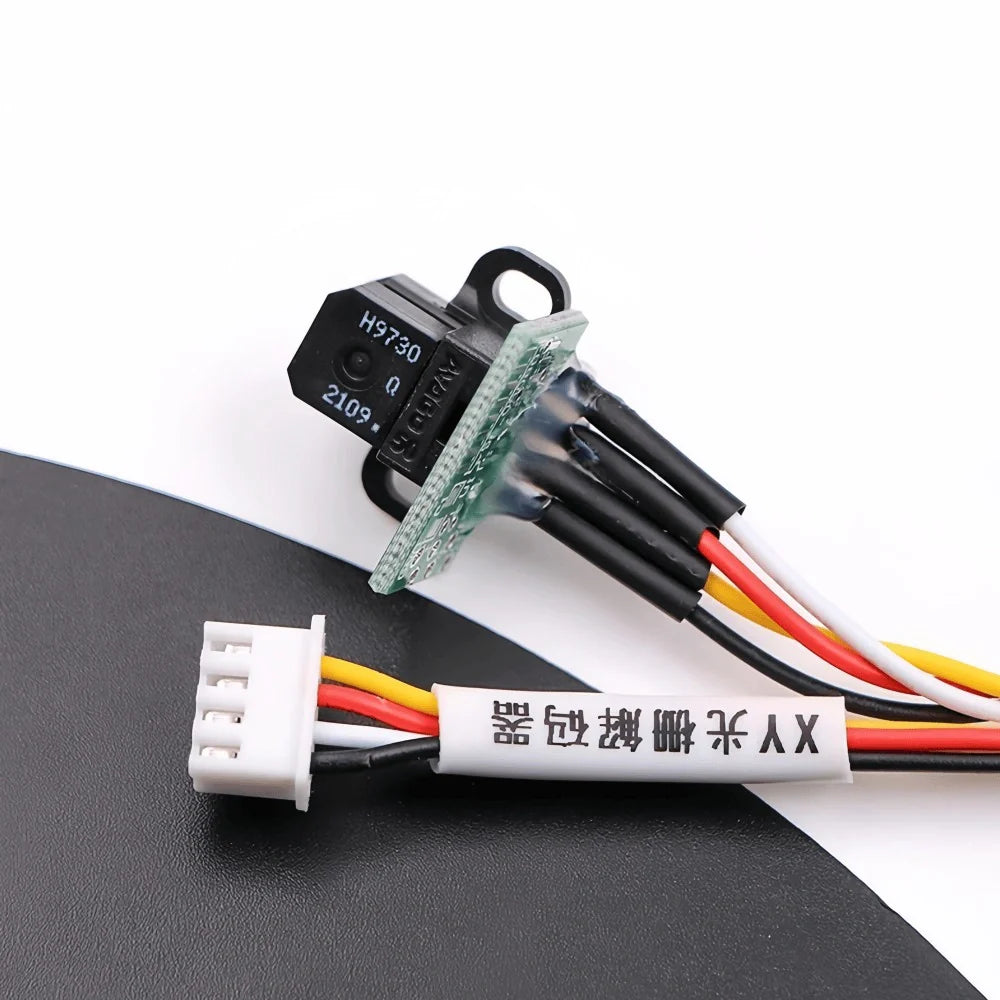

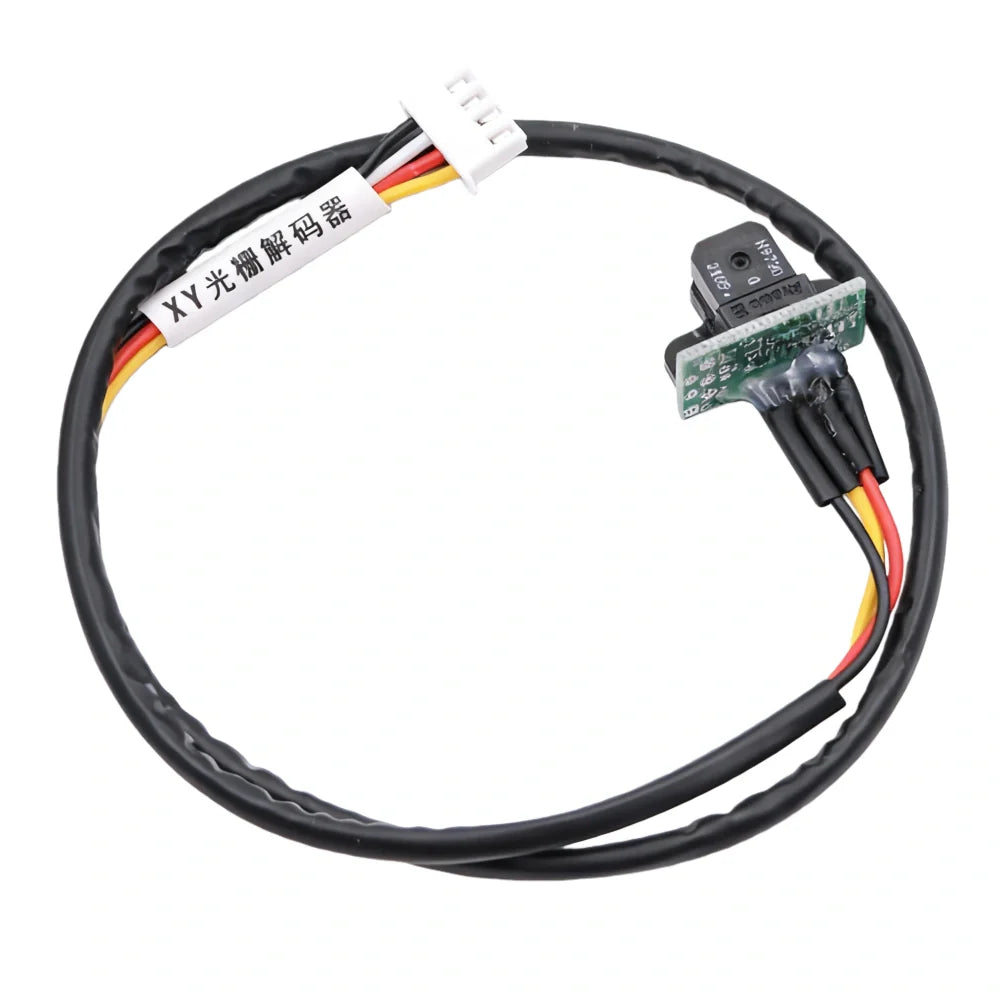

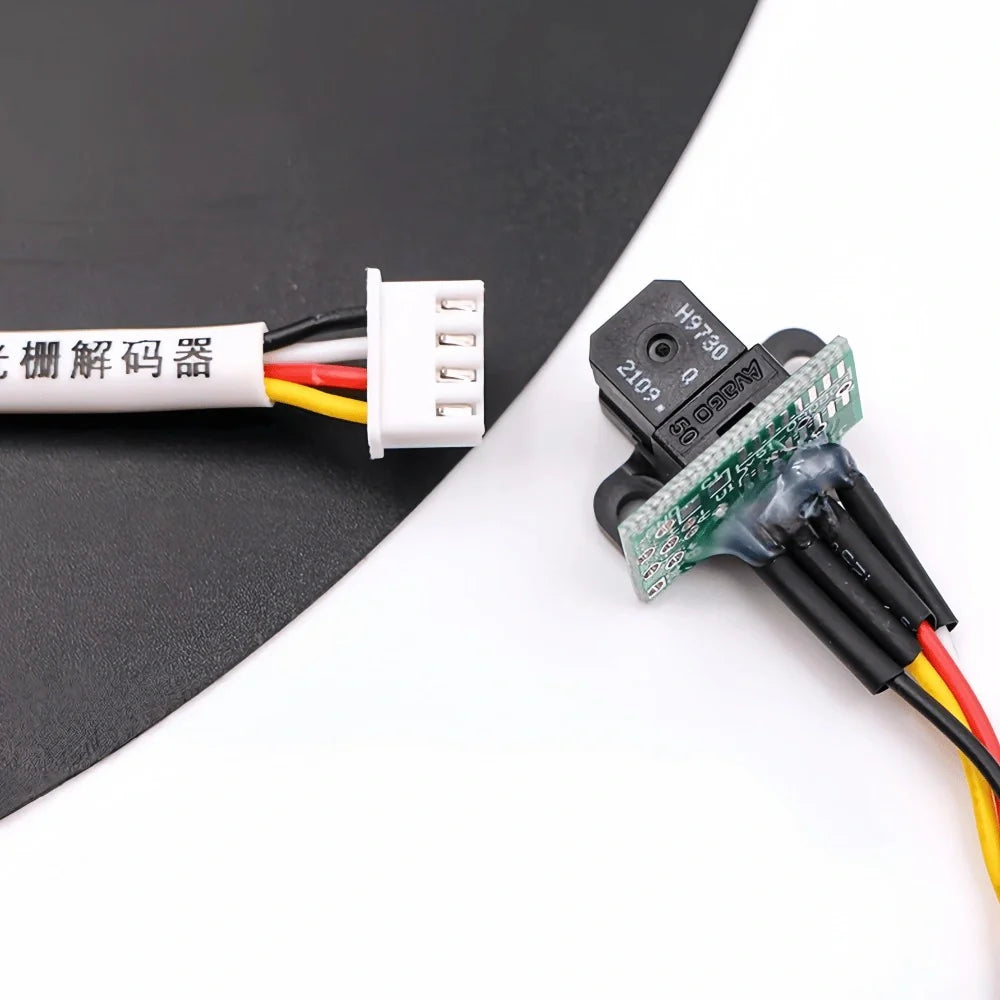

xThe H9730 (2109) encoder sensor is designed for large-format printers in the 3000, 4000, and 6000 series. It delivers accurate A/B quadrature signal feedback to ensure smooth carriage movement and stable print alignment during high-speed production.
Overview

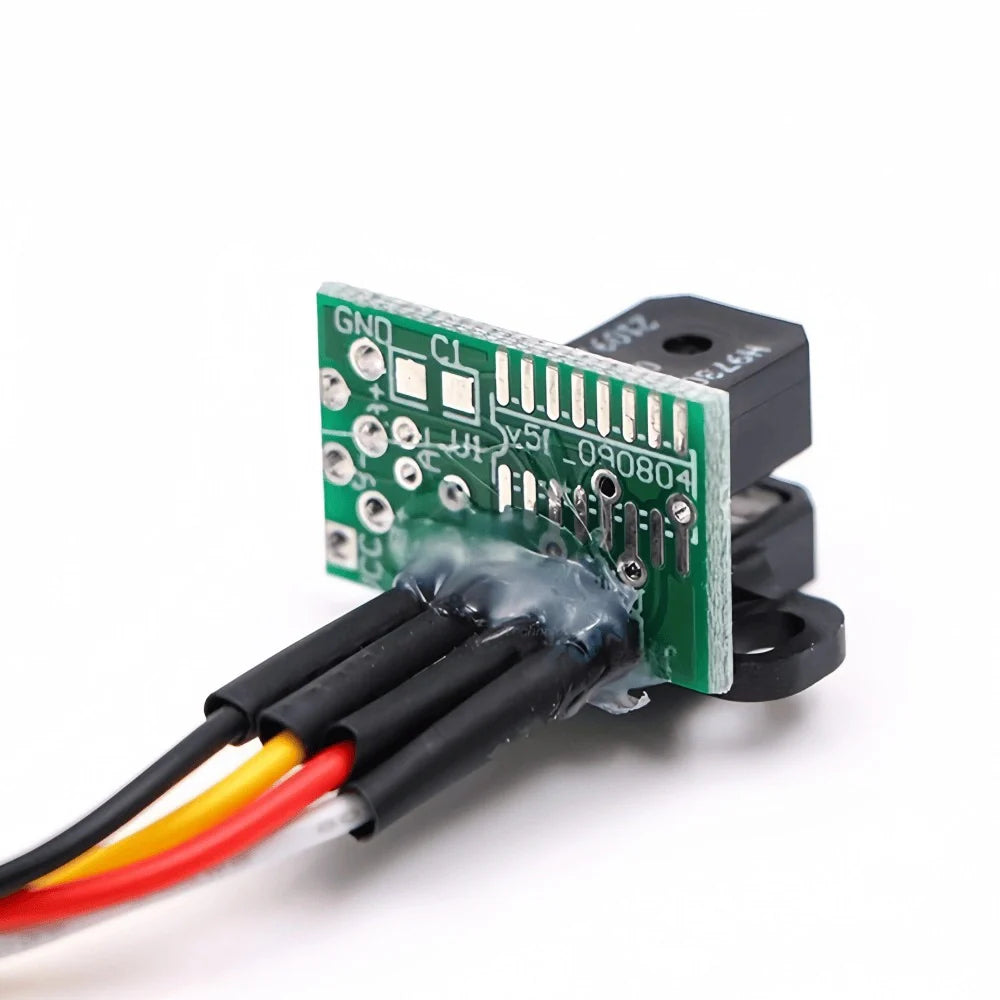

This model uses the original H9730 decoding chip and features a reinforced PCB structure for improved durability. It maintains consistent signal output even at high speed and helps reduce common printing issues such as banding and offset errors.
Technical Details
- Model: H9730 (2109)
- Voltage: DC 5V
- Signal: Dual-channel A/B quadrature
- Encoder Strip: 150–180 LPI optical scale
- Application: 3000 / 4000 / 6000 series printers
Performance Advantages
- Stable signal output for high-speed printing
- Improves positioning accuracy
- Reduces banding and misalignment
- Compatible with common encoder strip densities
Installation Guide
Before installation, power off and unplug the printer. Align the sensor window parallel to the encoder strip and keep a 0.3–0.6 mm gap. Ensure the strip is clean before testing the carriage movement after installation.
Note: Connector style and cable length may vary by machine. Confirm your printer model and configuration before purchase.
