H9730 (2109) Universal Sensor for 180 LPI Printers
SKU:
Decoder - 046
- $24.30
- $24.30
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

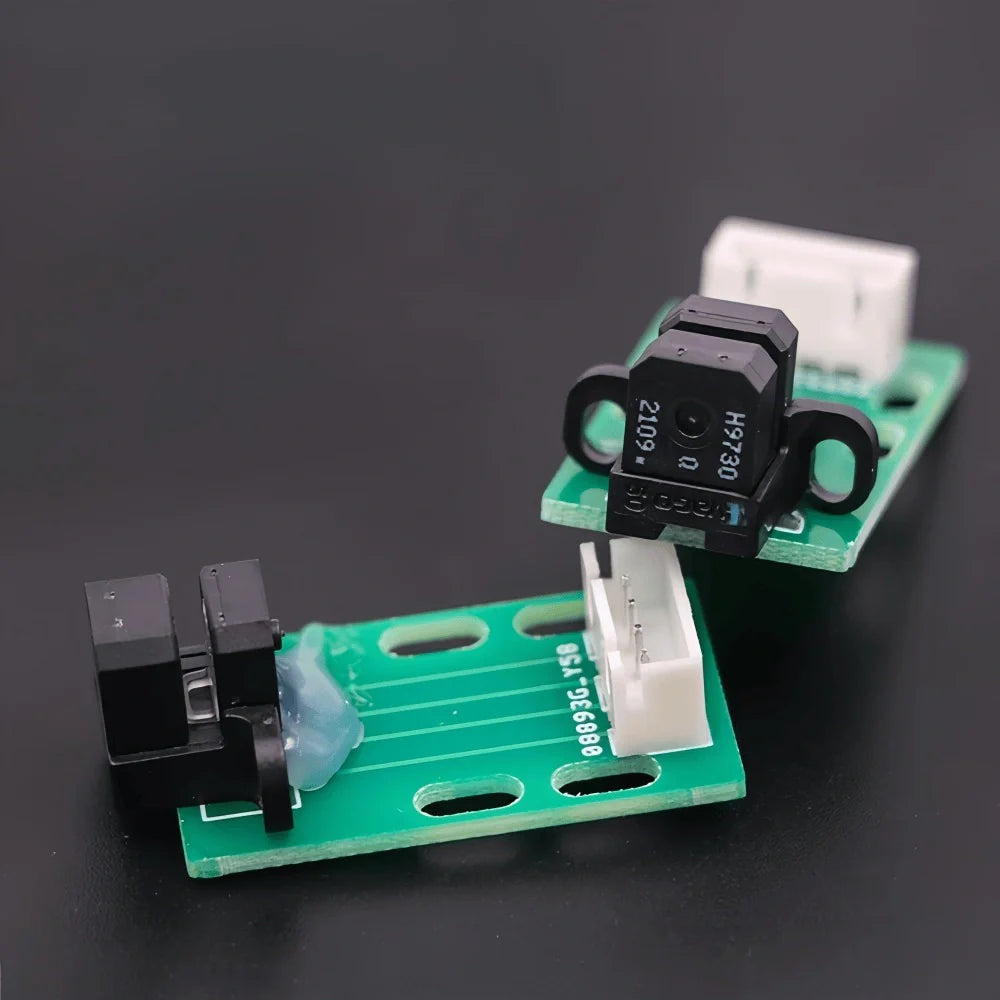

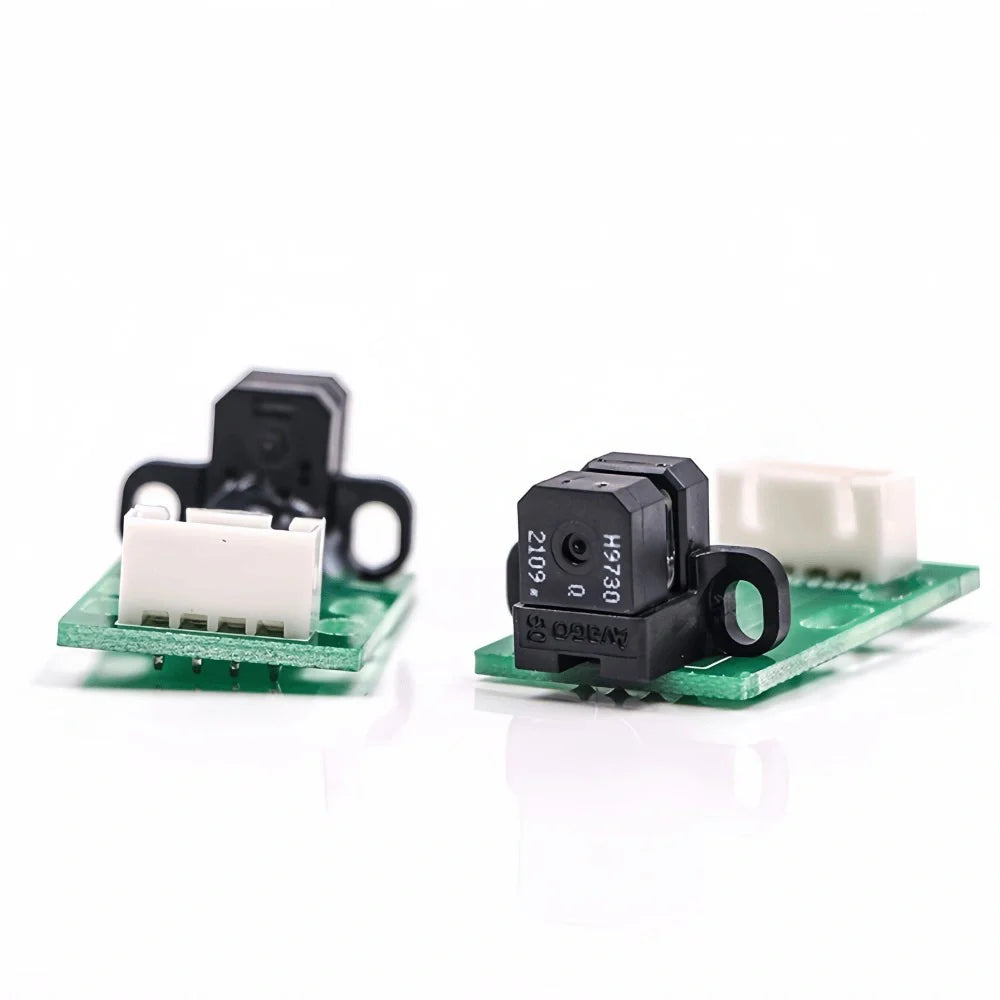

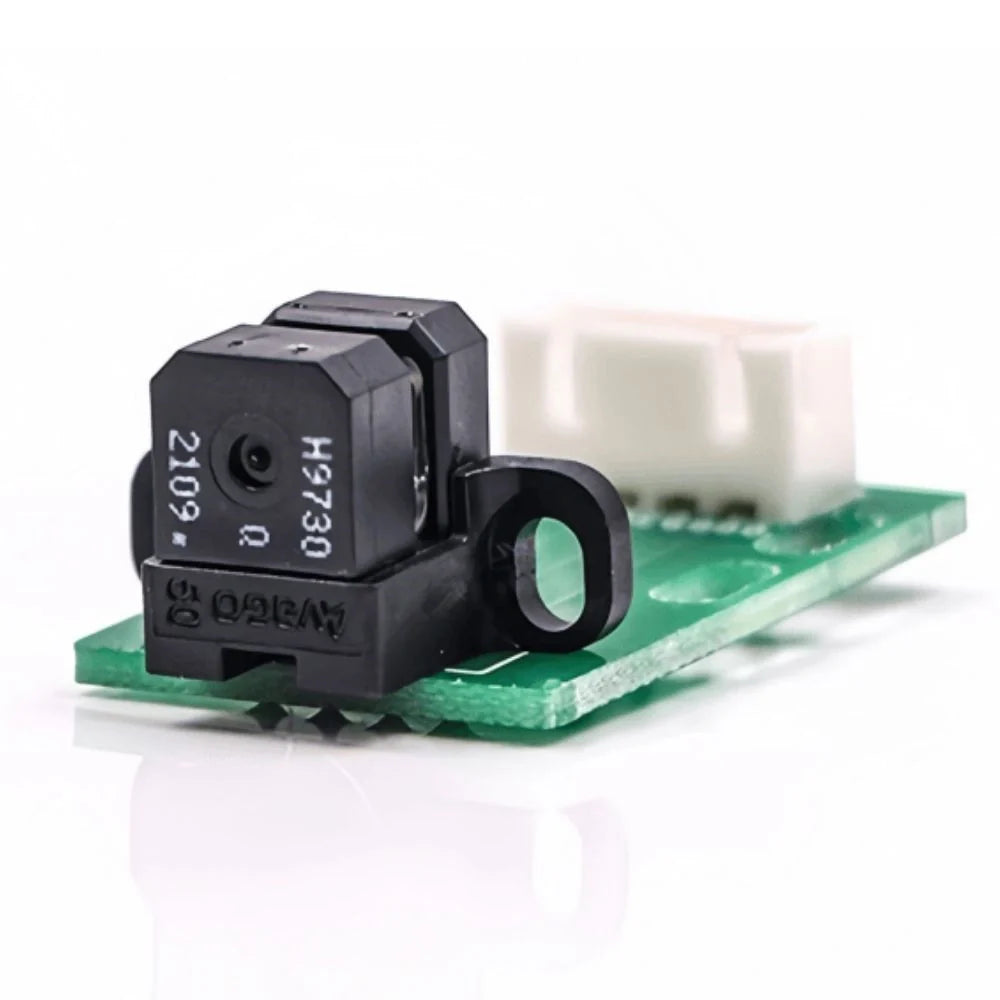

xThe H9730 encoder sensor module is designed for 180 LPI linear encoder strips used in wide-format printers. It ensures stable signal output and accurate motion tracking for carriage positioning.
Overview

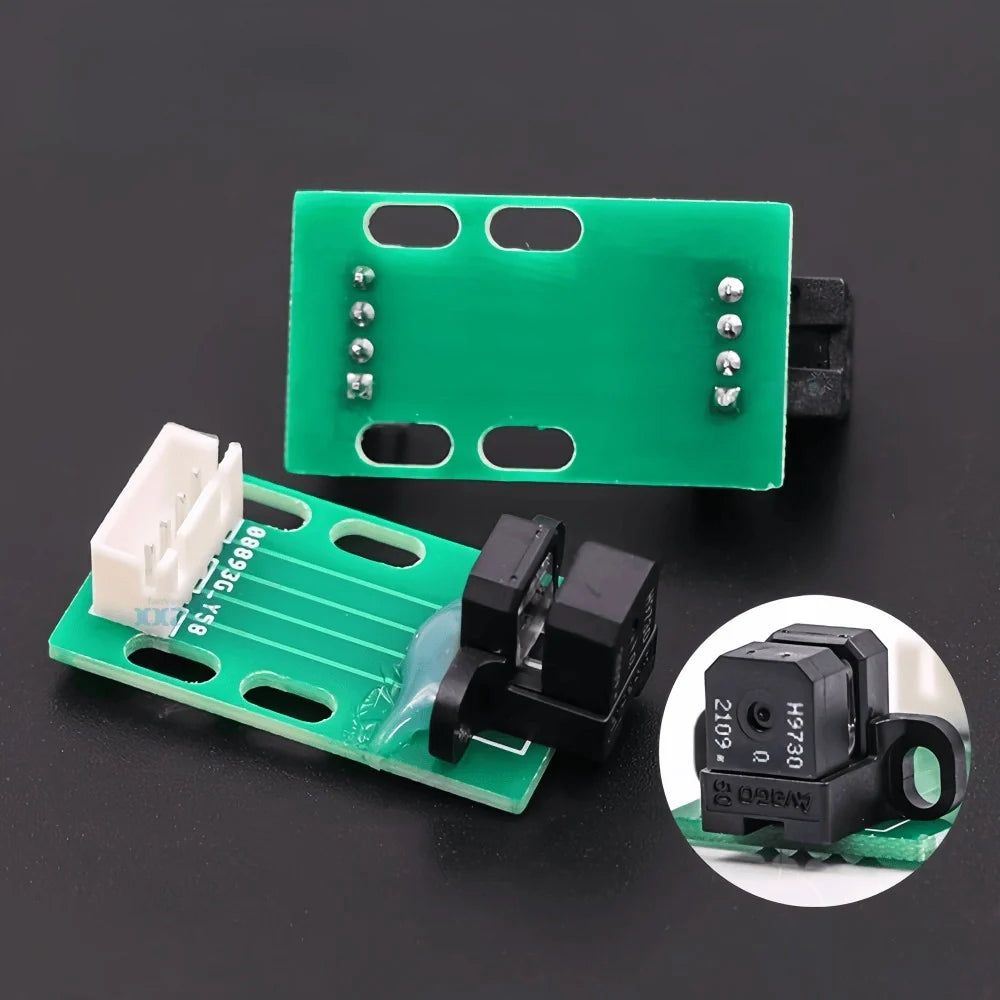

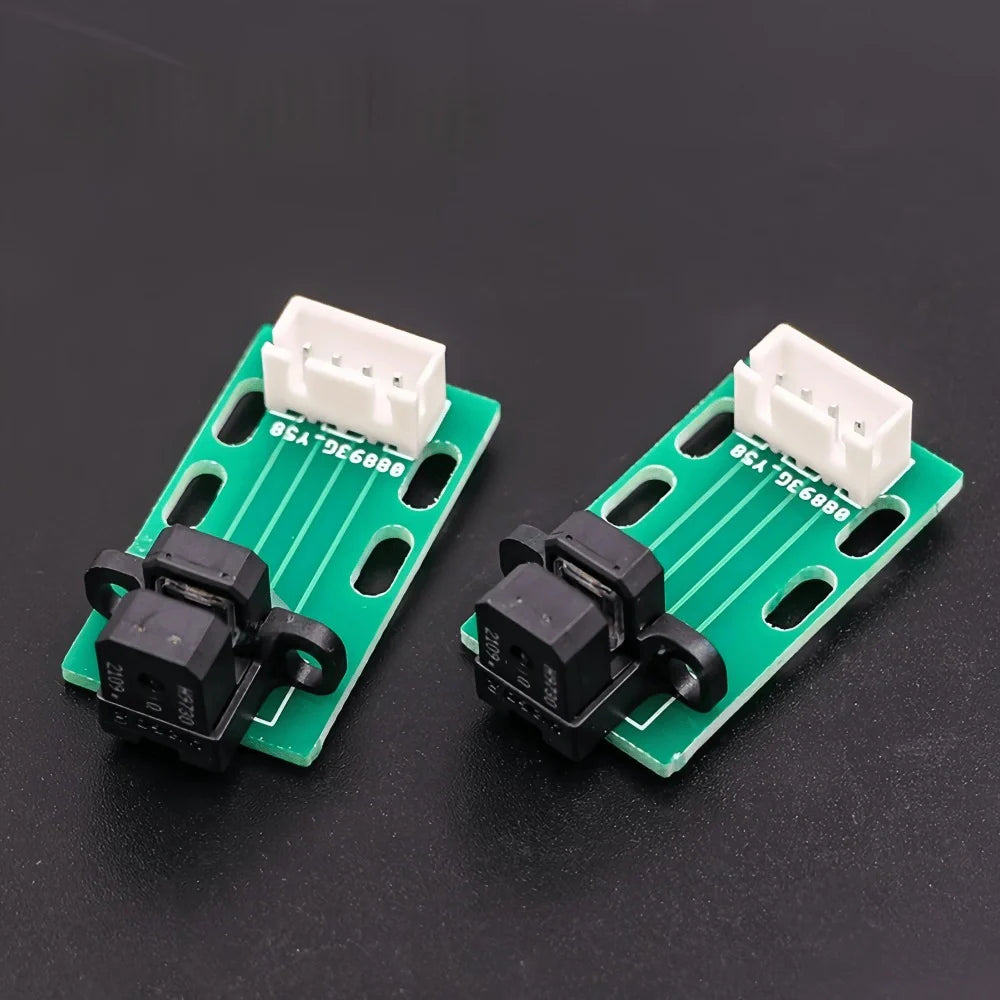

This module integrates a high-precision optical sensor and supports XY-axis motion detection. Its compact PCB design with slotted mounting holes allows flexible installation on different printer platforms.
Technical Details
- Model: H9730 (2109)
- Sensor Type: Optical Photoelectric
- Resolution: 180 LPI
- Output: 4-pin interface (GND, VCC, A, B)
- Mounting: Adjustable slotted holes
- Application: Solvent, eco-solvent, and UV printers
Key Benefits
- Stable signal output for consistent printing
- Accurate carriage tracking for improved print quality
- Easy installation and replacement
- Compatible with multiple printer systems
Function
Used for precise reading of linear scales to control carriage movement and maintain accurate printhead positioning.
Note: Ideal for replacing aging or damaged encoder modules in high-speed printing environments.
