H9730 (2139) 6-Pin Sensor for Belt-Type Printer Systems
SKU:
Decoder - 053
- $5.70
- $5.70
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

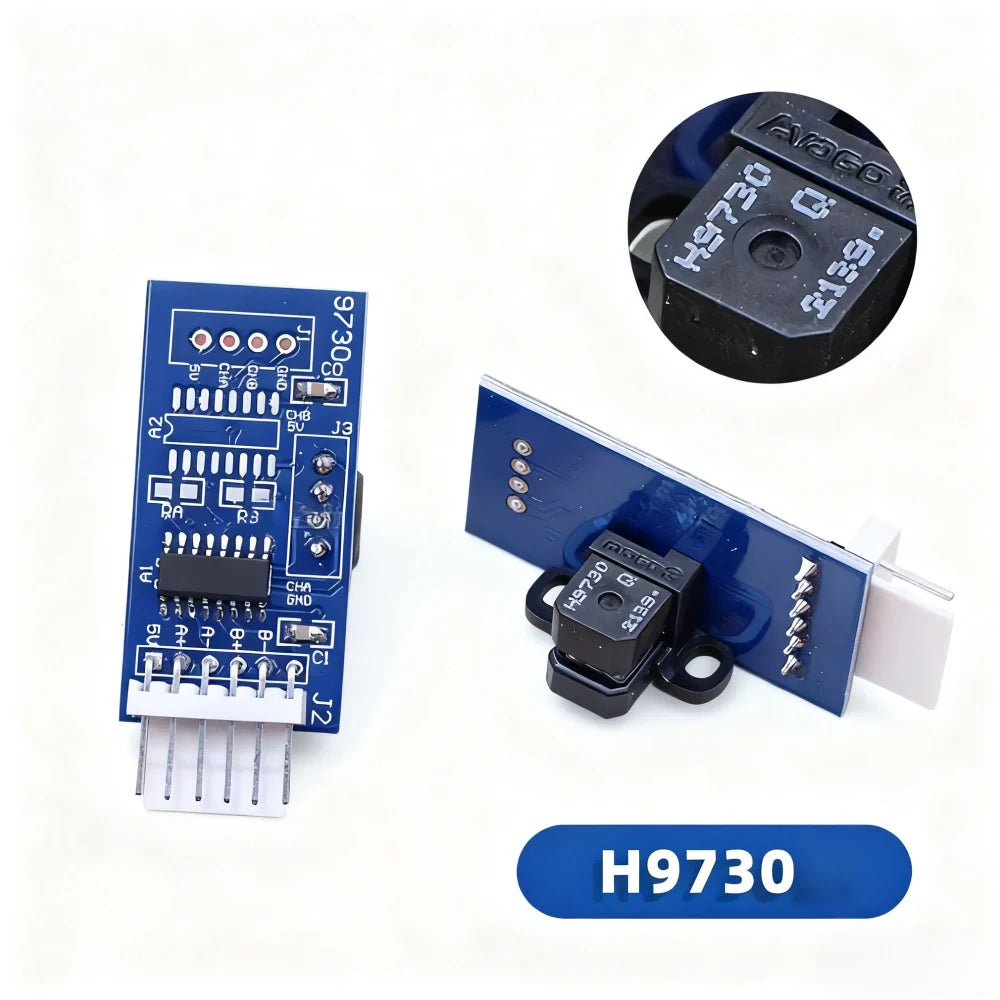

xThe H9730 (2139) encoder sensor is a 6-pin optical decoding module developed for belt-type printers and UV flatbed machines. It delivers accurate motion detection and stable signal feedback, ensuring reliable carriage positioning during printing.
Overview
This model features a 6-pin output interface for improved signal stability. It is available as a standalone sensor or as a complete set including an adapter card and data cable, allowing flexible installation depending on your system configuration.
Technical Details
- Model: H9730 (2139)
- Voltage: DC 5V
- Connector: 6-Pin output
- Signal: Dual-channel A/B quadrature
- Application: Belt-type and UV flatbed printers
Available Options
H9720 Decoder (6-Pin)
Compact design with stable decoding performance.
Use: Entry-level printers.
Compact design with stable decoding performance.
Use: Entry-level printers.
H9730 Decoder (6-Pin)
Higher sensitivity and improved decoding accuracy.
Use: Medium to high-speed printers.
Higher sensitivity and improved decoding accuracy.
Use: Medium to high-speed printers.

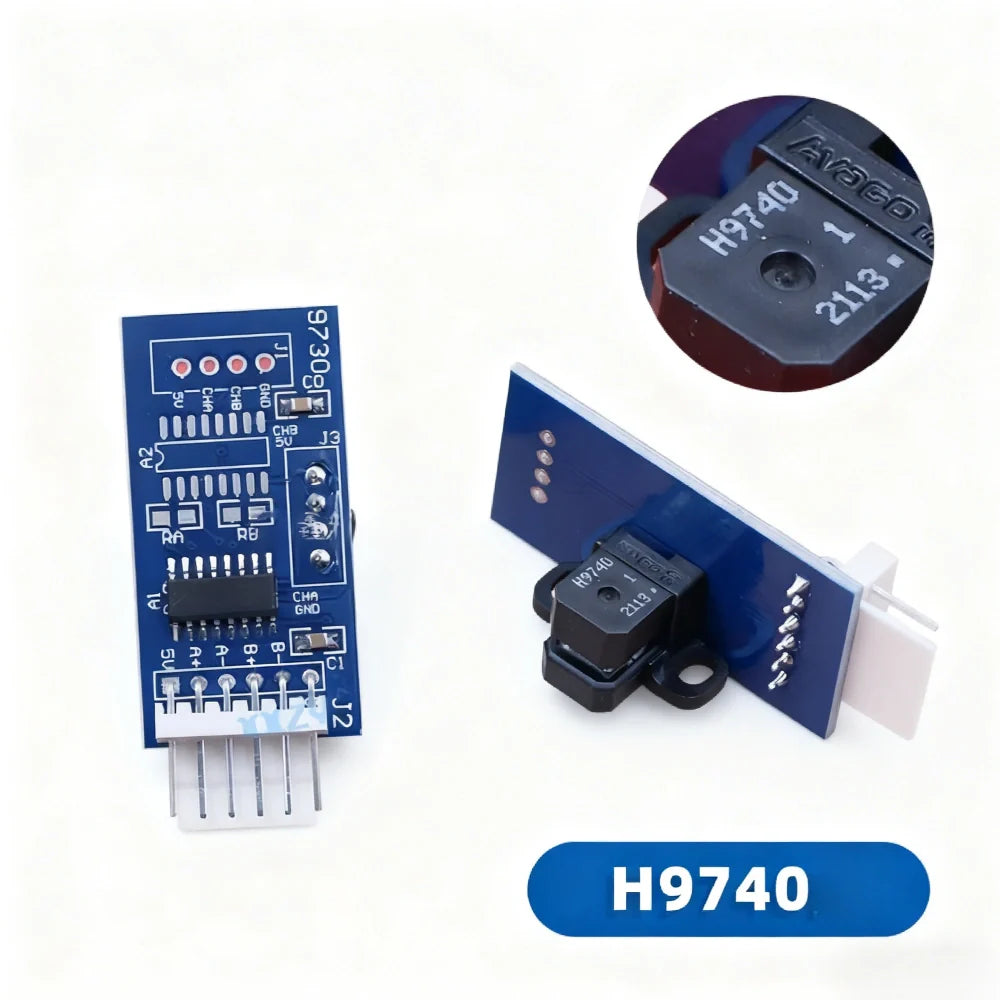

H9740 Decoder (6-Pin)
Industrial version with longer transmission capability.
Use: Large-format equipment.
Industrial version with longer transmission capability.
Use: Large-format equipment.

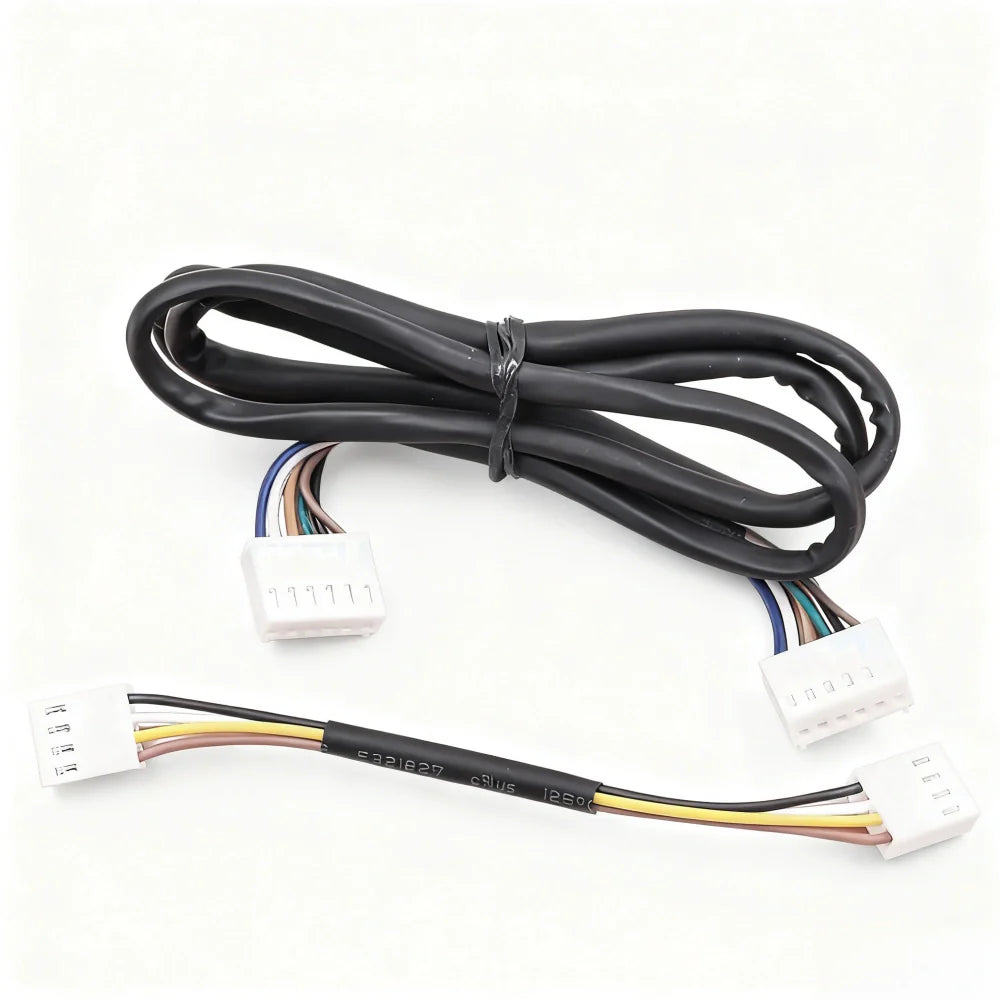

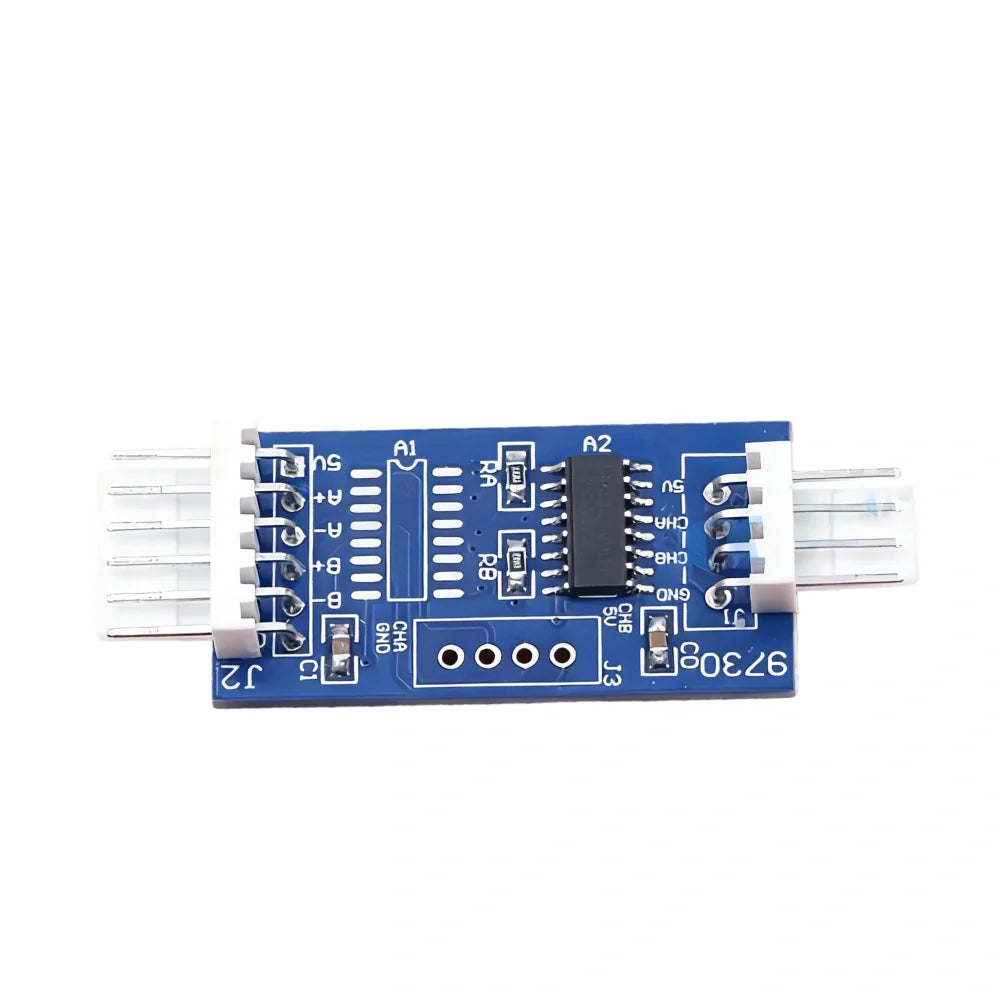

Complete H9730 Decoder Set
Includes adapter card and data cable.
Use: Plug-and-play replacement.
Includes adapter card and data cable.
Use: Plug-and-play replacement.
Installation
Before installation, turn off the printer power. Connect the 6-pin cable securely and align the sensor with the encoder strip. Maintain a 0.3–0.6 mm gap and ensure the strip surface is clean. After installation, test carriage movement for proper operation.
Note: This 6-pin H9730 (2139) sensor is designed for stable decoding and accurate positioning in belt-type and UV flatbed printers. Always confirm connector compatibility before installation.
