Ink Pressure Damper for Epson DX5 Systems
SKU:
Ink Damper - 013
- $1.10
- $1.10
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description
xThis ink pressure damper is a critical ink-flow control part for Epson DX5-based desktop printing systems. It acts as a pressure buffer and filtration point, smoothing out ink pulses from the ink line so the printhead receives a steady, clean supply during fast printing.
What This Part Does
- Buffers pressure fluctuations to reduce ink starvation and intermittent nozzle loss.
- Filters micro particles that can block fine nozzles and affect print consistency.
- Improves print stability especially on high-coverage jobs and continuous production.
Specification Summary
| System Type | Epson DX5 ink delivery system |
|---|---|
| Compatible Machines | L1800 / 1390 / 1100 / 2400 and DX5-based conversions |
| Ink Types | Eco-solvent, mild solvent, pigment, dye sublimation |
| Not Recommended | UV-curable ink |
Variant Selection Table
| Option | Color | Port Shape | Filter Size | Selection Notes |
|---|---|---|---|---|

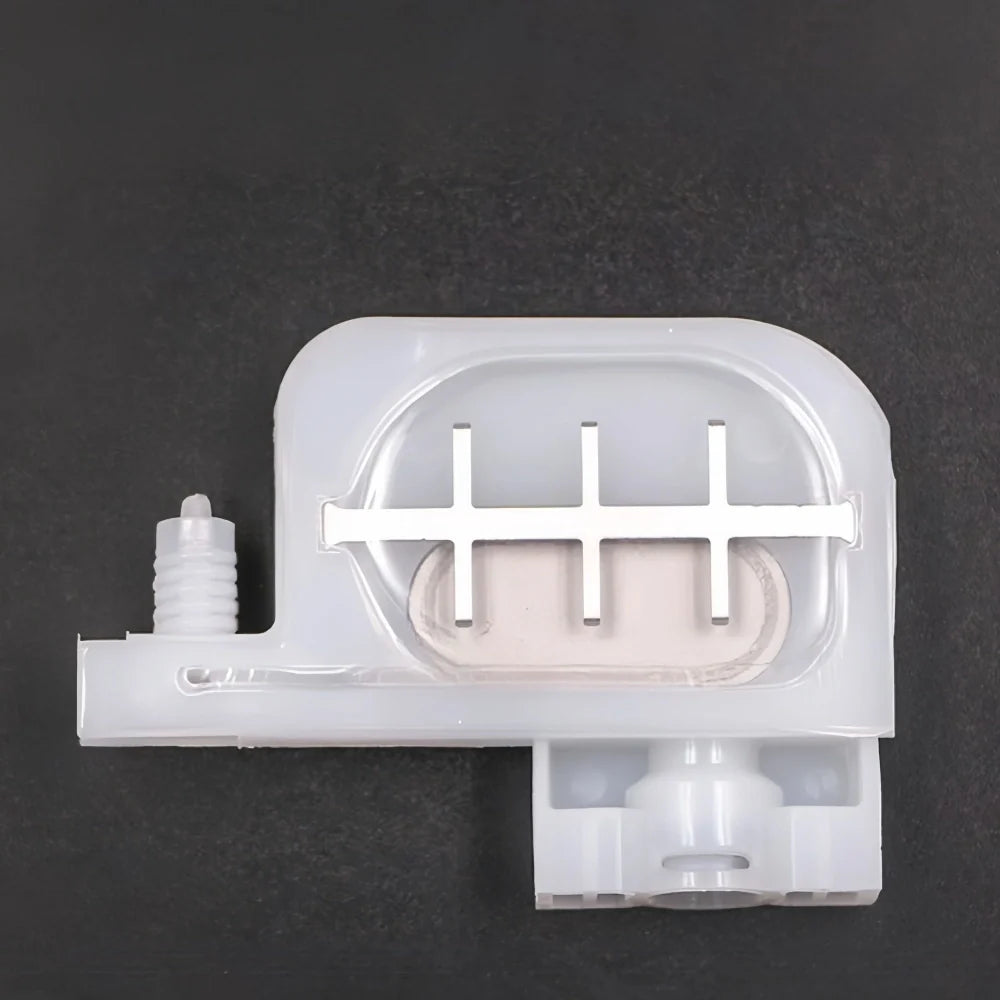

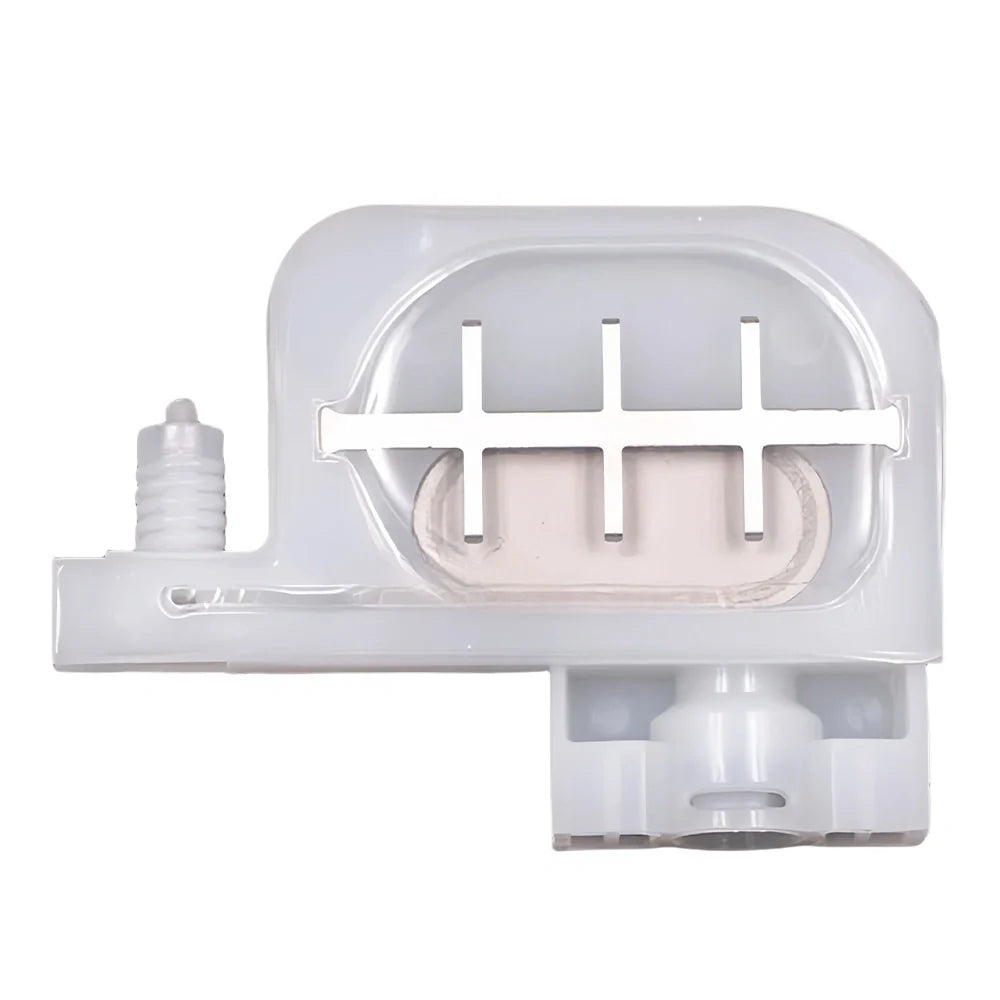

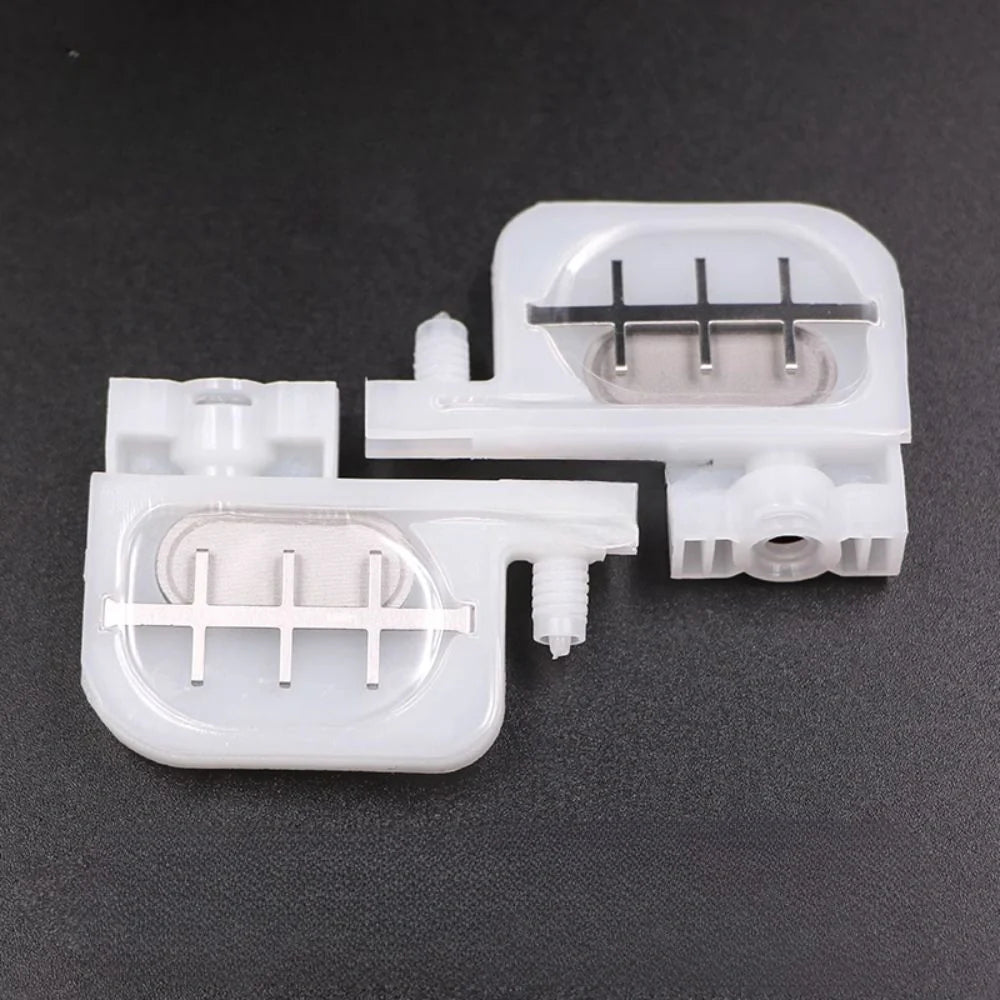

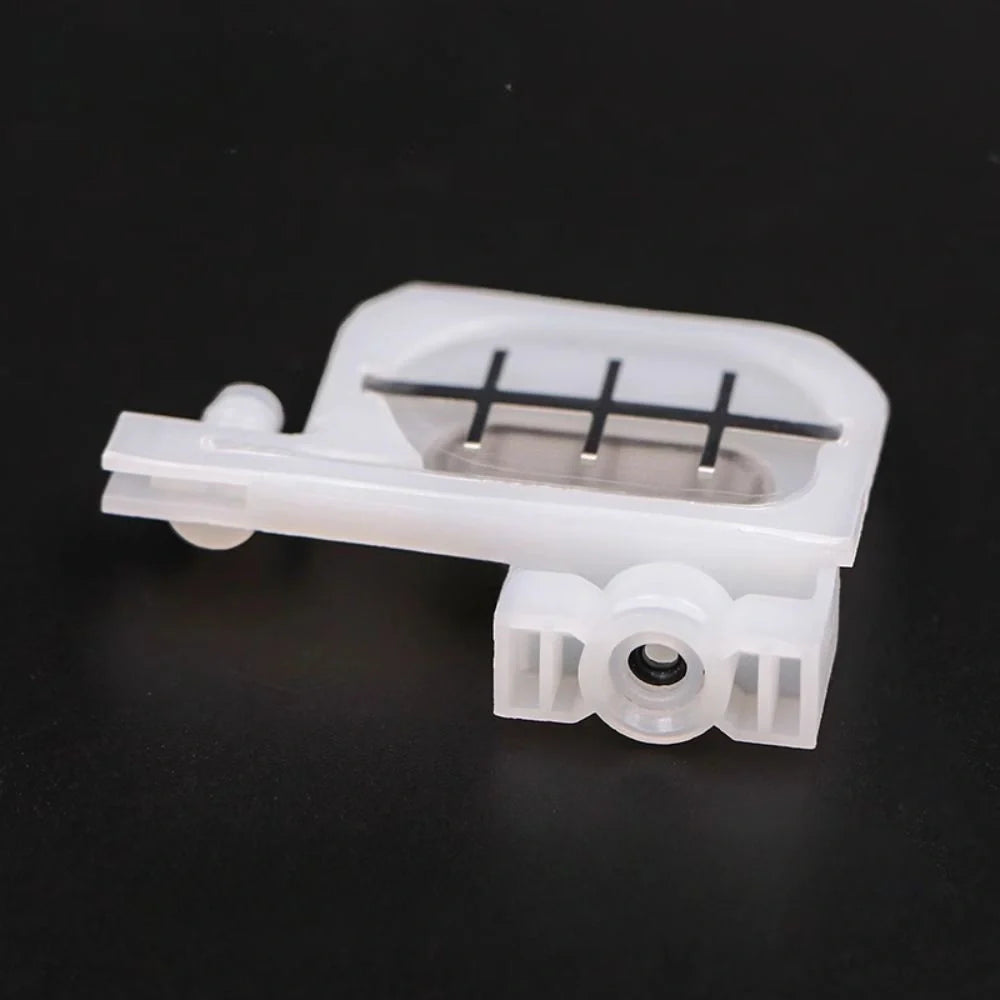

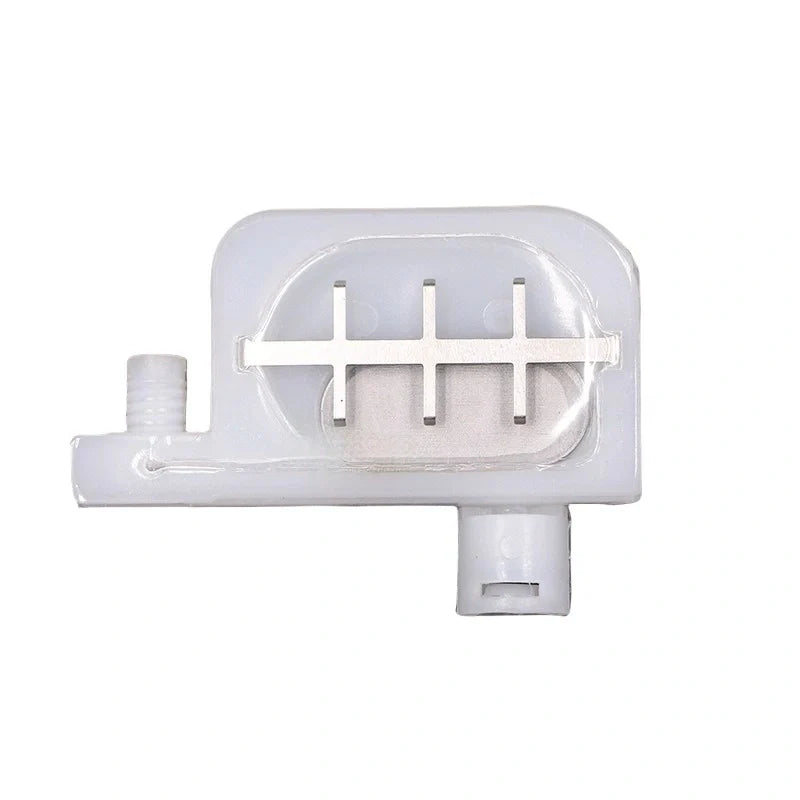

| White / Square Port | White | Square | Large | Choose if your ink line uses square connector |

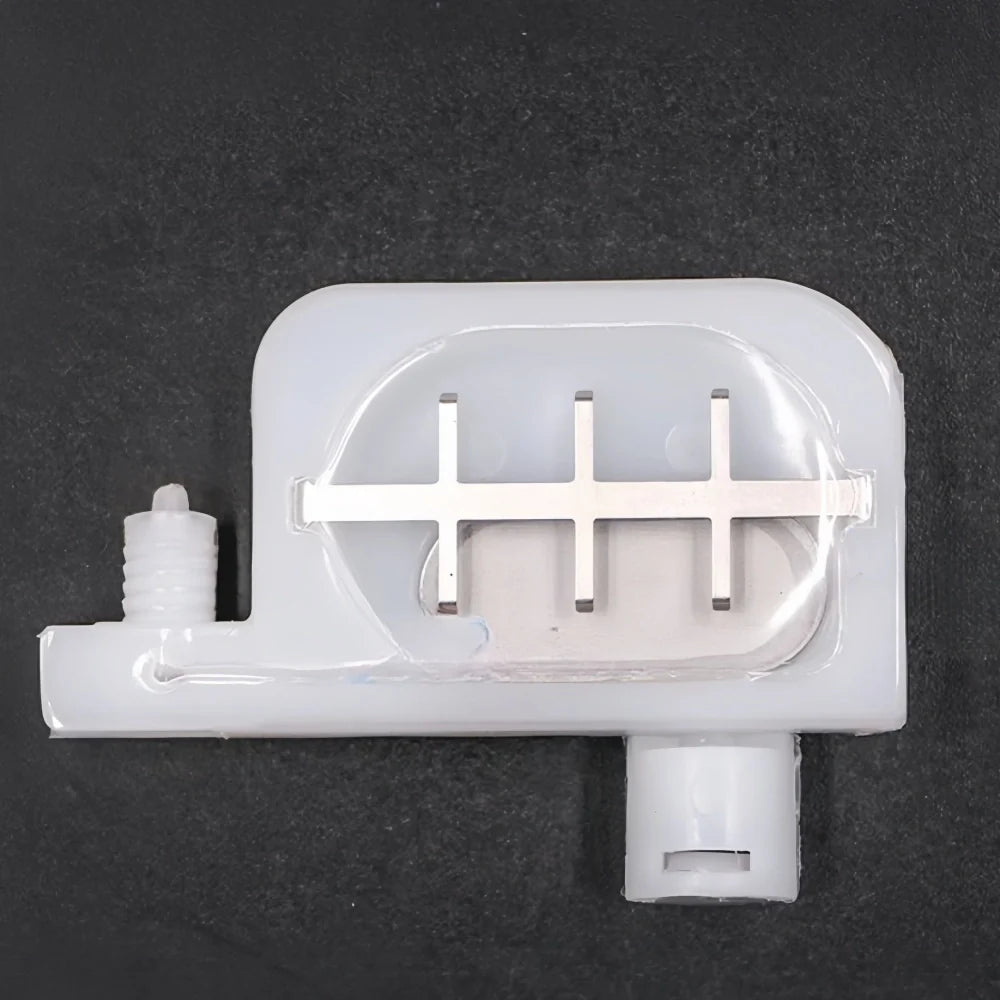

| White / Round Port | White | Round | Large | Common on many L1800 conversions |

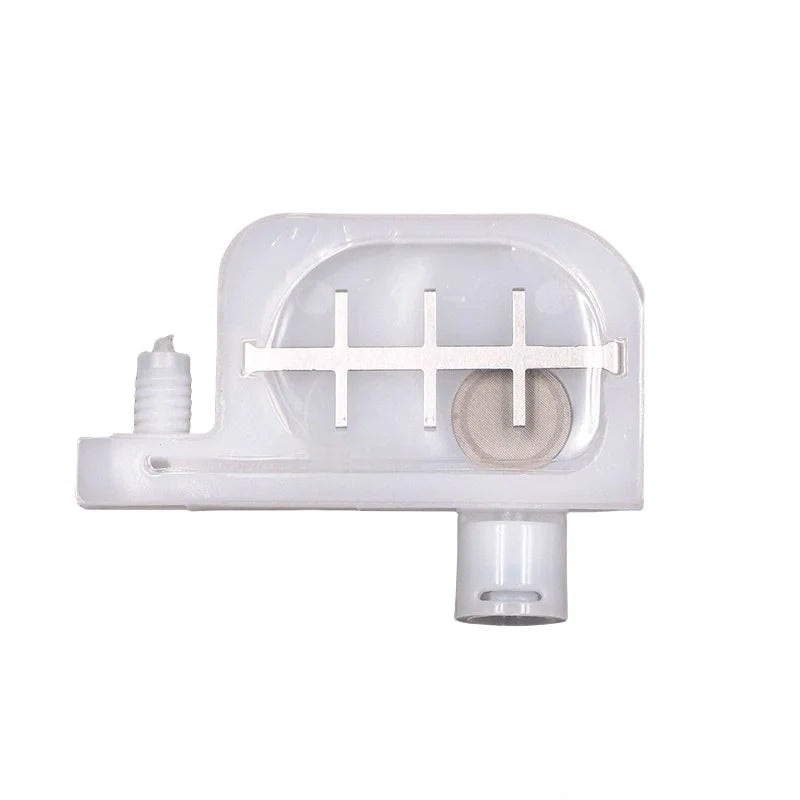

| White / Round Port (Compact) | White | Round | Small | Best when tubing space is tight |

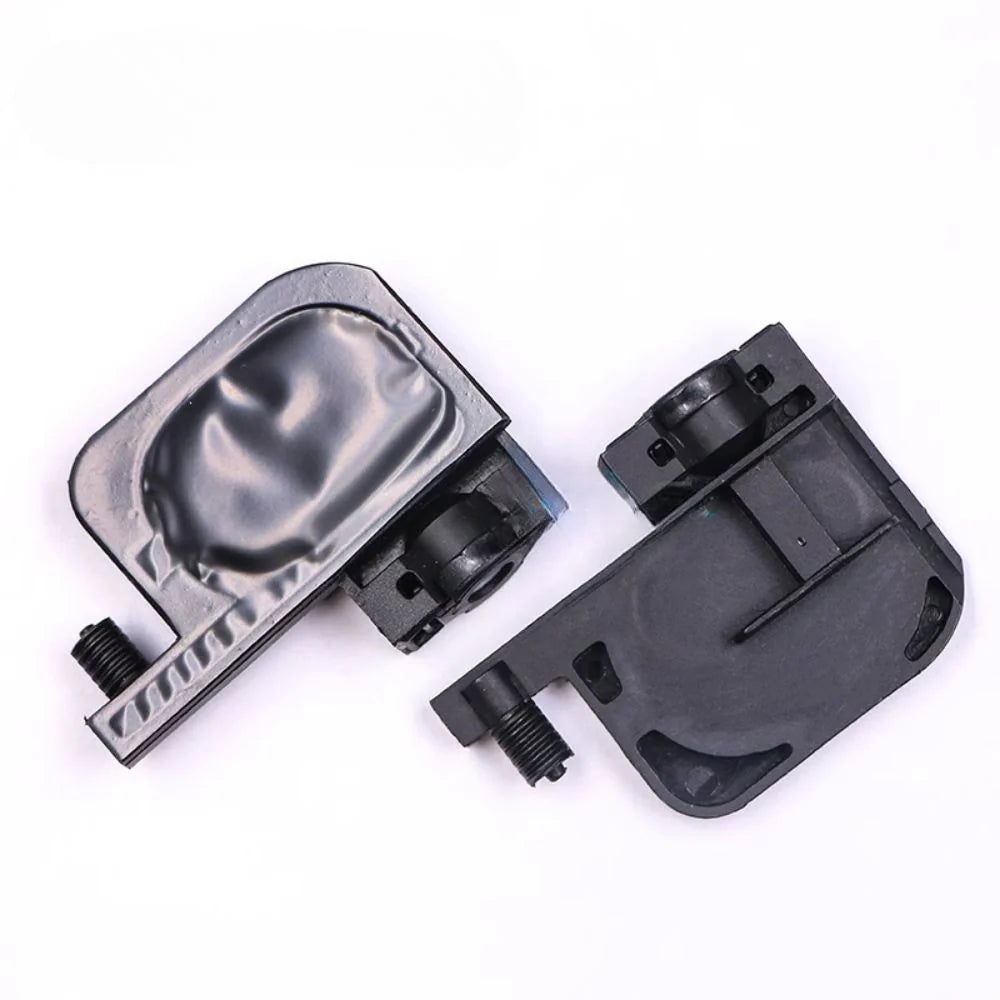

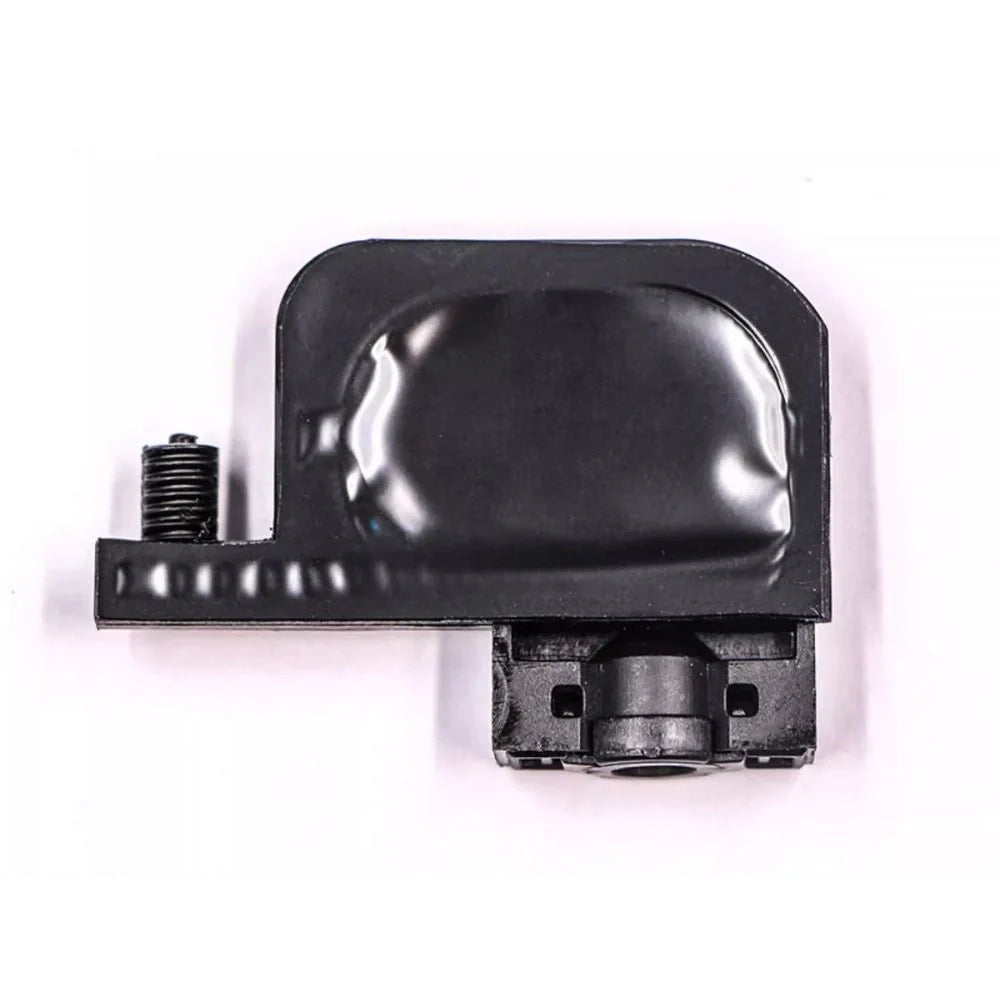

| Black / Square Port | Black | Square | Standard | Standard replacement option |

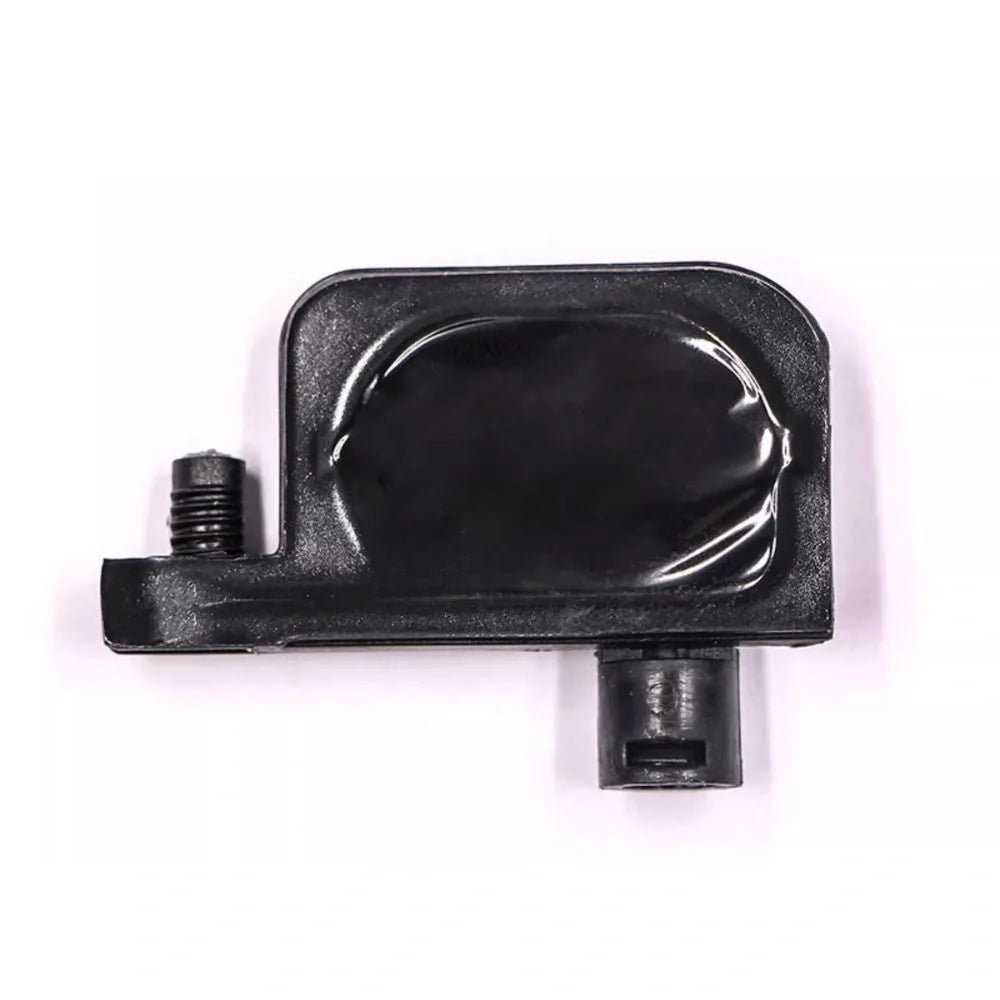

| Black / Round Port | Black | Round | Standard | Standard replacement option |

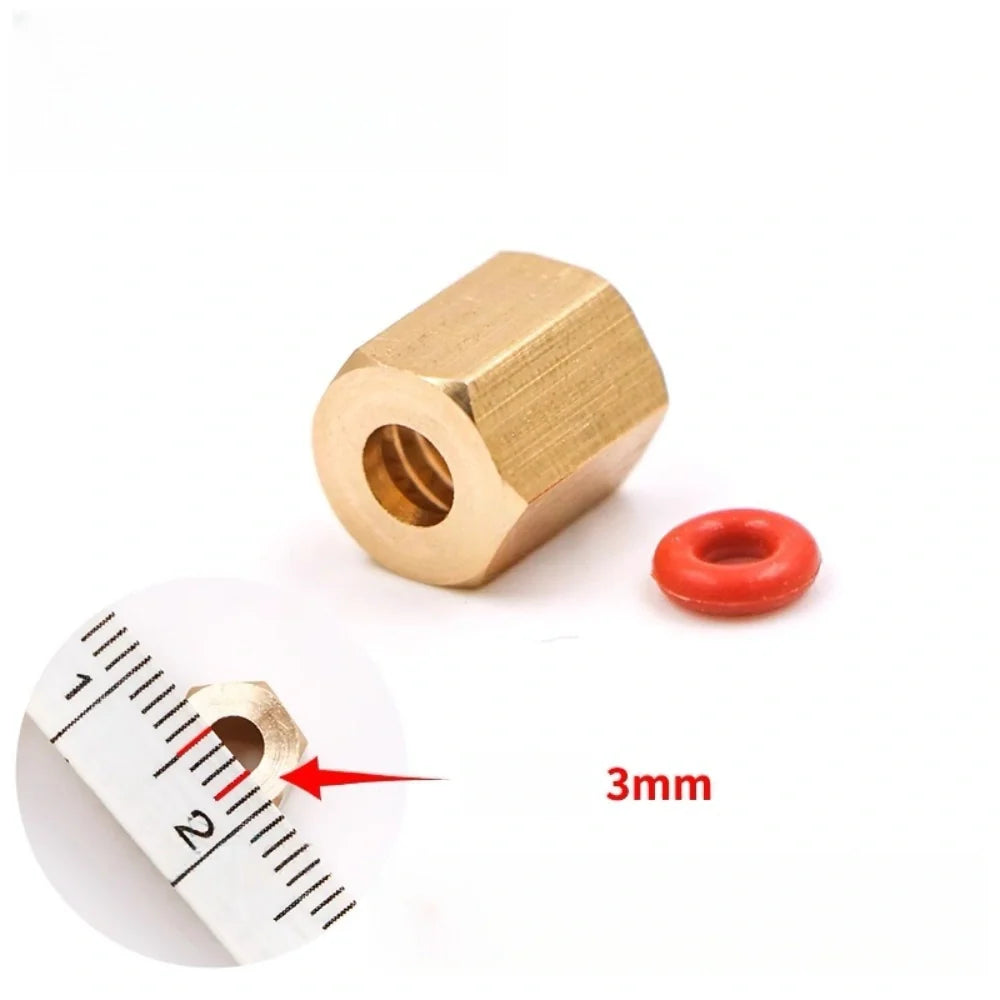

| Brass Nut + Rubber Ring | — | Connector Kit | — | Use for better sealing & leak prevention |
Common Symptoms a New Damper Can Fix
- Nozzle check shows random missing lines that return and disappear
- Banding on solid colors even after cleaning
- Ink line shows micro-bubbles or unstable ink flow
- Color shift during long prints
Installation Notes
- Match port type (square/round) before installing.
- After replacement, run ink prime/cleaning once, then perform a nozzle test.
- If you use a connector kit, ensure the rubber ring sits flat to avoid air leaks.
Service Interval
For best performance, replace the damper as preventive maintenance every 3–6 months depending on ink cleanliness and workload.
