JSZ3A-F AC220V Time Delay Relay with Socket Base
SKU:
Relay - 007
- $18.30
- $18.30
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

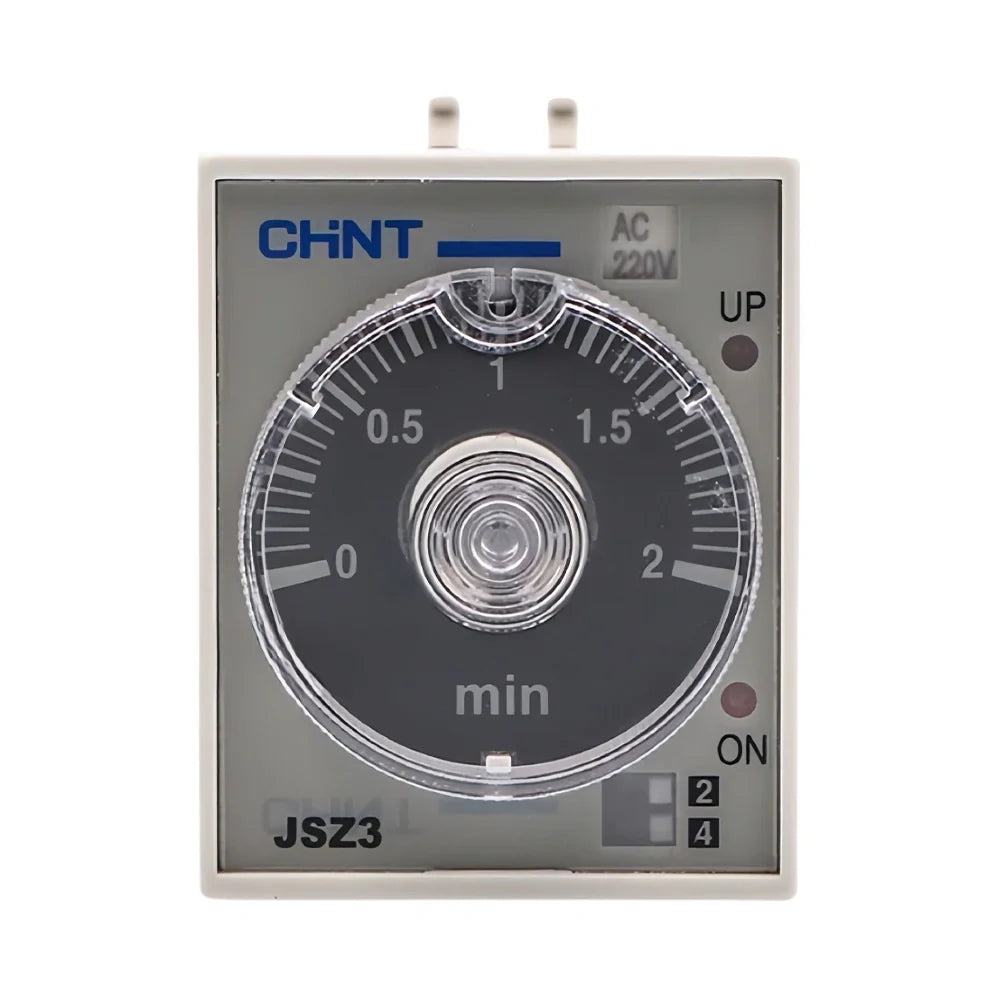

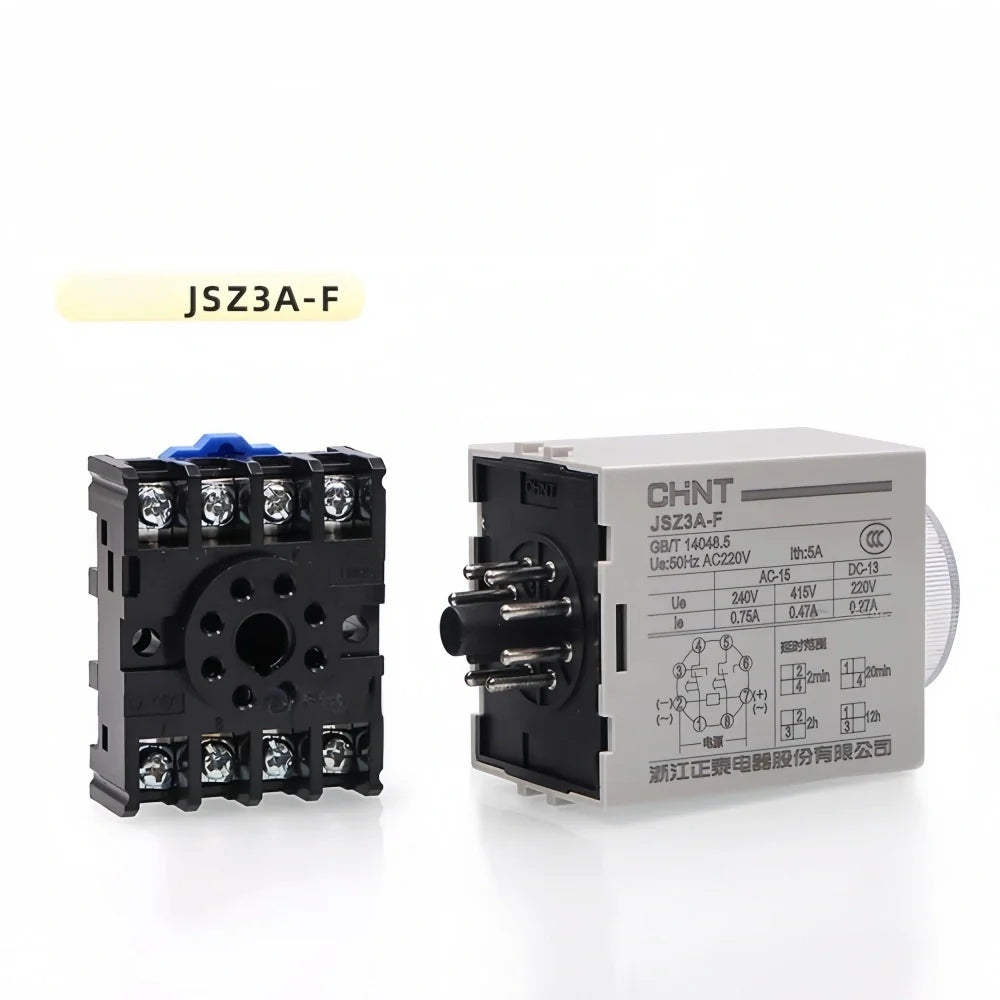

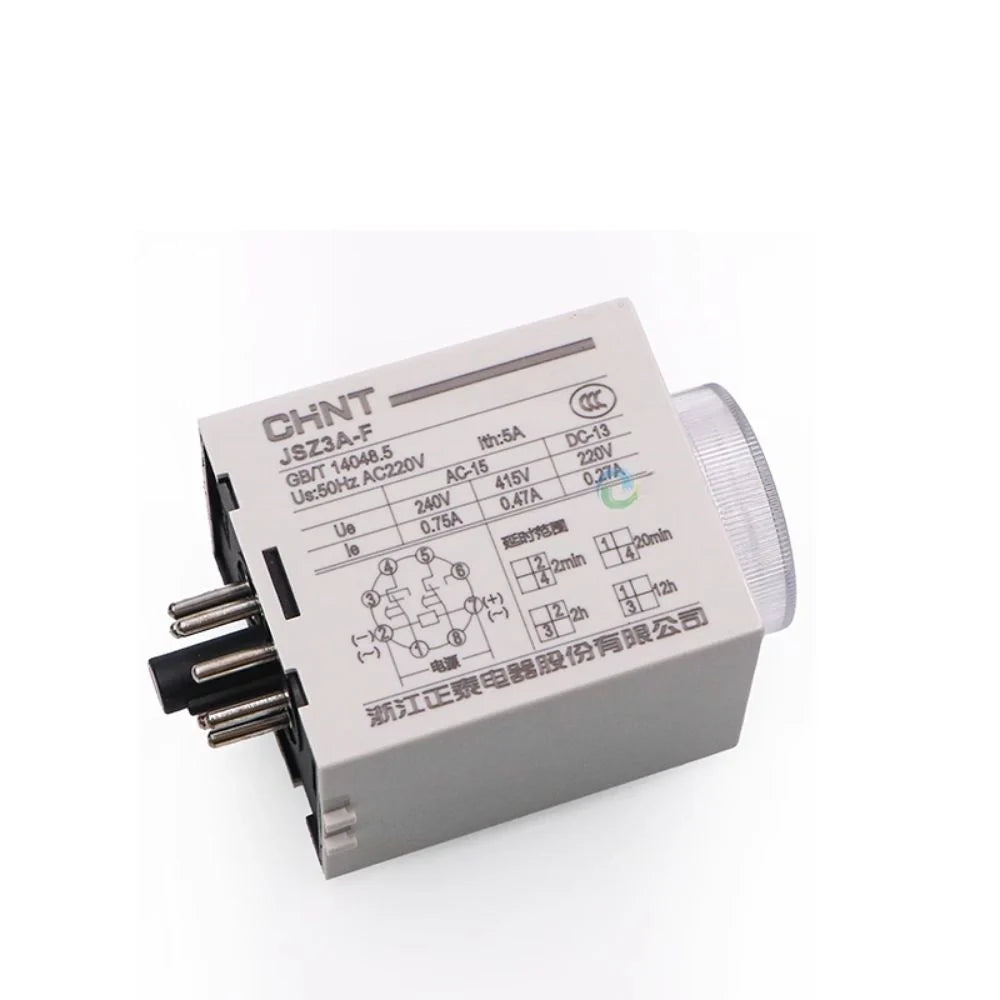

xThe JSZ3A-F time delay relay is designed for time-controlled switching in industrial automation and printing equipment. Operating on AC 220V, it provides a reliable power-on delay function with adjustable timing ranges suitable for a wide variety of control applications.
Featuring a clear dial interface and LED status indicator, the relay allows easy timing adjustment and visual operation feedback. The durable 8-pin relay structure ensures stable electrical contact, while the included DIN socket base enables quick installation and convenient replacement.
With a rated contact capacity of up to 5A, the JSZ3A-F relay is suitable for controlling motors, heaters, solenoid valves, and other industrial loads commonly found in inkjet printers, UV flatbed printers, and textile machinery.
Key Specifications
- Model: JSZ3A-F
- Rated Voltage: AC 220V
- Frequency: 50Hz
- Contact Capacity: 5A (AC-15 / DC-13)
- Timing Function: Power-on delay
- Delay Range: Adjustable (varies by setting, up to hours)
- Output Type: SPDT (Single-Pole Double-Throw)

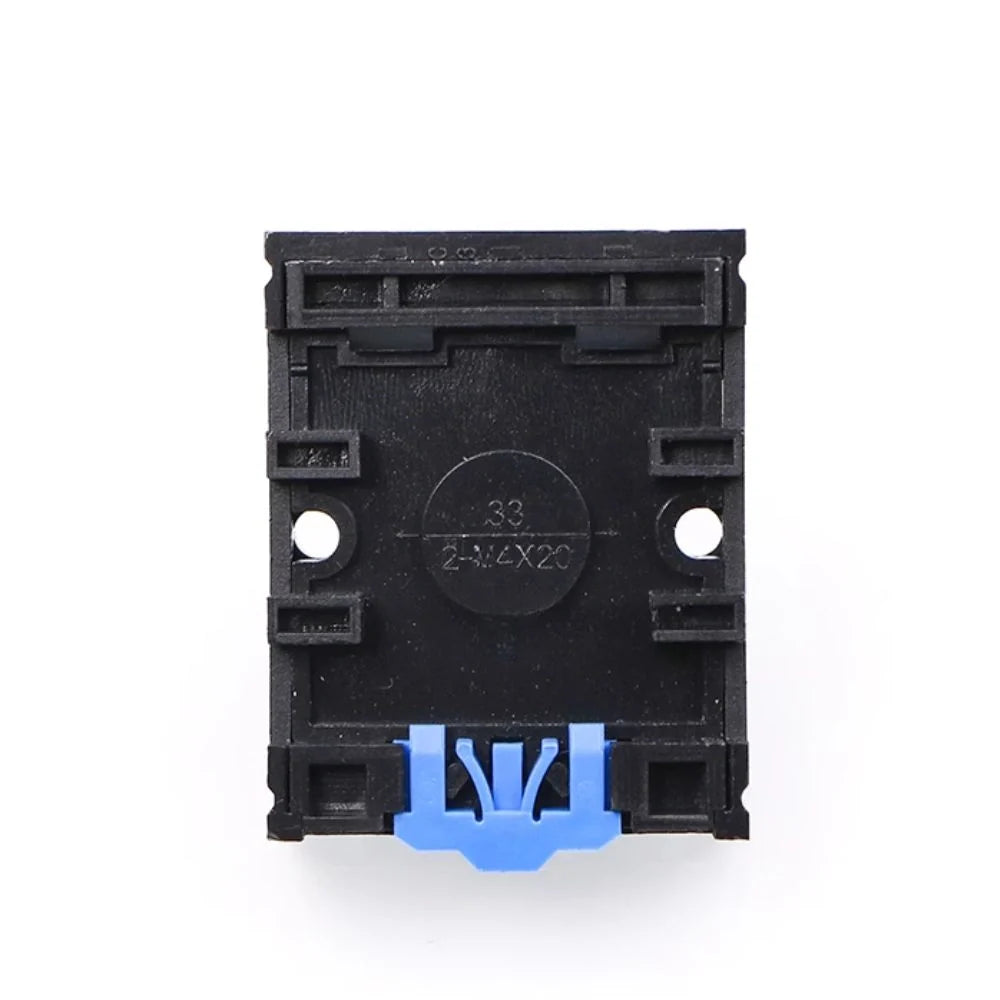

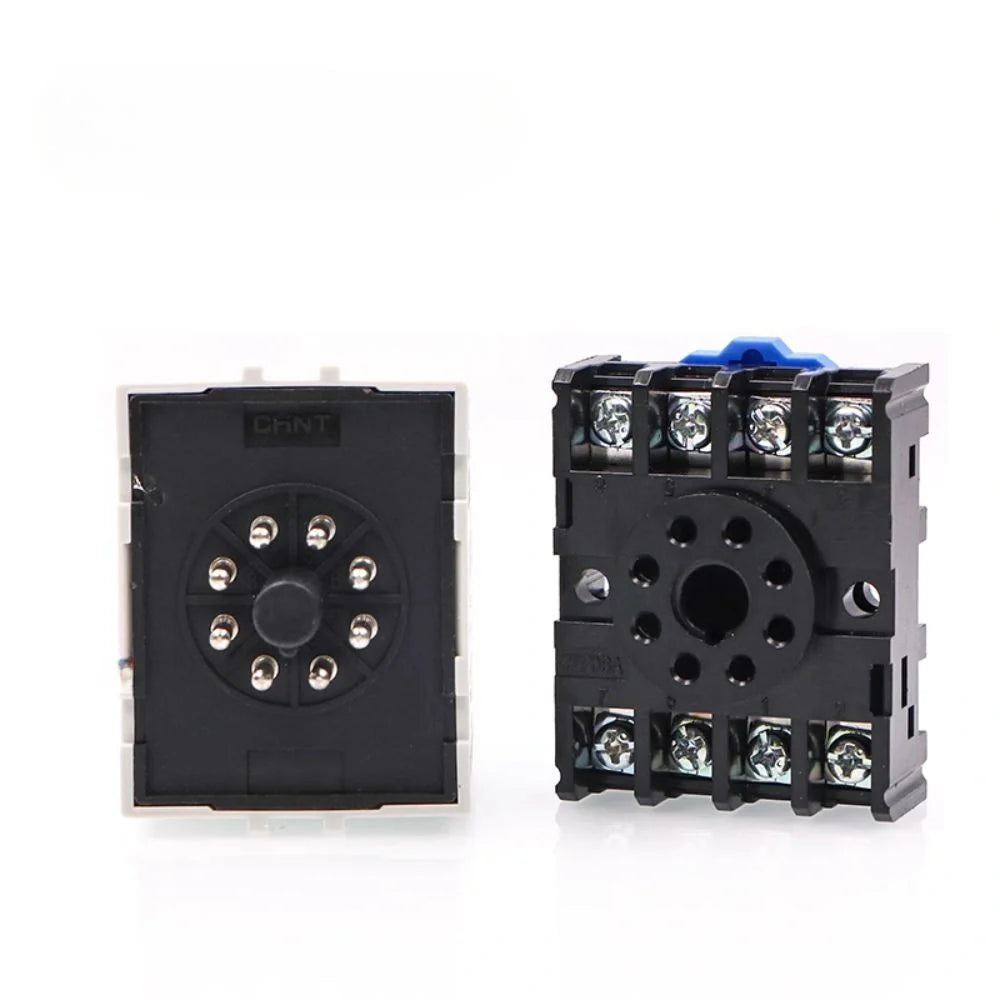

- Base Type: 8-pin DIN socket (included)
Applications
- Inkjet printers and UV flatbed printers
- Textile printing and processing machines
- Industrial control panels
- Automation and timing control systems
Please confirm voltage and timing range requirements before installation to ensure proper compatibility with your control system.
