JYY(B)-Y-20-II-03-YS-FF Ink Circulation Pump
SKU:
Ink Pump - 030
- $223.20
- $223.20
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

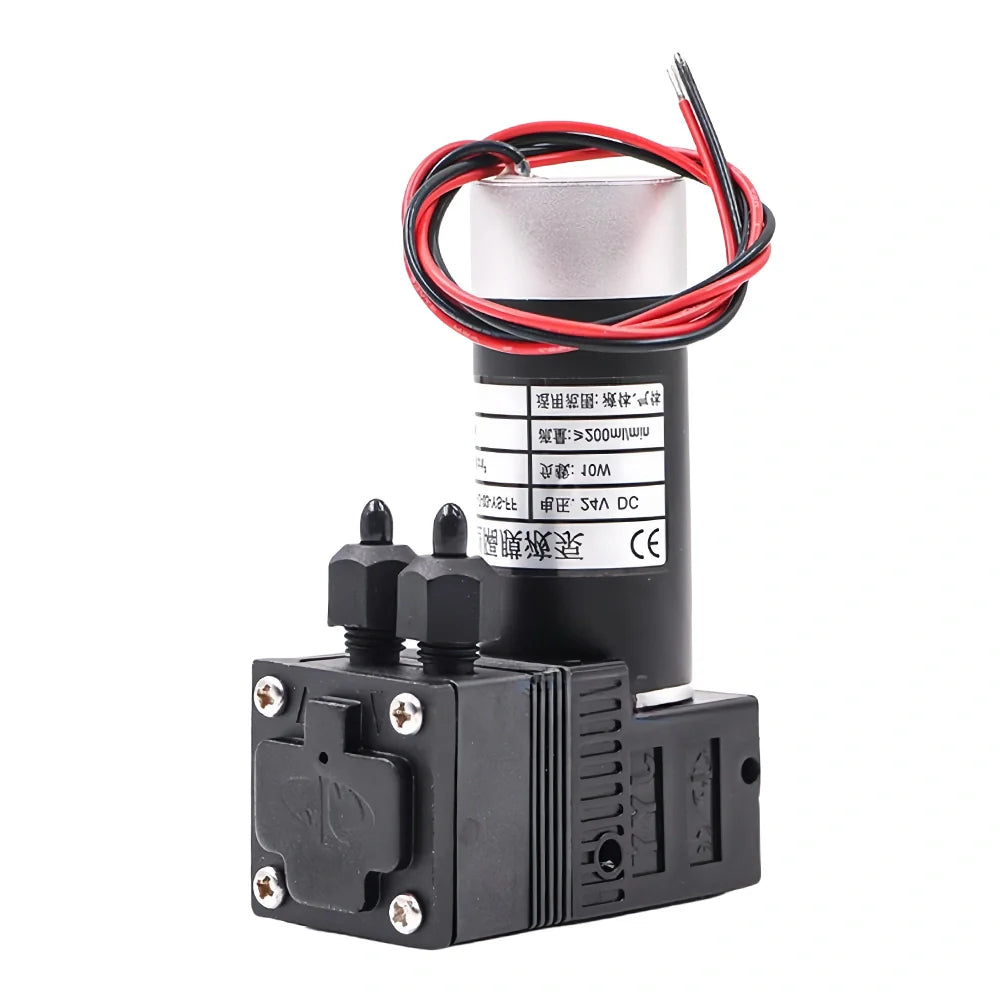

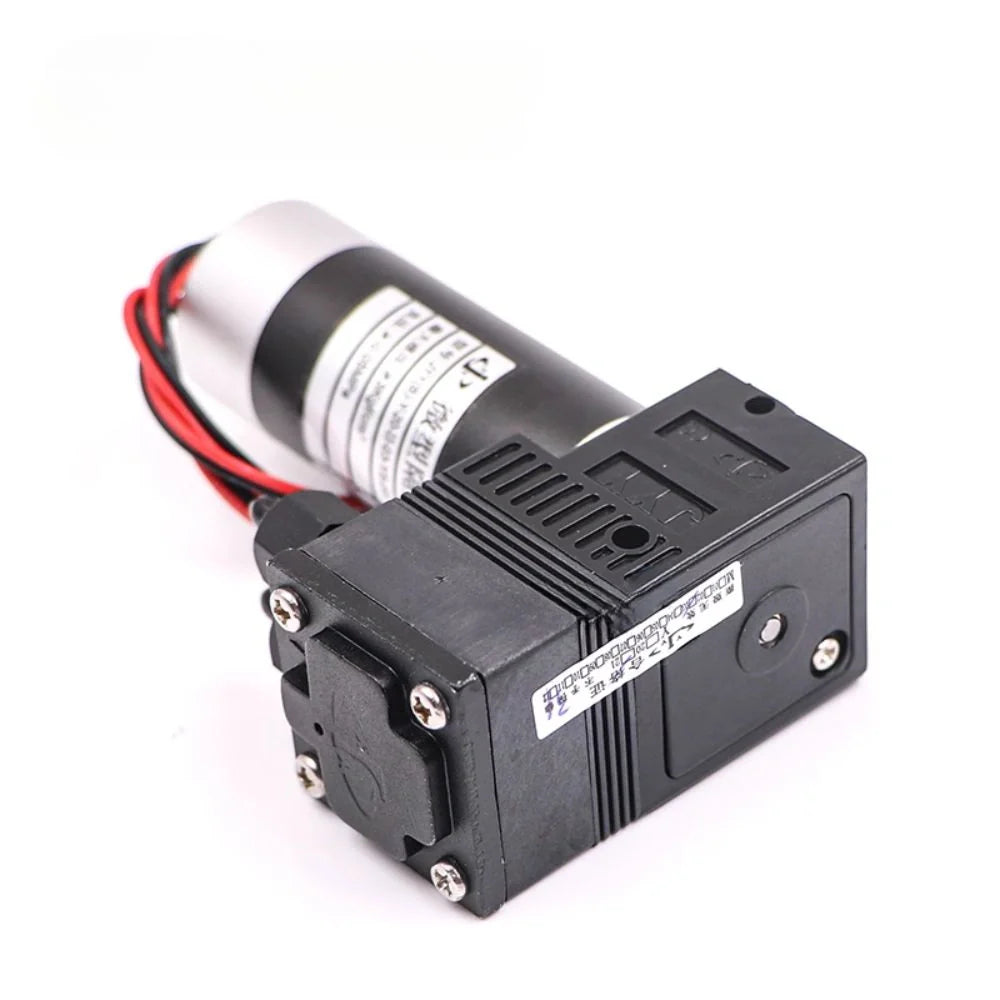

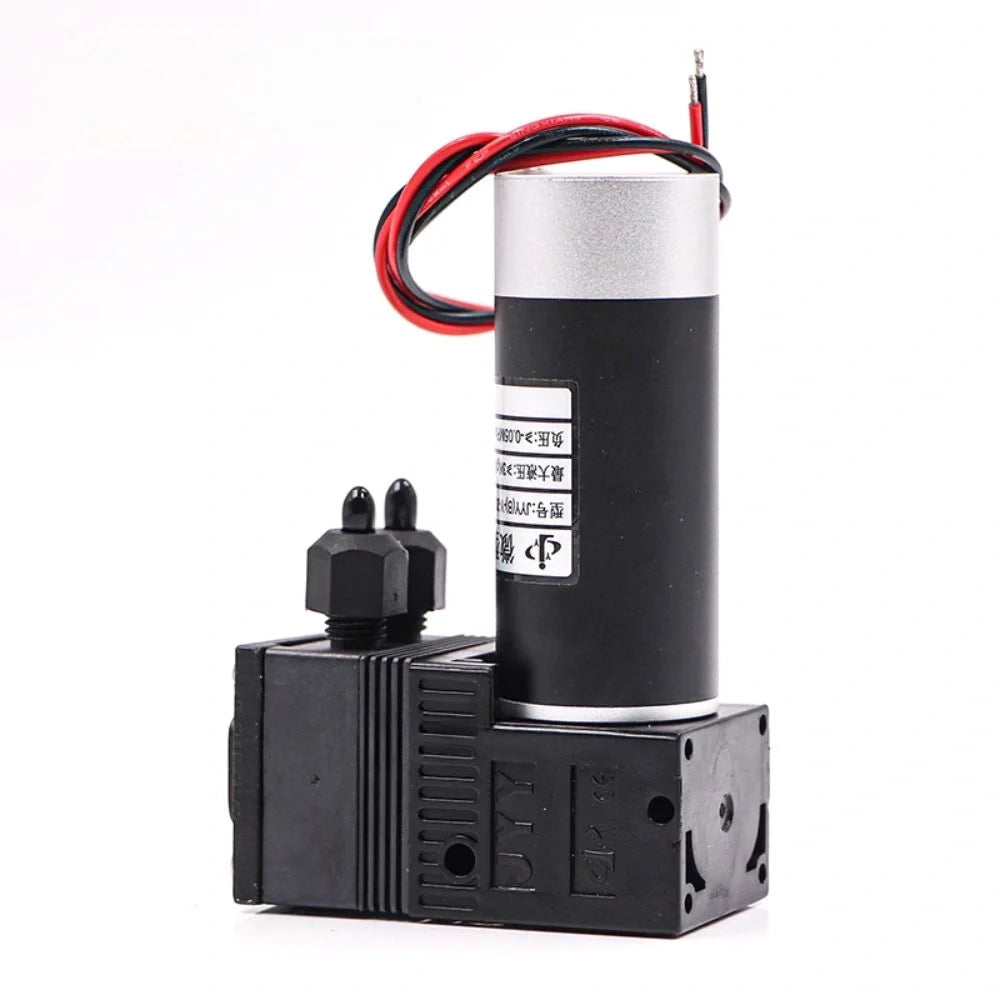

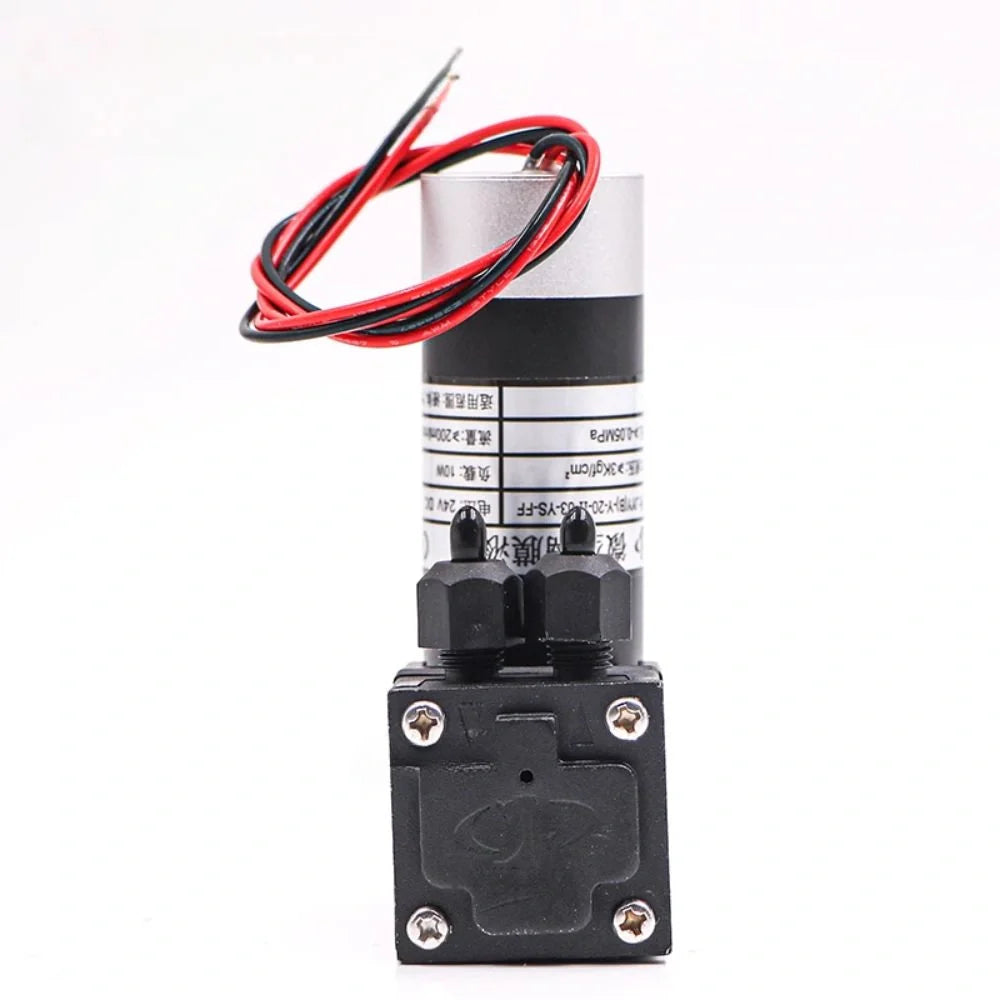

xThe JYY(B)-Y-20-II-03-YS-FF is an industrial-grade diaphragm ink circulation pump engineered for UV printers, ceramic printing systems, and high-demand coding equipment. It provides stable flow and pressure control for inks that require continuous movement to prevent settling or blockage.
With a DC 24V power supply and 10W output, this pump delivers ≥200 ml/min flow while maintaining pressure levels of ≥3 kgf/cm². Its compact body, reinforced pump head, and dual-port structure allow easy integration into circulation, suction, or exhaust systems.
Performance Overview
| Model | JYY(B)-Y-20-II-03-YS-FF |
| Operating Voltage | 24V DC |
| Power Consumption | 10W |
| Liquid Flow | ≥200 ml/min |
| Pressure Capacity | ≥3 kgf/cm² |
| Compatible Media | UV ink, ceramic ink, solvent, water, air |
Typical Uses
- White ink circulation loops in UV flatbed printers
- Ceramic ink delivery systems
- Ink recovery and suction lines
- Industrial coding and marking machines
Why Choose This Model
- Designed for high-viscosity and pigment-heavy inks
- Consistent pressure improves print stability
- Compact design fits embedded printer layouts
- Reliable performance for continuous-duty operation
