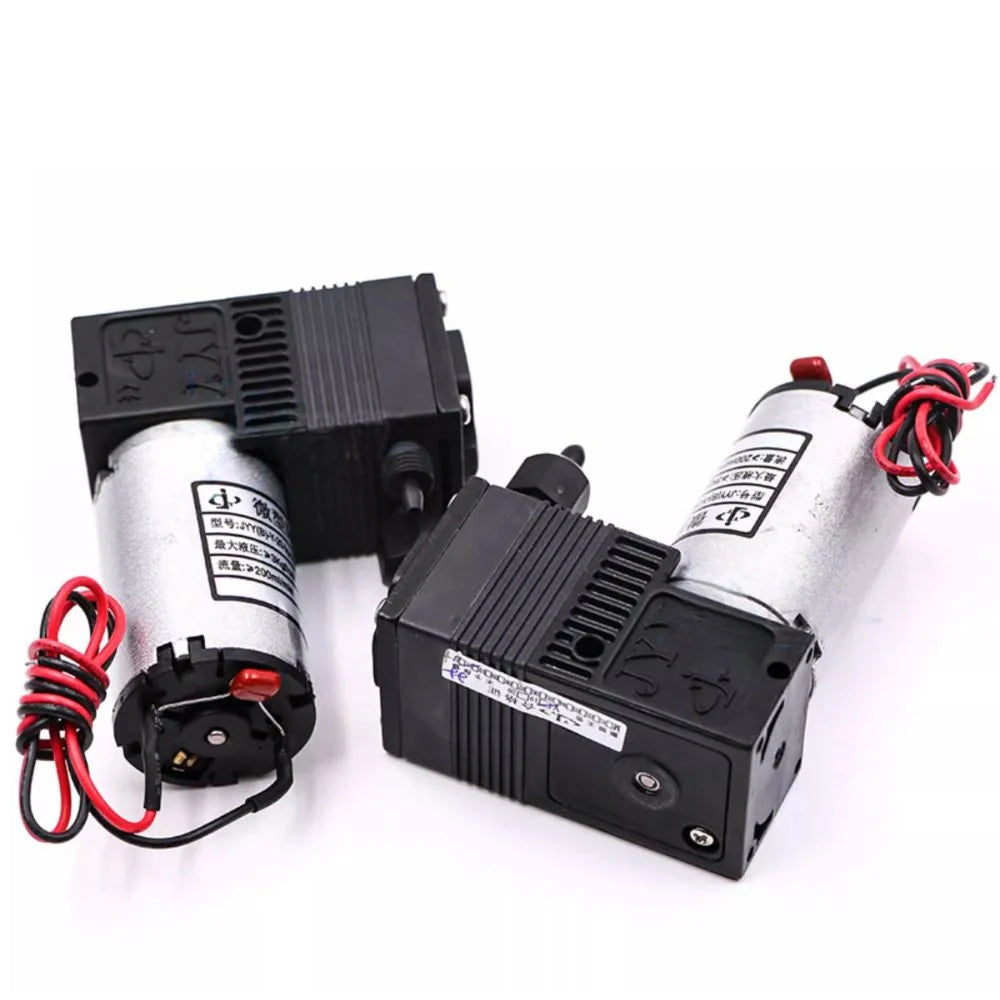

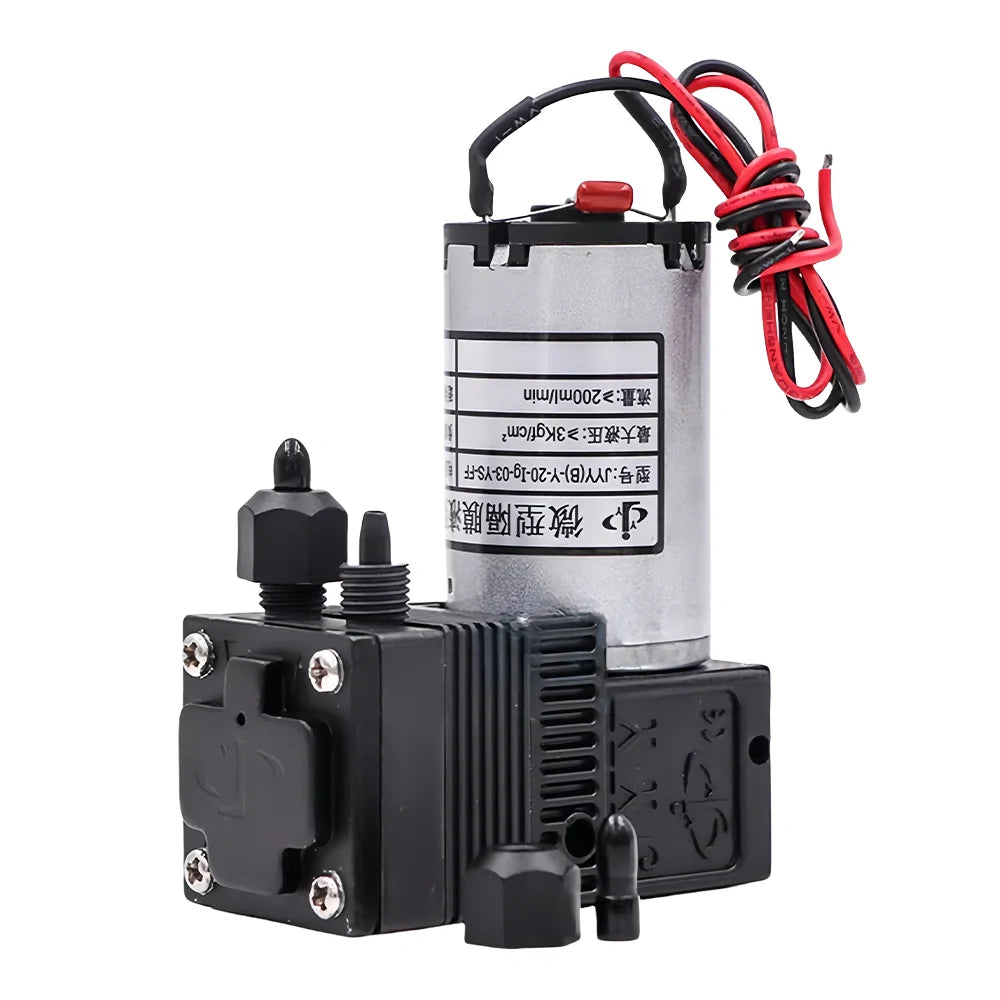

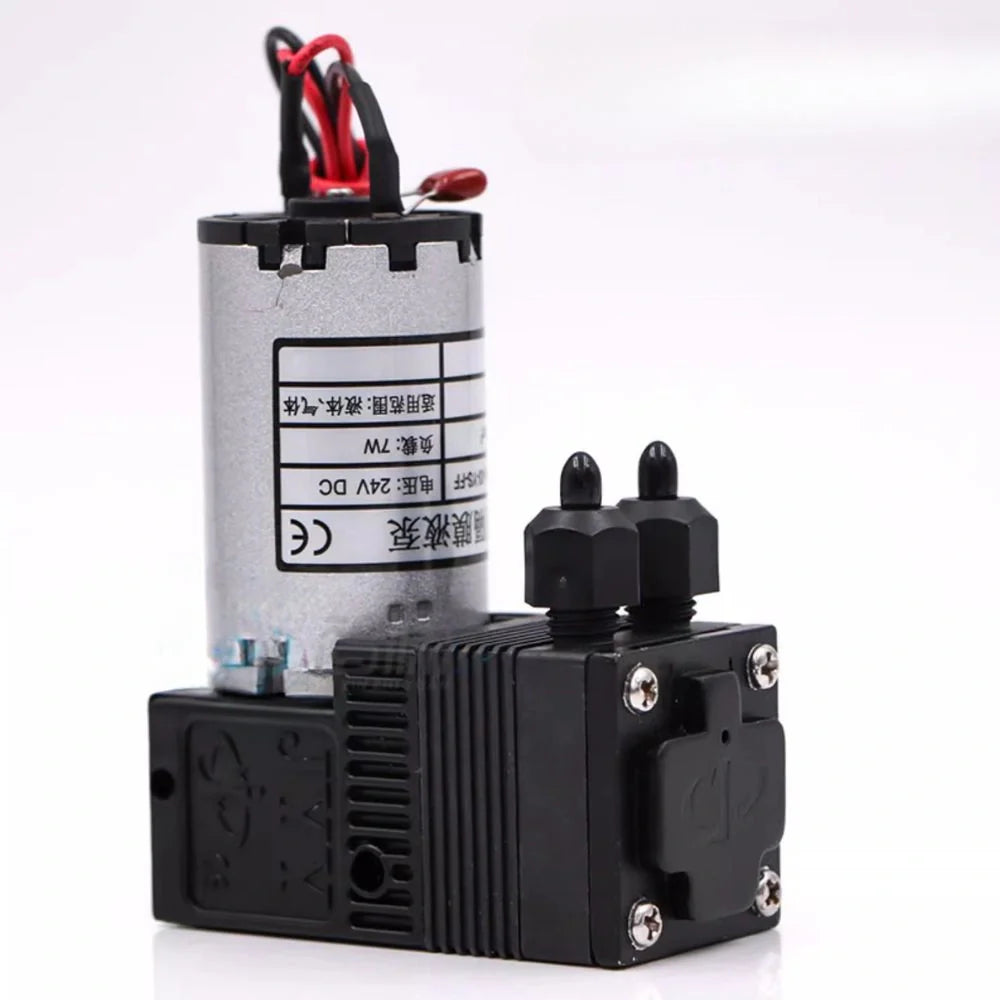

JYY(B)-Y-20-lg-03-YS-FF Diaphragm Pump
SKU:
Ink Pump - 029
- $95.20
- $95.20
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description
xThe JYY(B)-Y-20-lg-03-YS-FF diaphragm pump is engineered for precision ink delivery in UV printing systems that operate with high-viscosity or pigment-heavy inks. Powered by a 24V DC motor with 7W output, this pump provides reliable pressure and smooth ink circulation for demanding industrial applications.
Designed specifically for UV white ink and similar dense media, the pump maintains consistent internal pressure to keep pigments evenly suspended. This helps improve print stability, extend printhead life, and reduce maintenance frequency in continuous production environments.
Its sealed diaphragm mechanism and corrosion-resistant internal materials allow the pump to operate with UV inks, solvent inks, water-based inks, and air. The dual inlet and outlet structure supports both circulation and suction functions, making it suitable for multiple ink system configurations.
Specifications
| Model | JYY(B)-Y-20-lg-03-YS-FF |
| Operating Voltage | 24V DC |
| Power Consumption | 7W |
| Rated Flow | ≥200ml/min |
| Maximum Pressure | ≥3kgf/cm² |
| Supported Media | UV white ink, solvent ink, water-based ink, air |
Typical Uses
- White ink circulation for UV flatbed printers
- Inkjet printer pressure systems
- Industrial coding and marking equipment
- Ink recovery and suction systems
Key Advantages
- Designed for high-pressure ink delivery
- Excellent compatibility with UV white ink
- Stable output for continuous operation
- Durable construction for industrial environments
- Easy integration into existing ink systems
