MP-E300541 - Compatible Mimaki HDC FPC 160 Assy
SKU:
MP-E300541
- $49.00
- $49.00
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description
xProduct Overview

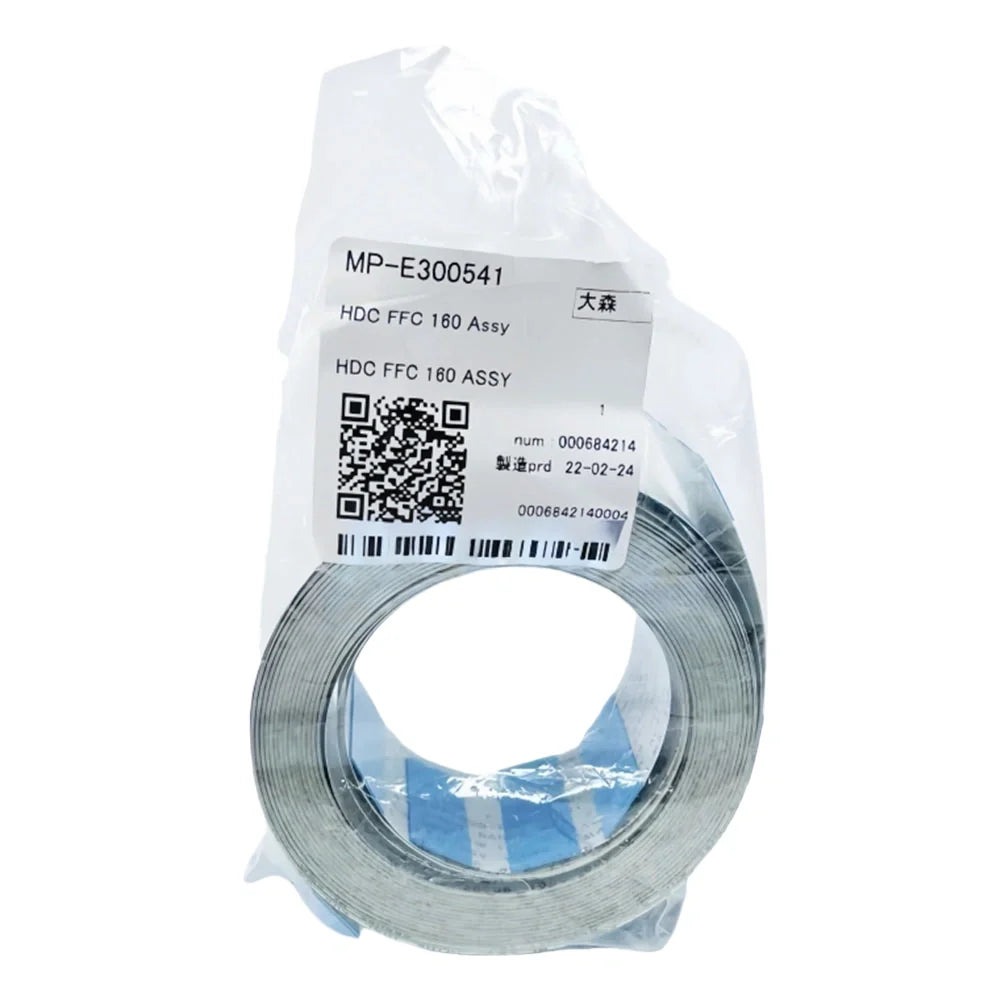

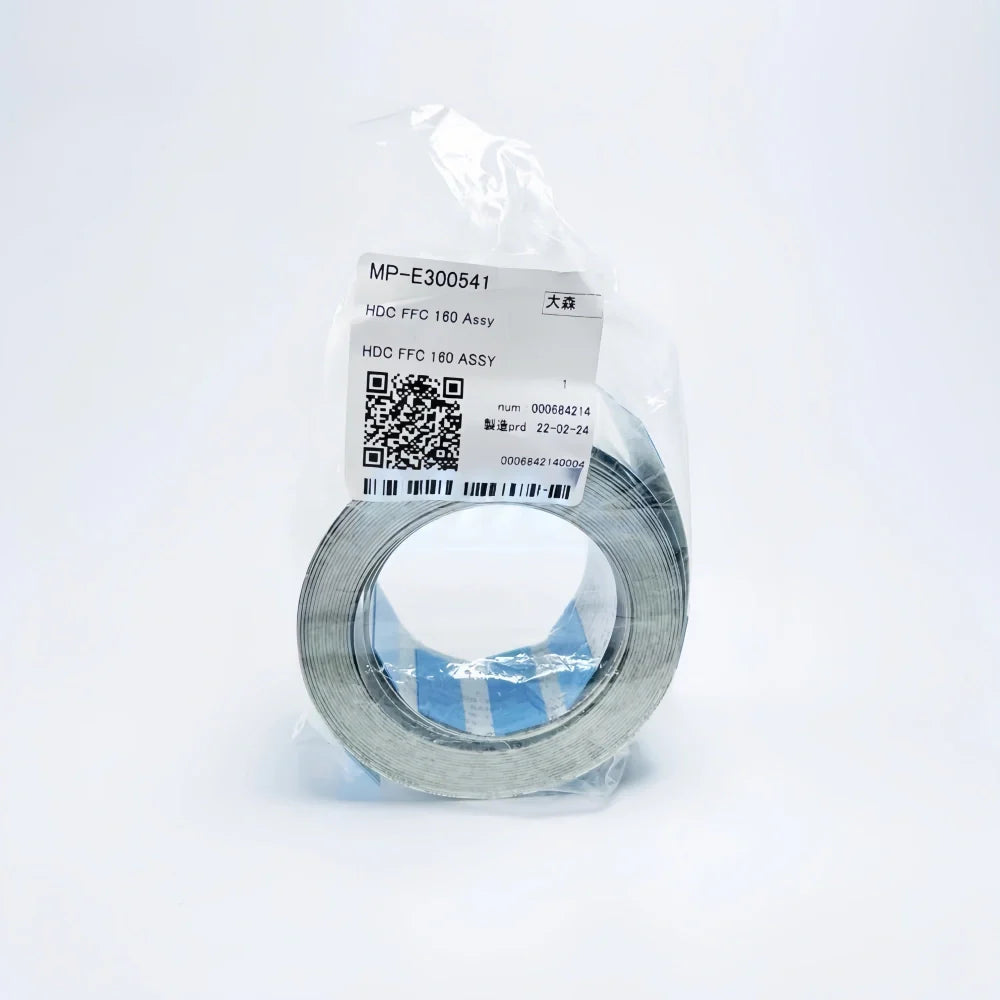

This compatible HDC FPC 160 cable assembly is designed for selected Mimaki JV33, CJV30 and TS3 printers. The complete set contains four carriage cables used to connect the slider board to the main board.
Before ordering, compare the part number, printer model, cable dimensions, pin count and connector orientation with the cables currently installed in your printer.
Part Numbers
Cross-reference part numbers: E300541 / E300728
Both part numbers are associated with this HDC FPC 160 cable assembly. Always confirm the number shown in your printer’s service documentation or on the existing part before purchase.
What Is Included

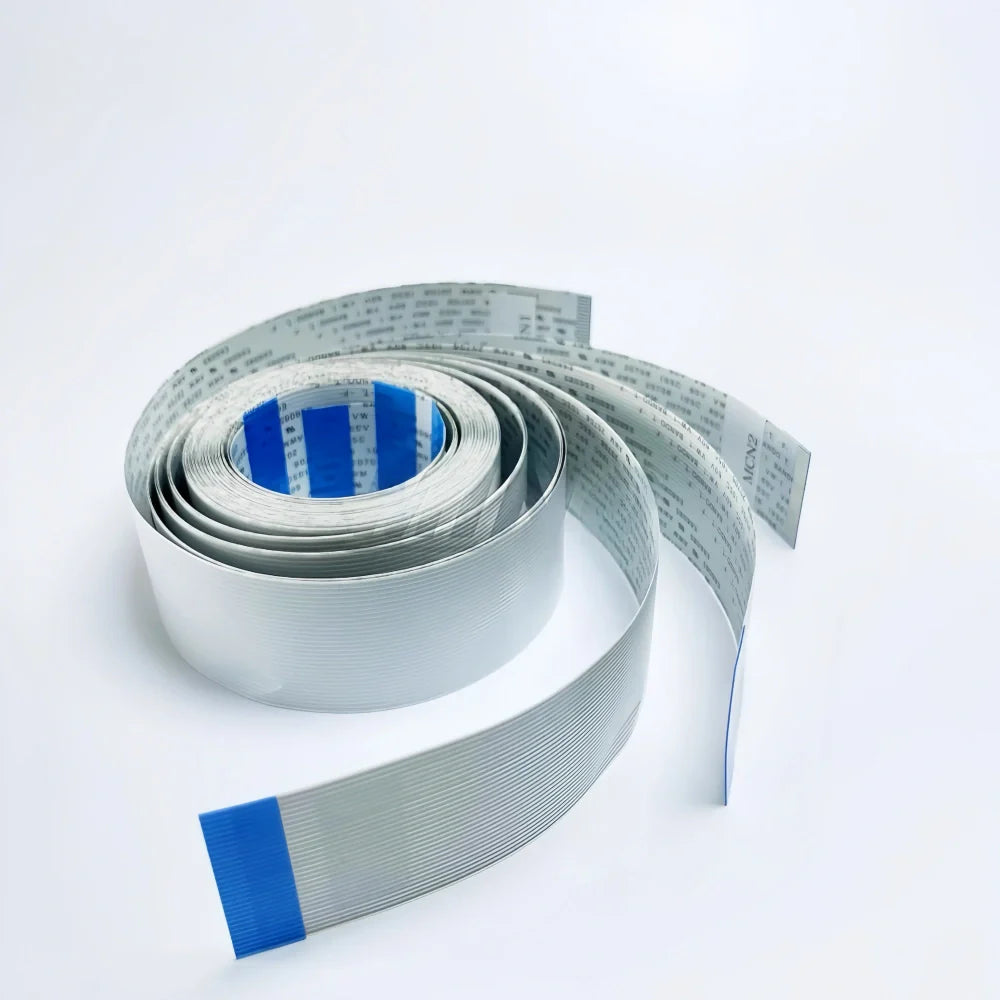

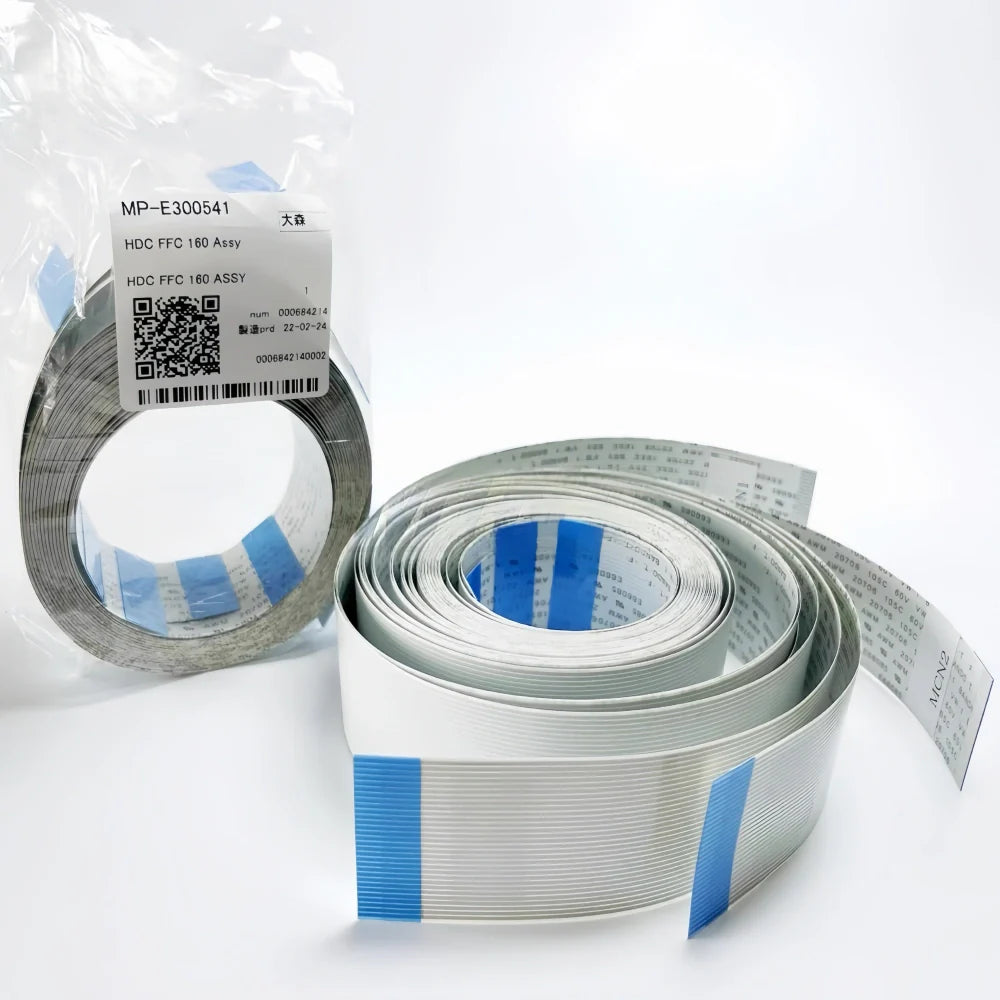

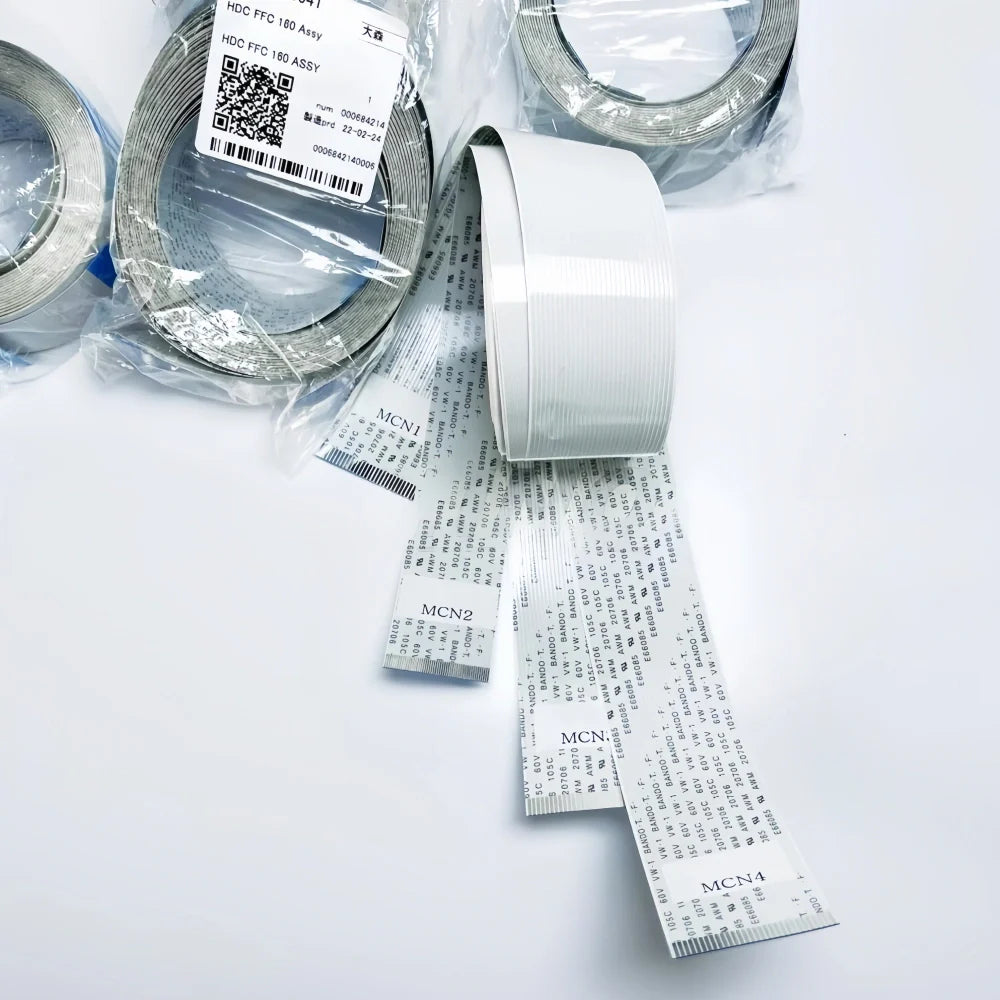

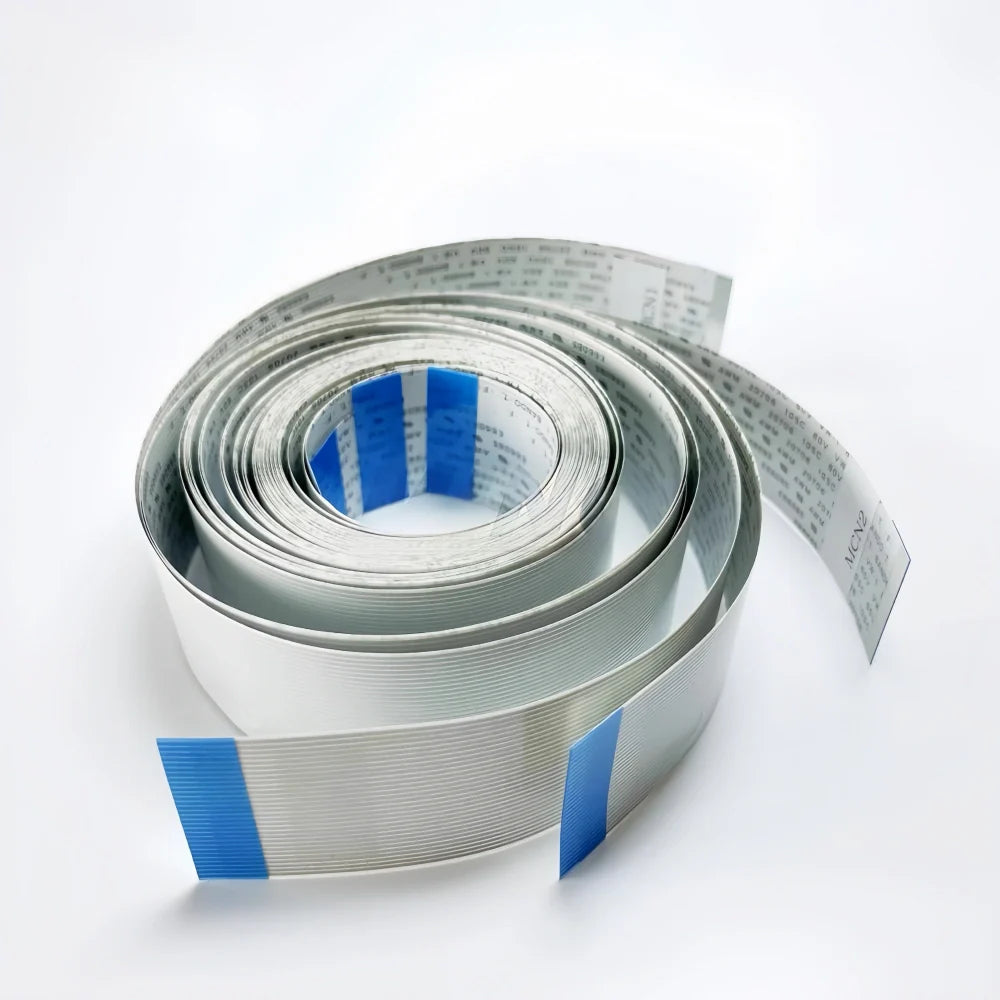

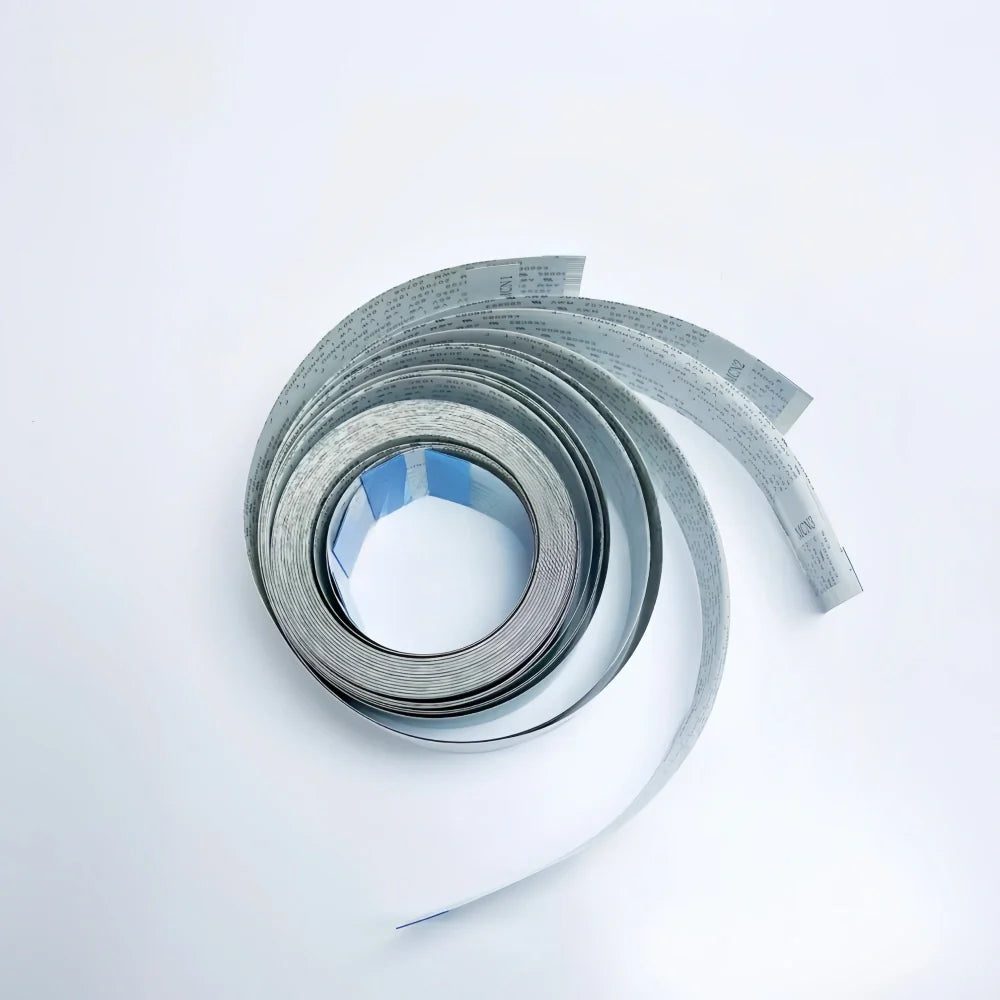

- 3 × 30-pin FPC cables, approximately 3034 mm long and 31 mm wide
- 1 × 50-pin FPC cable, approximately 3034 mm long and 25.5 mm wide
- Total quantity: 4 cables
Compatible Printer Models
- Mimaki CJV30-60 / CJV30-60BS
- Mimaki CJV30-100 / CJV30-100BS
- Mimaki CJV30-130 / CJV30-130BS
- Mimaki CJV30-160 / CJV30-160BS
- Mimaki JV33-130
- Mimaki JV33-160
- Mimaki TS3-1600
Compatibility reminder: Model information is provided as a reference. Cable configuration may vary by printer version, machine width or production revision.
Technical Specifications
| Part Numbers | E300541 / E300728 |
| Product Type | Compatible HDC FPC 160 Cable Assembly |
| Part Category | Carriage Data Cable |
| Set Quantity | 4 cables |
| Pin Configuration | 3 × 30-pin cables and 1 × 50-pin cable |
| Approximate Length | 3034 mm per cable |
| Application | Slider board to main board connection |
Before Ordering
Please confirm the following information before placing your order:
- Exact printer model and machine width
- Part number shown on the existing cable or service manual
- 30-pin and 50-pin cable configuration
- Cable length, width and connector orientation
- Clear photos of the existing cables and connection points
If you are unsure, send us your printer model, old part label and clear photos of the cable connectors for compatibility checking.
Installation Notice
Professional installation is recommended. Switch off and disconnect the printer before installation, follow appropriate anti-static precautions and verify cable direction before seating each connector.
Do not sharply bend, crease or force the FPC cables into a connector. After installation, confirm that every cable is fully seated before powering on the printer.
FAQ
Does the package contain four cables?
Yes. The set includes three 30-pin cables and one 50-pin cable.
Are E300541 and E300728 associated with the same cable assembly?
They are commonly used as cross-reference numbers for this HDC FPC 160 cable set. Confirm the applicable number using your printer’s service documentation and existing cable configuration.
Will this cable set fit every Mimaki JV33 or CJV30 printer?
Not necessarily. Compatibility can vary by printer model, machine width and production revision, so the cable dimensions and pin configuration must also match.
What should I send if I am unsure about compatibility?
Send the printer model, old part number, cable dimensions and clear photos showing both ends of each installed cable.
