Description

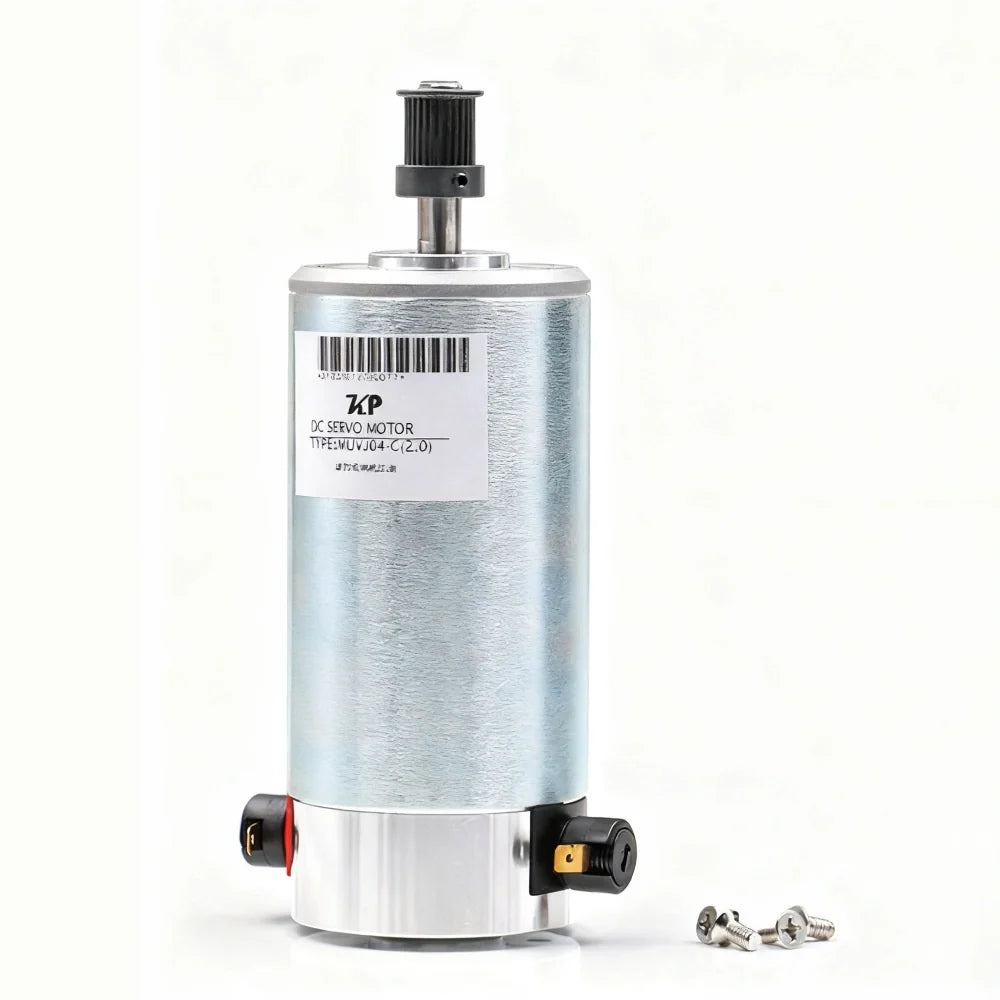

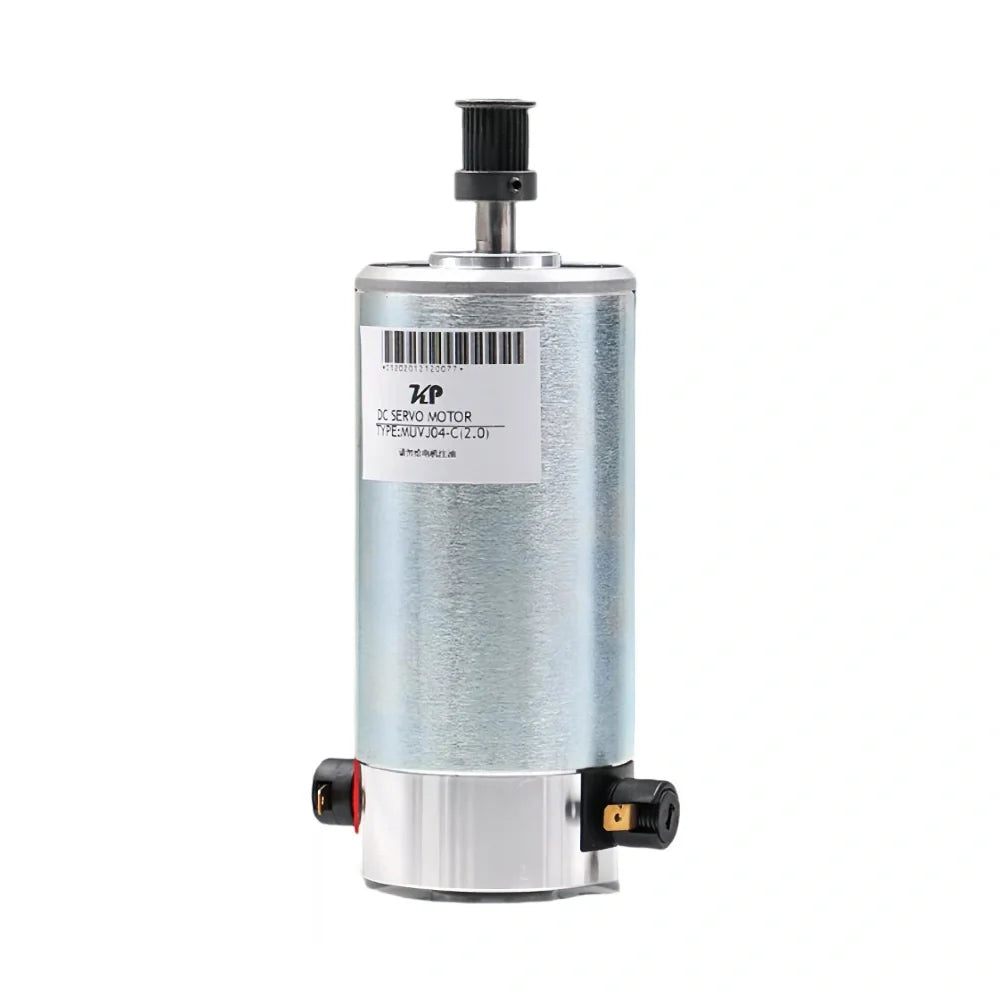

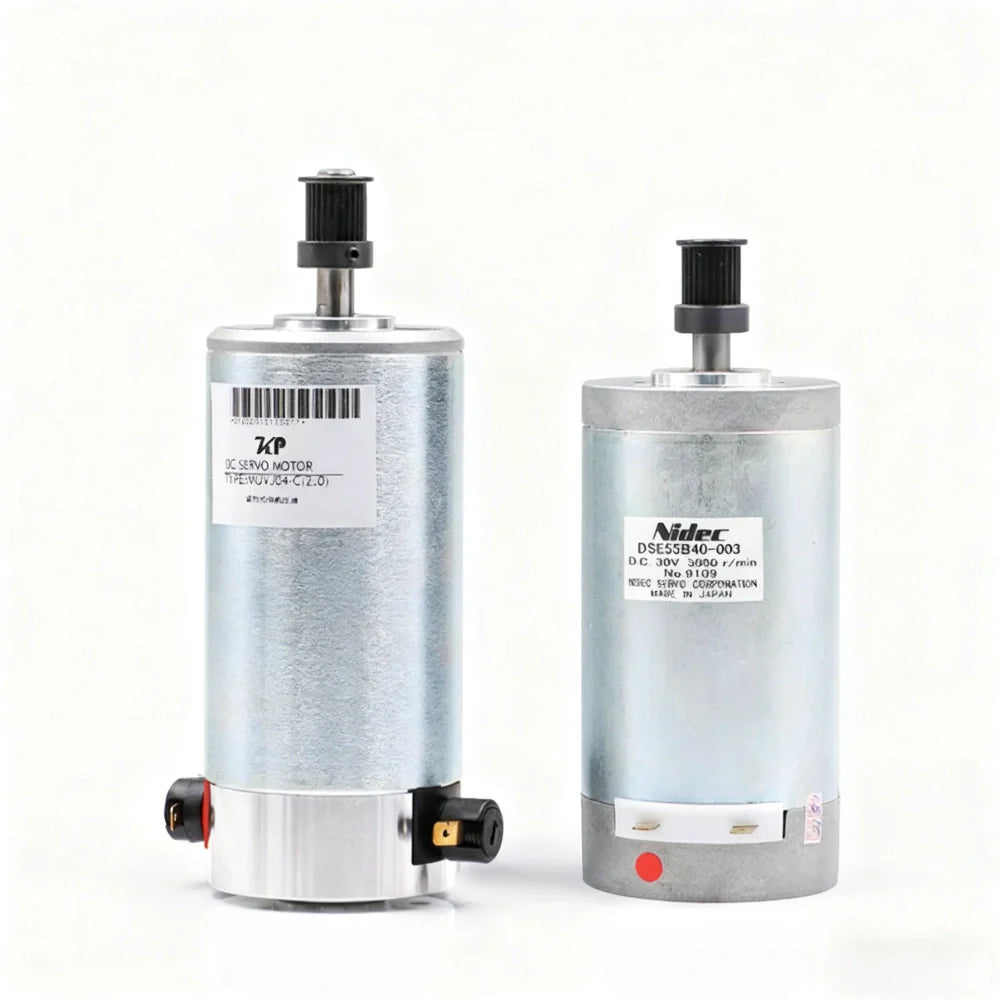

xMUJVJ04-C / MUJVJ04-CTZ (2.0) is a DC carriage servo motor installed in the carriage motion system of MUTOH VJ series printers. It is responsible for driving CR-axis scanning movement and maintaining precise carriage positioning.
The motor uses a brushed DC core combined with a toothed pulley for belt transmission, allowing controlled torque delivery and smooth acceleration during bidirectional scanning cycles. The structure supports stable operation under continuous industrial workloads.

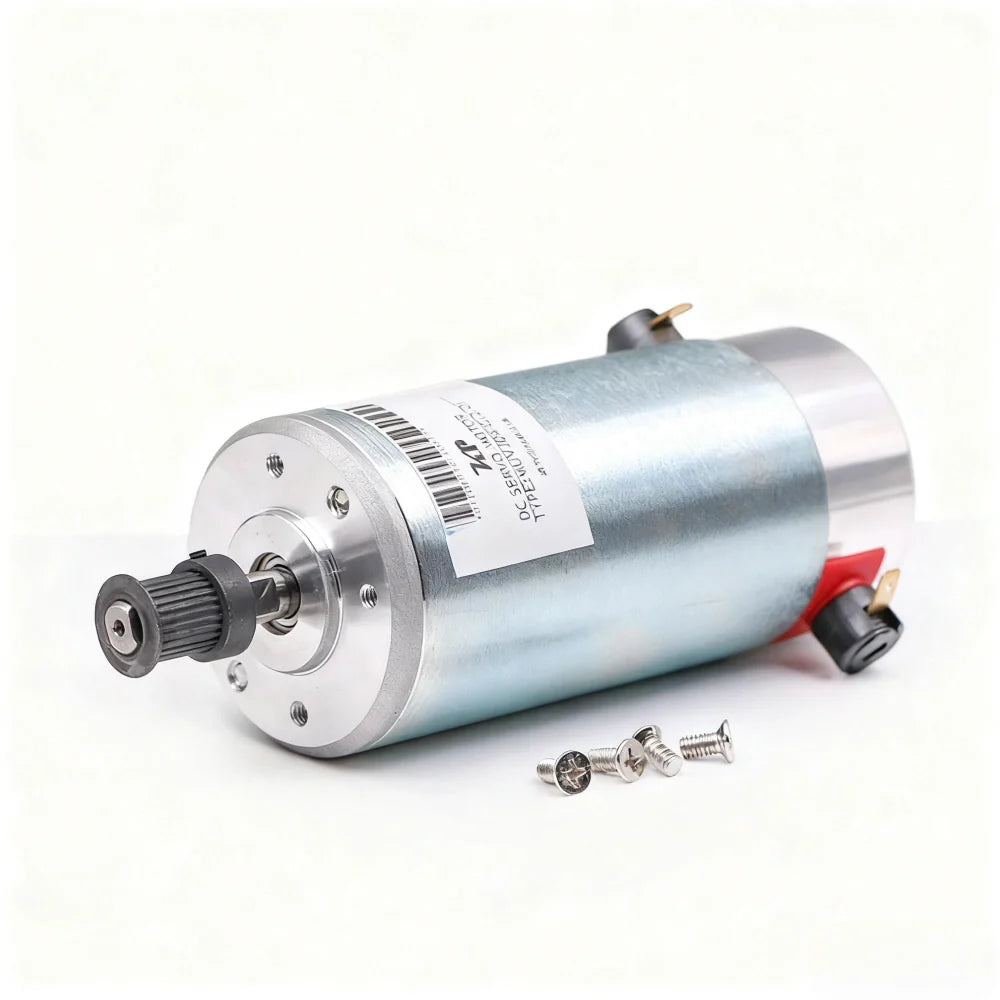

Terminal-type electrical connectors and included mounting hardware allow quick replacement without modifying the printer’s original wiring or mechanical structure.
Product Highlights
- Motor series: MUJVJ04-C / MUJVJ04-CTZ (2.0)
- CR-axis carriage scanning drive motor
- Brushed DC servo design with belt-drive pulley
- 30V operating voltage
- Low noise, low vibration output

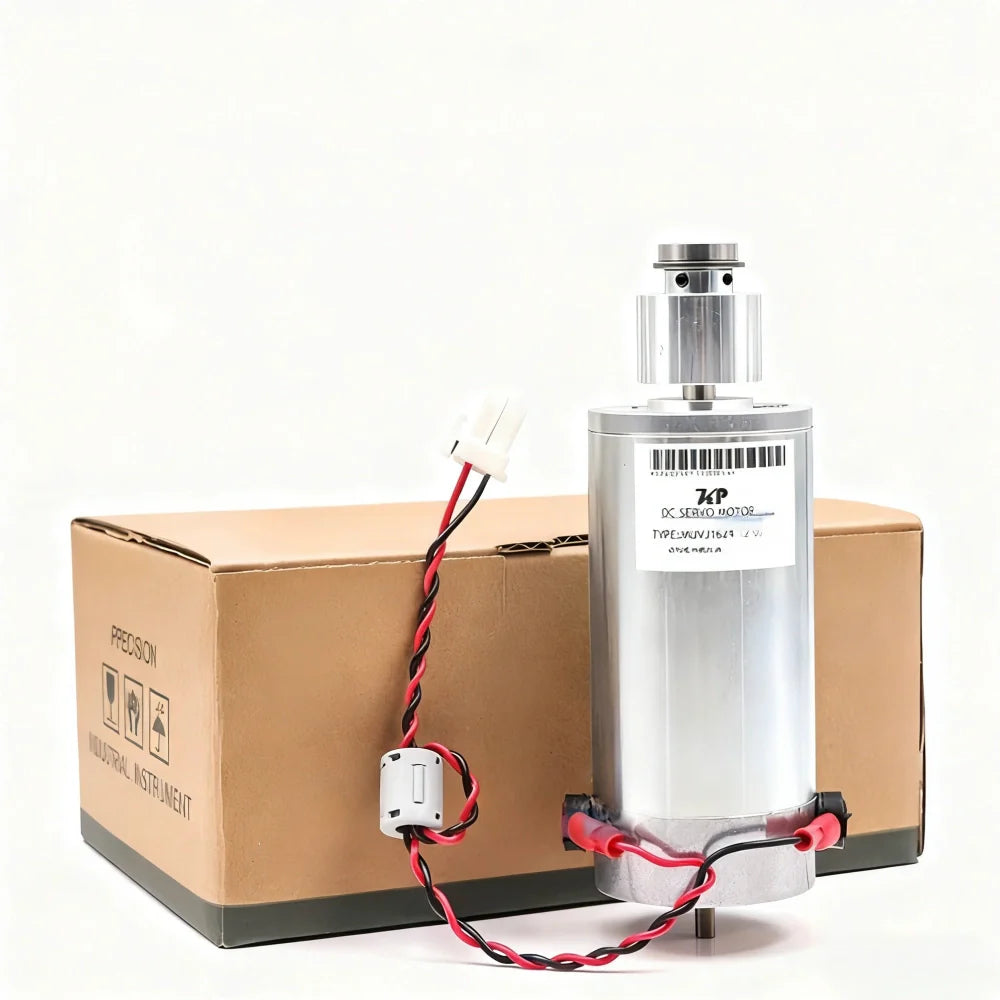

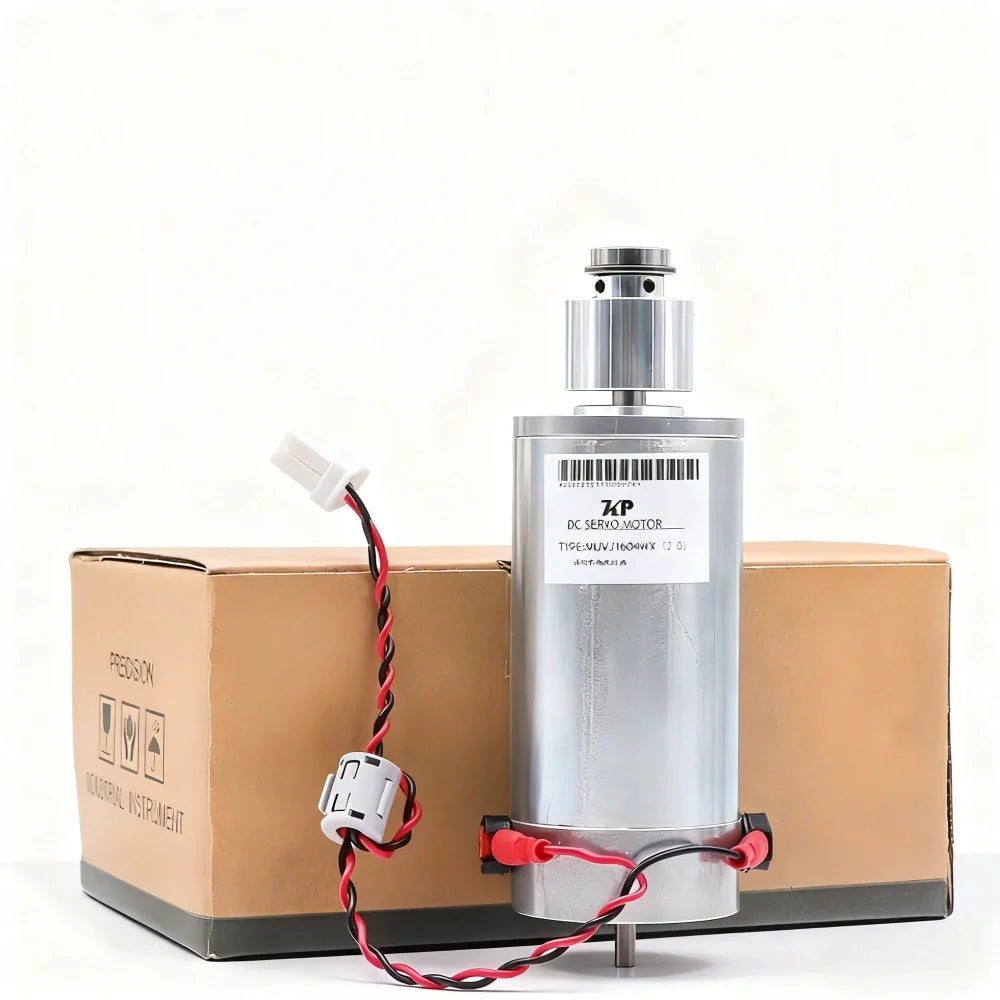

Variant Selection Guide
Select the correct variant based on your printer model. Each variant is designed to match the original carriage motor configuration for that machine.
| Printer Model | Variant Code | Installation Area | Transmission | Service Notes |
|---|---|---|---|---|
| VJ-1604 | 1604 | Carriage CR axis | Belt-driven pulley | Direct replacement |

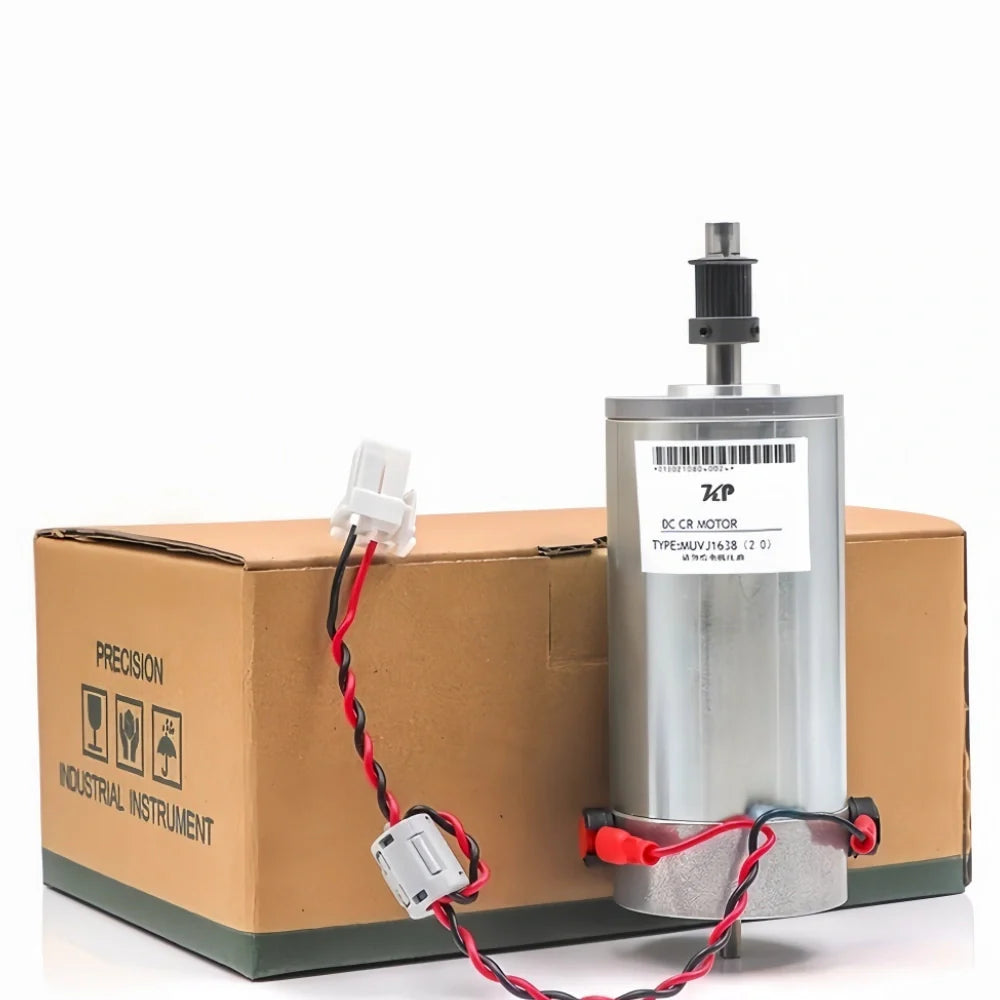

| VJ-1638 | 1638 | Carriage CR axis | Belt-driven pulley | Wide-format version |
| VJ-1604WX | 1604WX | Carriage CR axis | Belt-driven pulley | WX configuration |
| VJ-1624 | 1624 | Carriage CR axis | Belt-driven pulley | Confirm belt & pulley match |
Service Notes
- Please select the correct printer model variant before ordering.
- Verify pulley type and belt compatibility.
- After installation, perform carriage movement and test printing.
