MV-SD100Es Ink Circulation Pump for Solvent Ink
SKU:
Ink Pump - 009
- $37.40
- $37.40
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

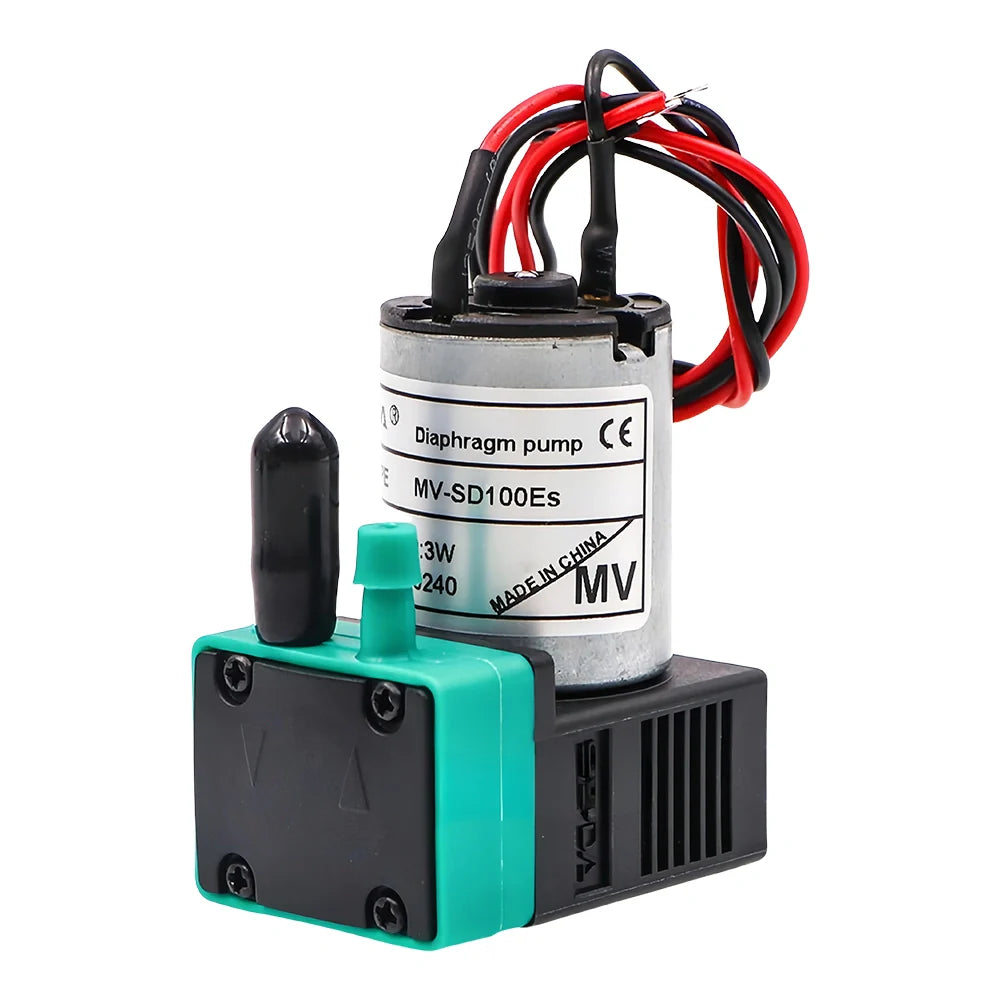

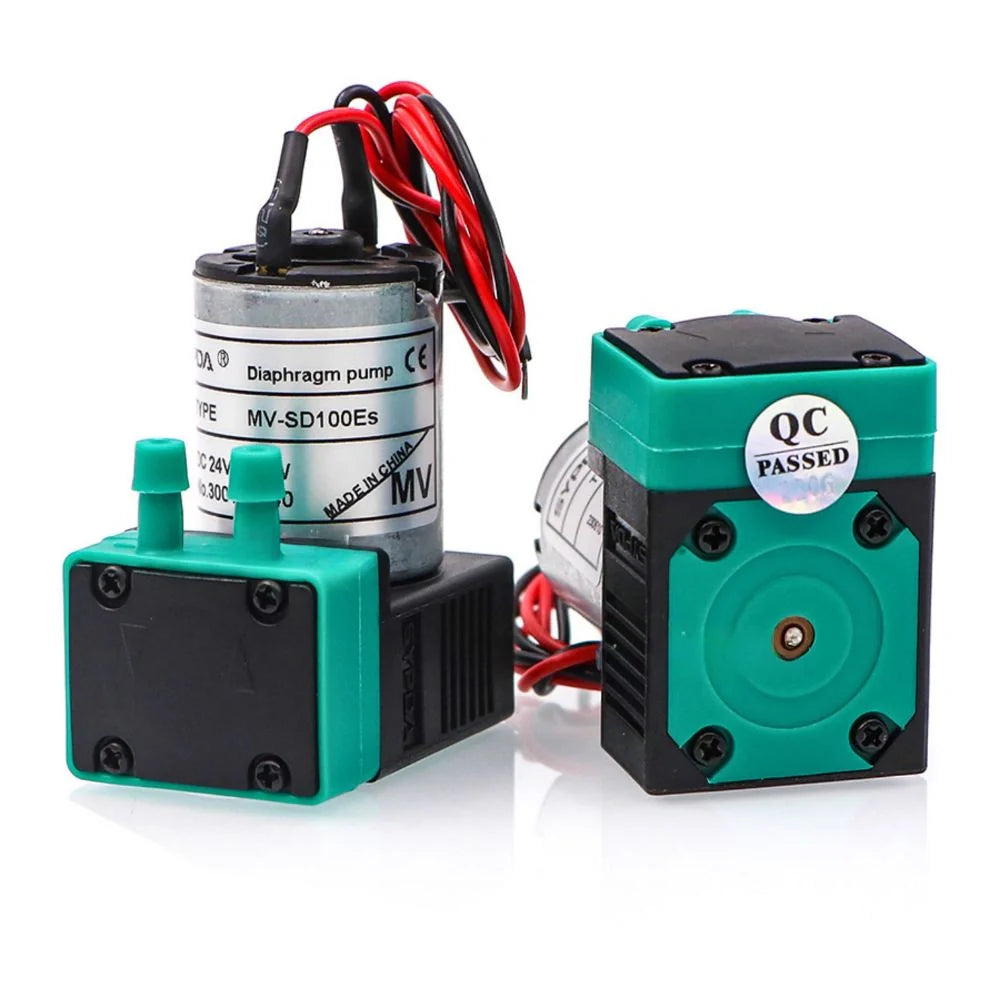

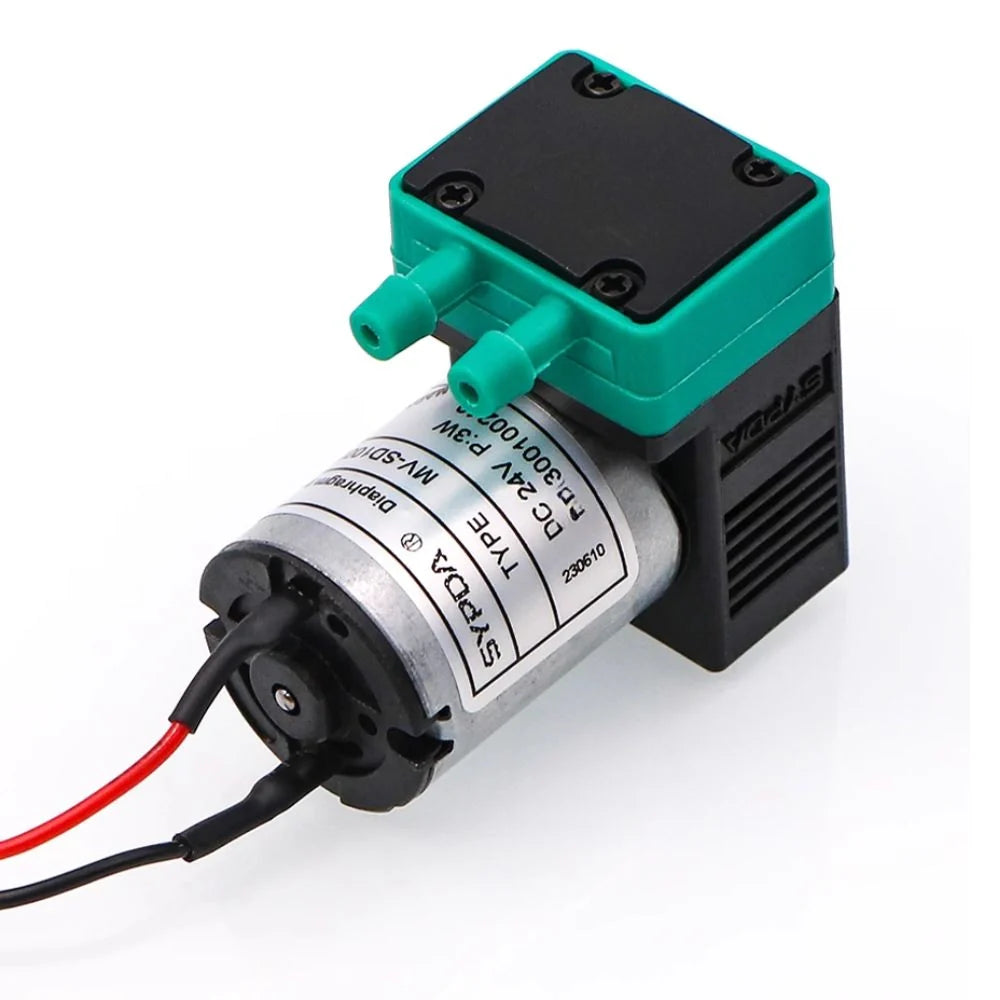

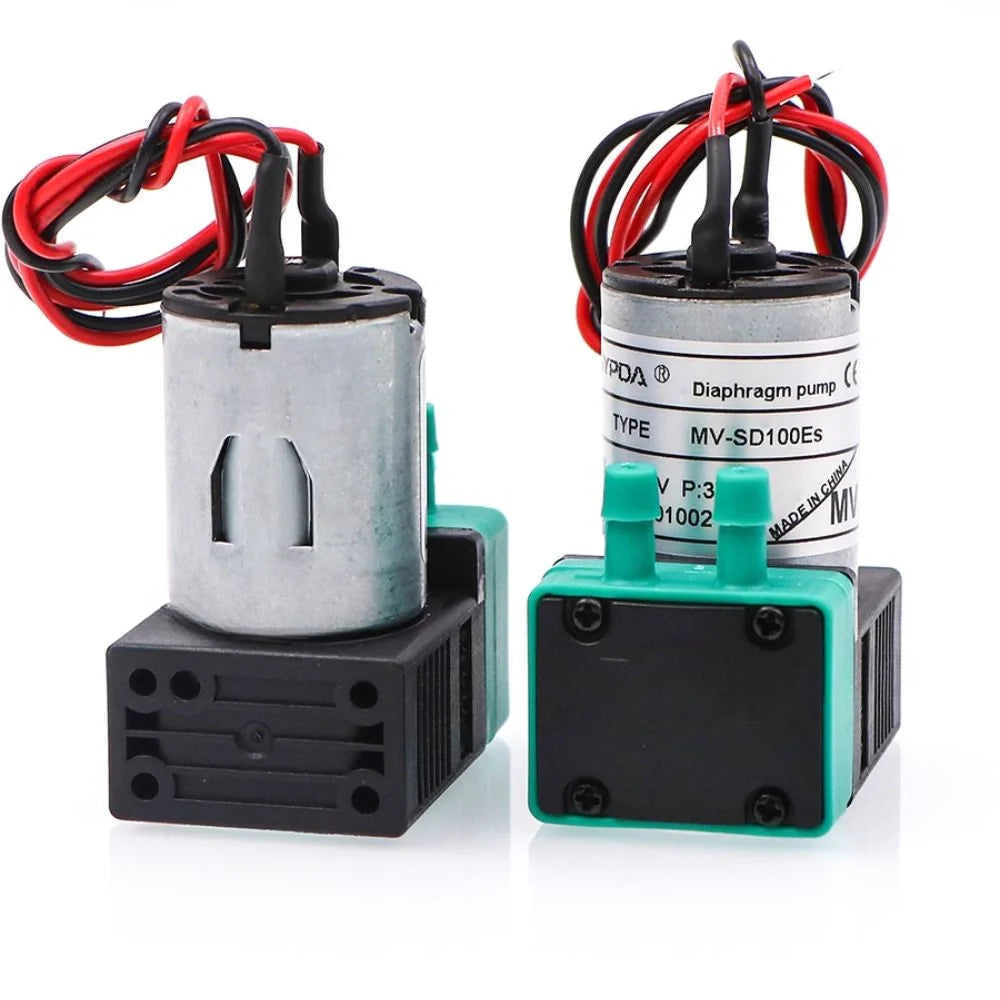

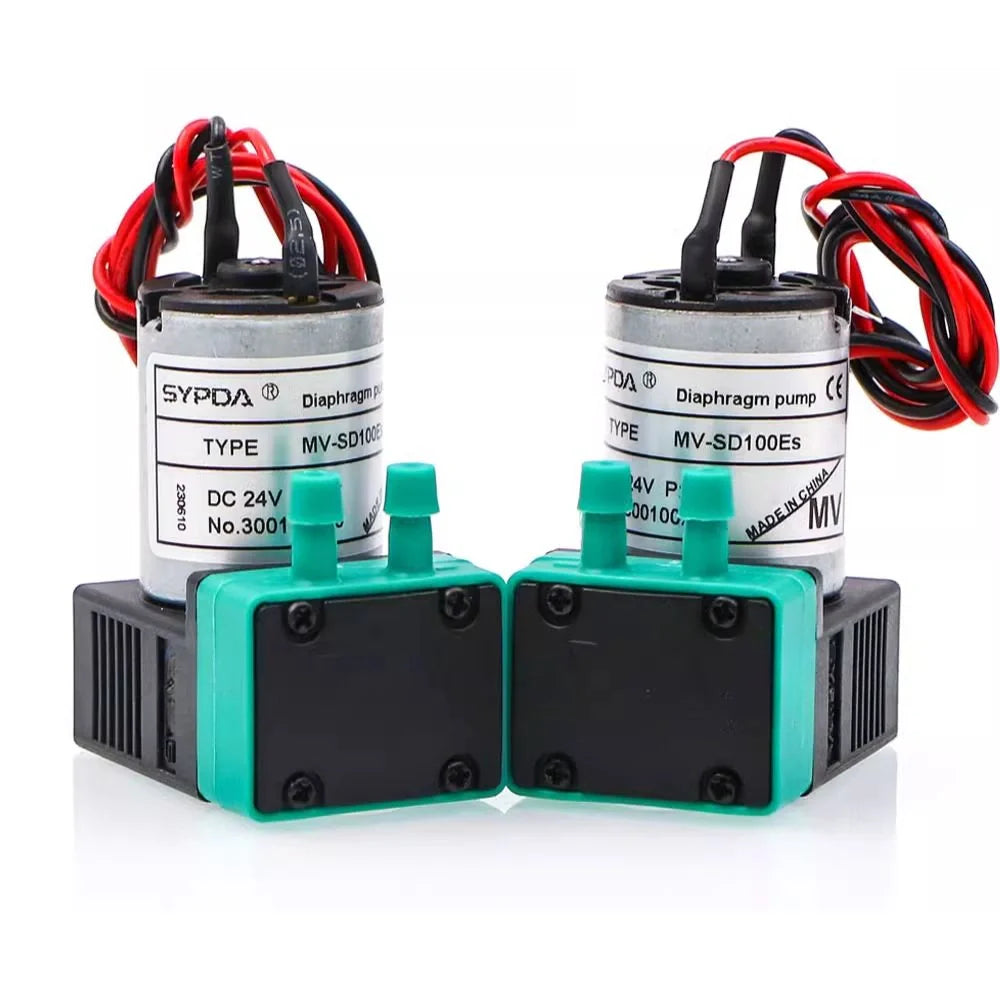

xThe MV-SD100Es ink pump is engineered for solvent-based ink circulation where chemical resistance and flow stability are critical. Using a diaphragm-driven structure, it provides smooth and consistent ink transfer while minimizing pulsation that may affect print quality.
Powered by a 24V DC, 3W low-consumption motor, this pump maintains a steady 100ml/min output with low noise and reduced mechanical stress. Its materials are selected to resist solvent corrosion, supporting reliable operation in continuous-duty printing systems.
The compact body design allows flexible installation in confined printer layouts, making it suitable for coding machines, UV inkjet printers, and auxiliary ink circulation units in digital printing equipment.
Performance Highlights
- Optimized for solvent and oil-based ink compatibility
- Consistent ink output with controlled flow rate
- Compact size for space-restricted installations
- Low noise operation for industrial environments
- Designed for long service life with minimal maintenance
Product Parameters
| Model | MV-SD100Es |
| Voltage | DC 24V |
| Power | 3W |
| Flow Rate | 100ml/min |

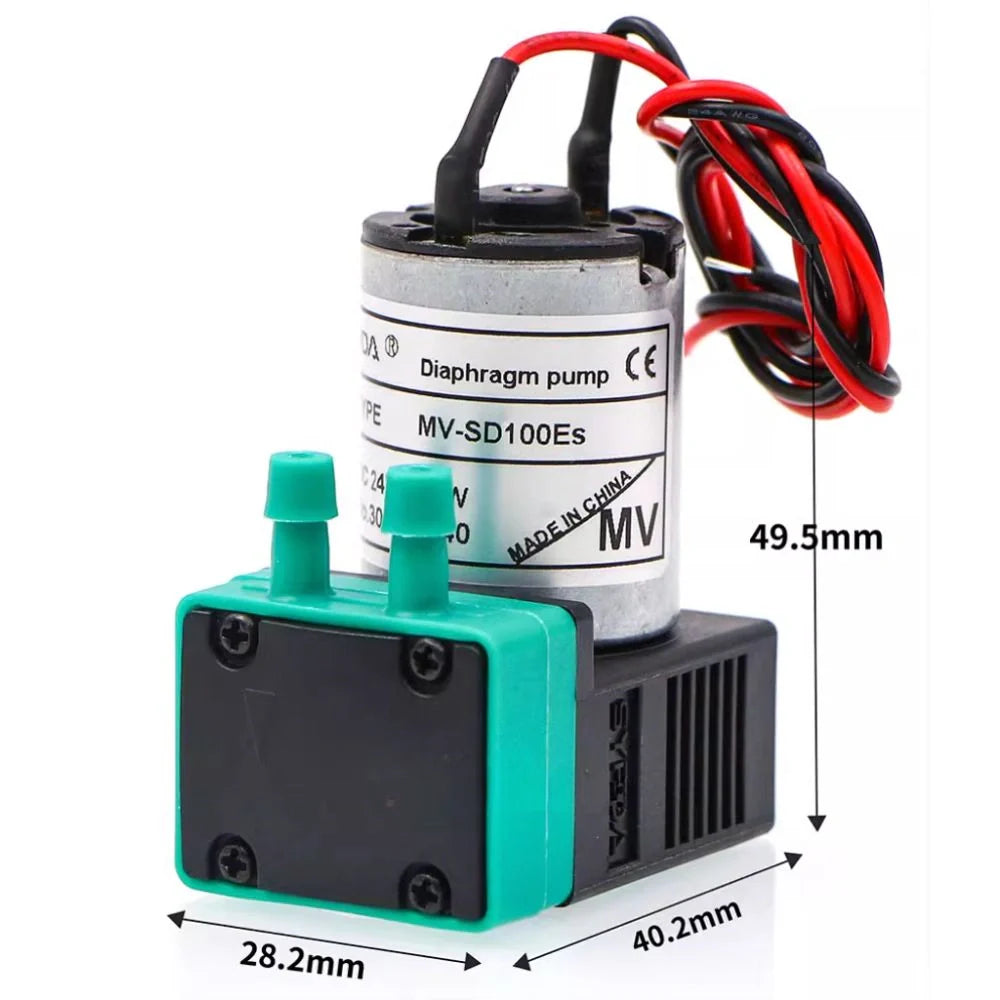

| Dimensions | 49.5mm × 40.2mm × 28.2mm |
| Ink Type | Solvent-based / oil-based inks |
| Typical Use | Ink circulation for coding and inkjet printing systems |
Installation tip: ensure airtight tubing connections and compatible hose materials when working with solvent inks to maintain stable suction and extend pump service life.
