PALL Original Ink & Air Filter Series
SKU:
Filters - 008 - 1
- $15.20
- $15.20
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description
xPALL Original Ink & Air Filter Series provides professional filtration solutions for printing systems. This multi-variant listing includes small and large ink filters, main filters, air filters, column-type filters, and oil separators for stable ink circulation and clean compressed air supply.
Model Variants (Select The Correct Option)
Please choose the variant by model code. Each option is used in a different filtration stage (ink line, circulation, air line, or oil separation).
| Variant Name | Model Code | Type | Filtration | Size / Notes | Typical Use |
|---|---|---|---|---|---|

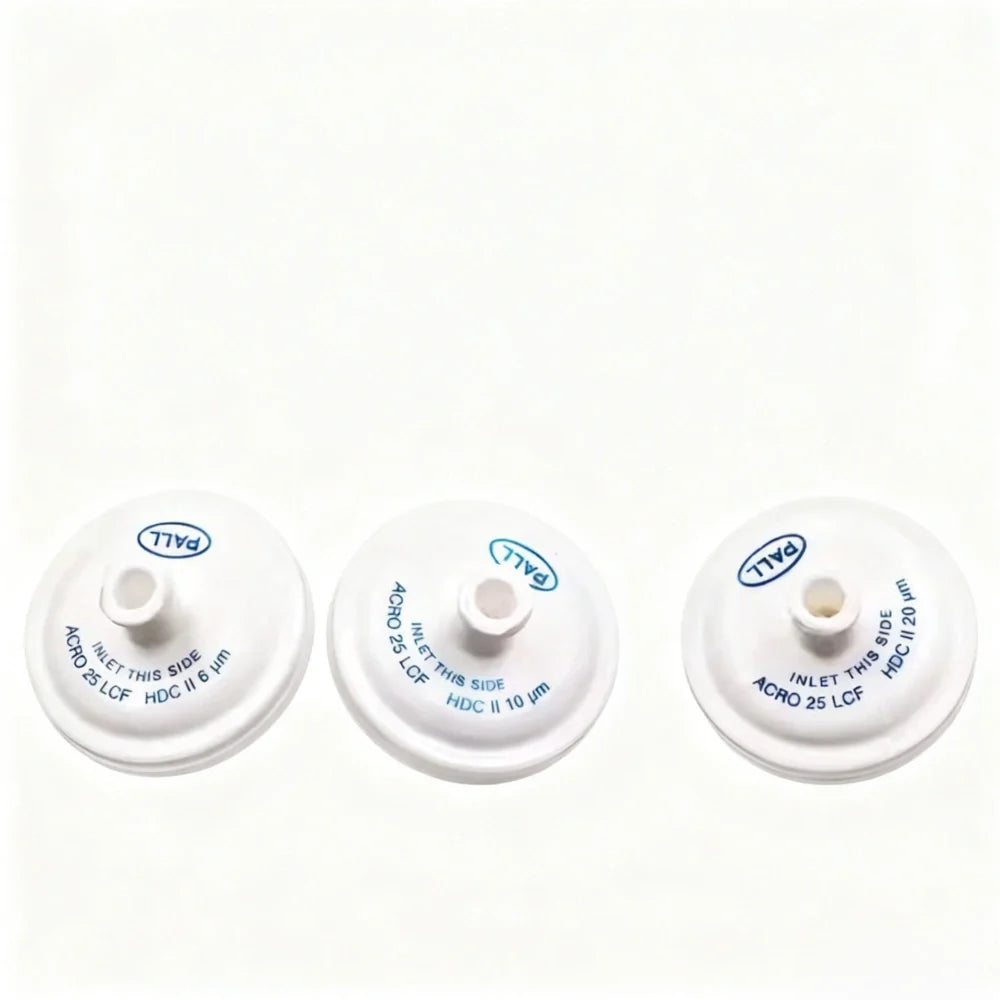

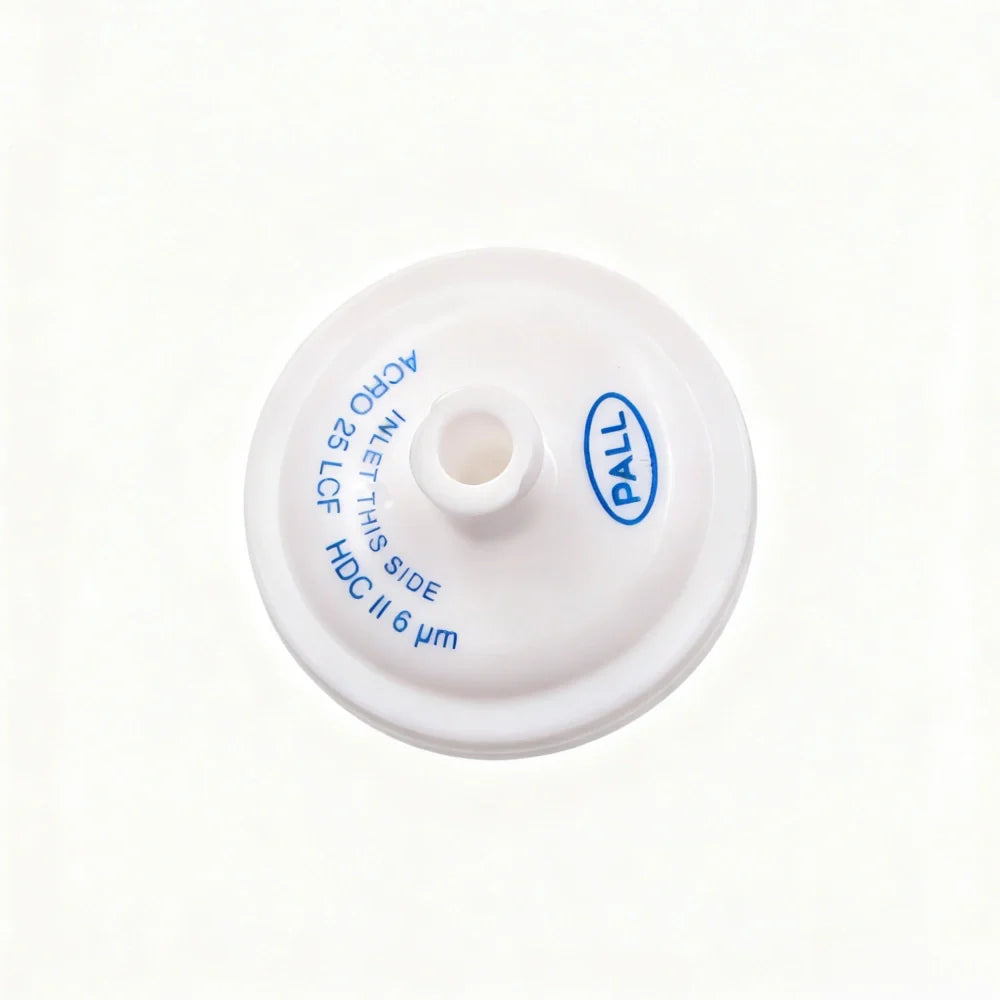

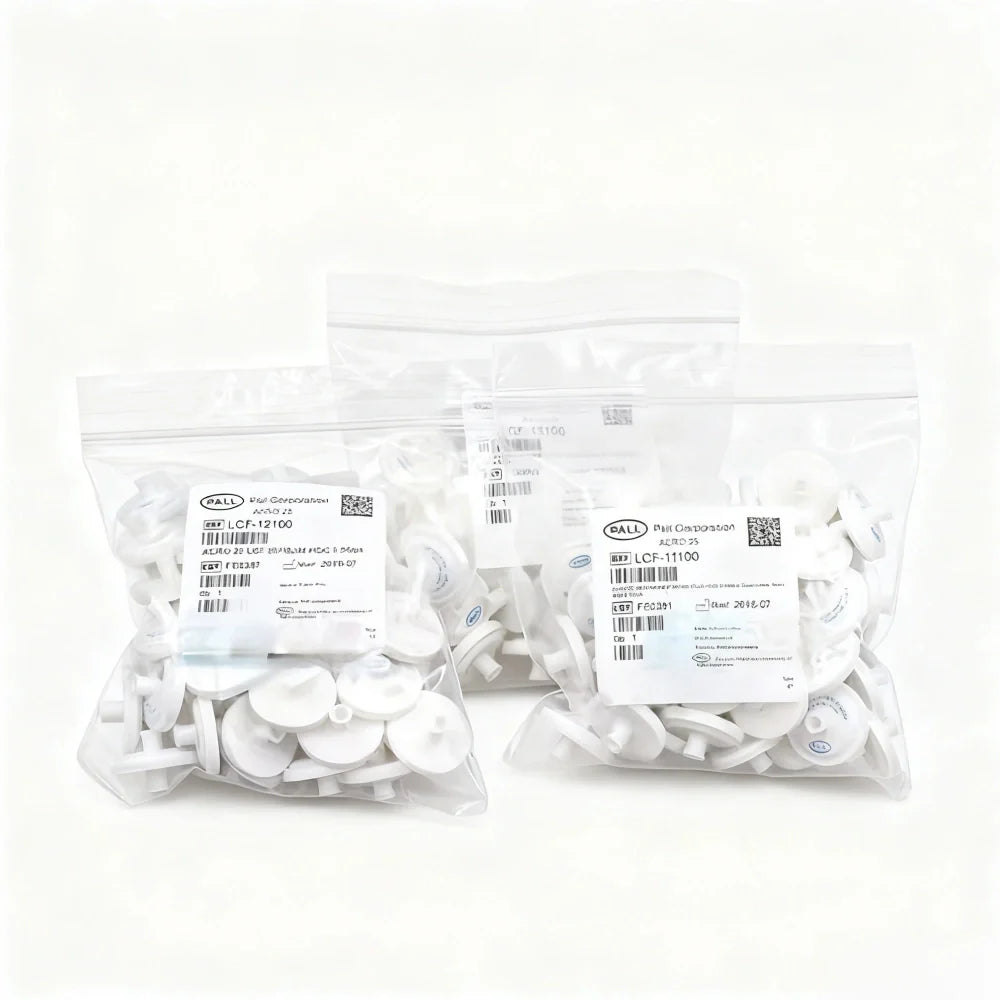

| Original 6µm Small Ink Filter | LCF11100 | Small Ink Filter | 6 µm | Ø25 mm | Fine ink filtration for UV/solvent lines |

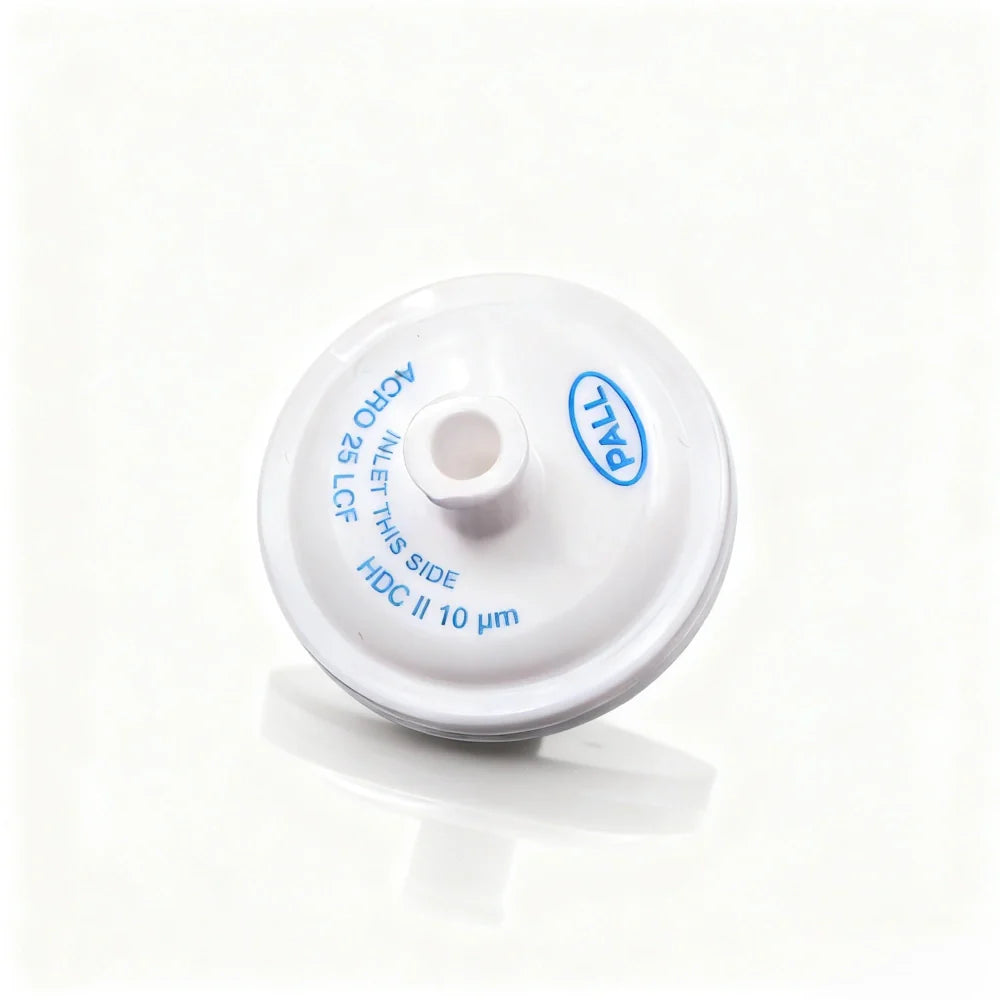

| Original 10µm Small Ink Filter | LCF12100 | Small Ink Filter | 10 µm | Ø25 mm | General-purpose ink filtration |

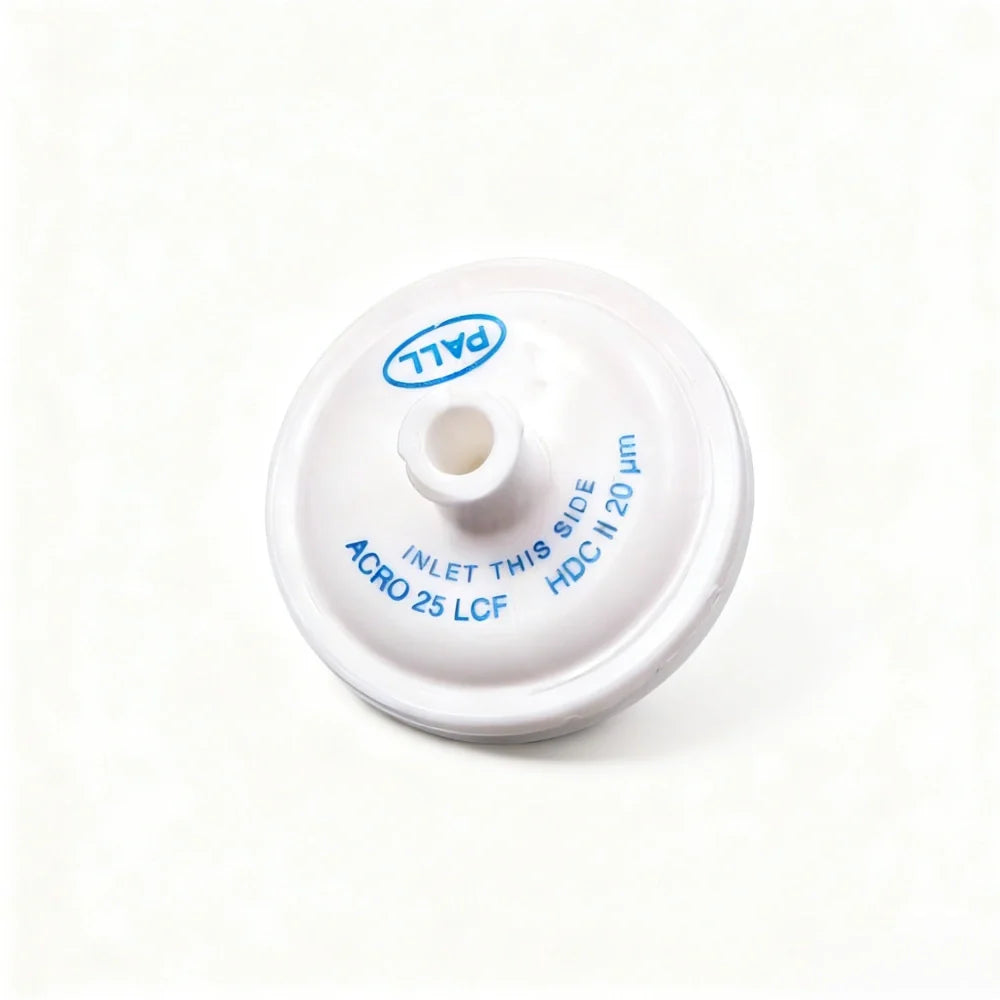

| Original 20µm Small Ink Filter | LCF13100 | Small Ink Filter | 20 µm | Ø25 mm | High-viscosity / white ink systems |

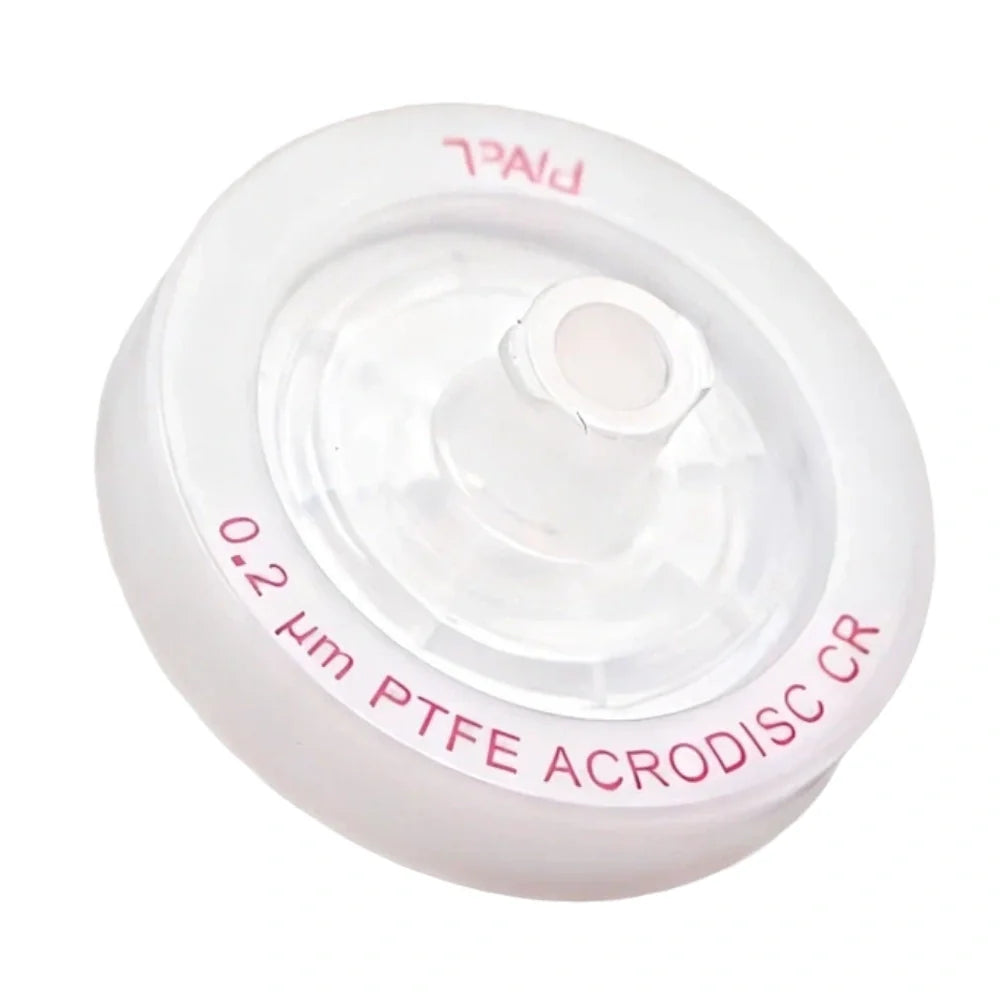

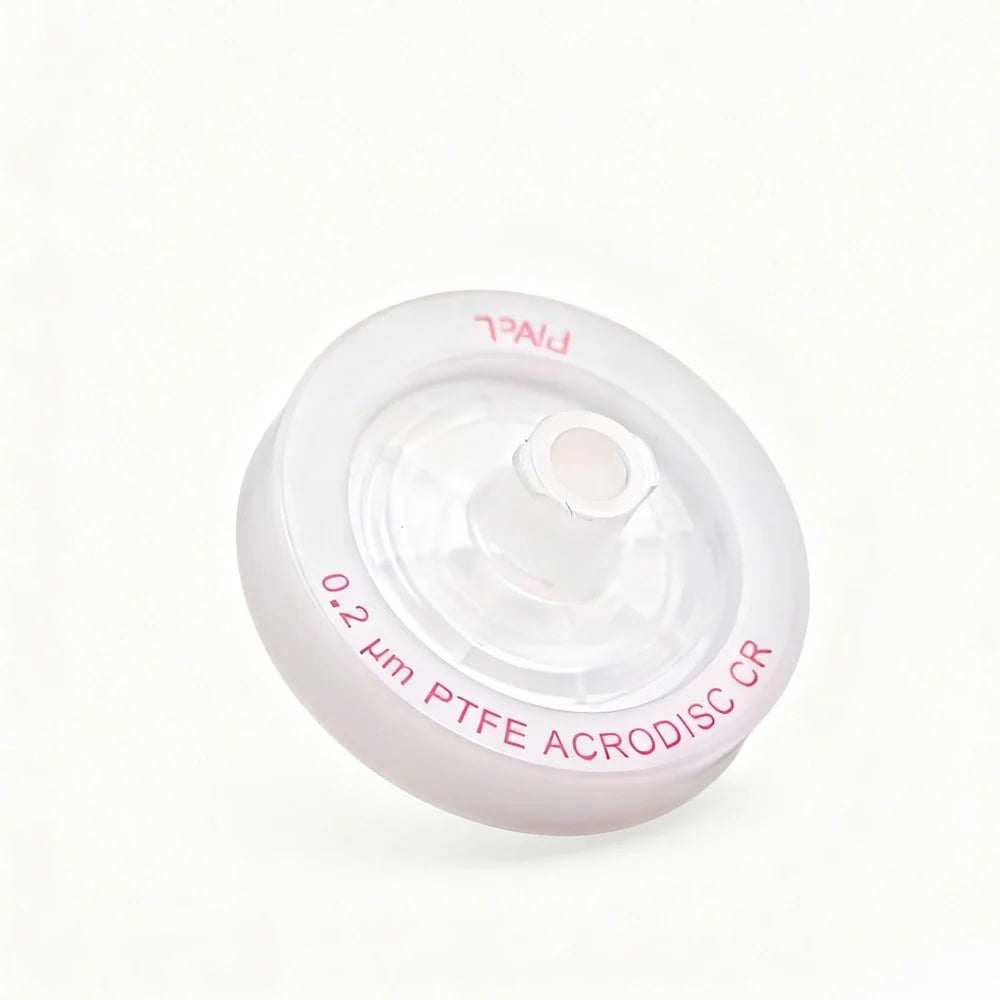

| Original 0.2µm Air Filter | 4225T | Air Filter | 0.2 µm | Ø25 mm | Compressed air purification (fine) |

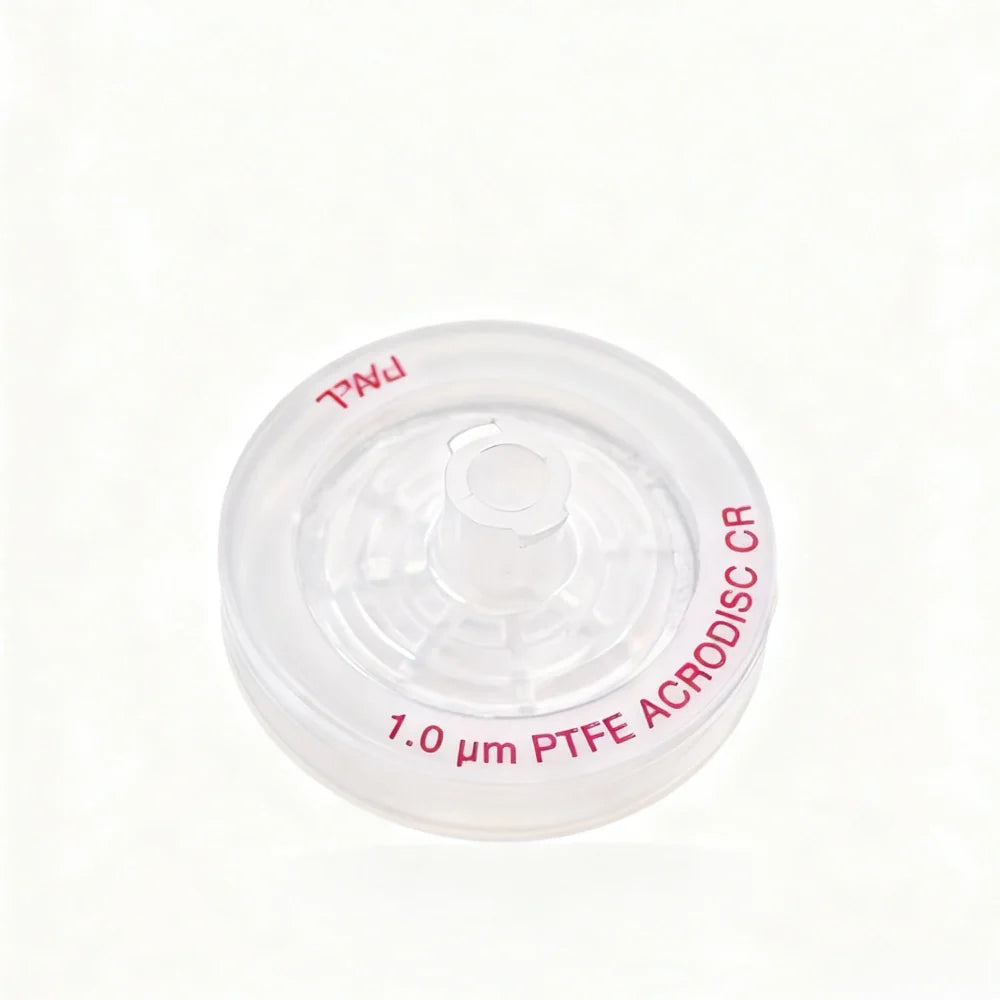

| Original 1µm Air Filter | 4226T | Air Filter | 1 µm | Ø25 mm | Air line protection before air-assisted systems |

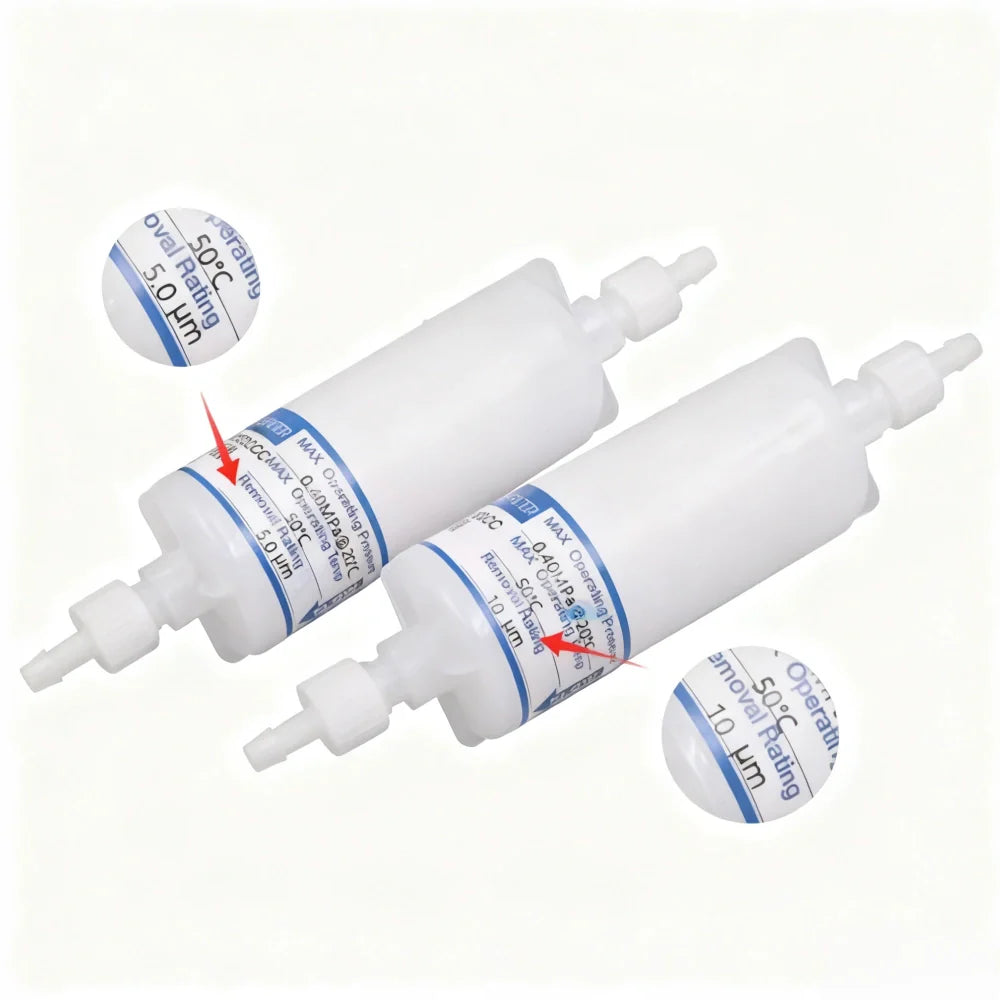

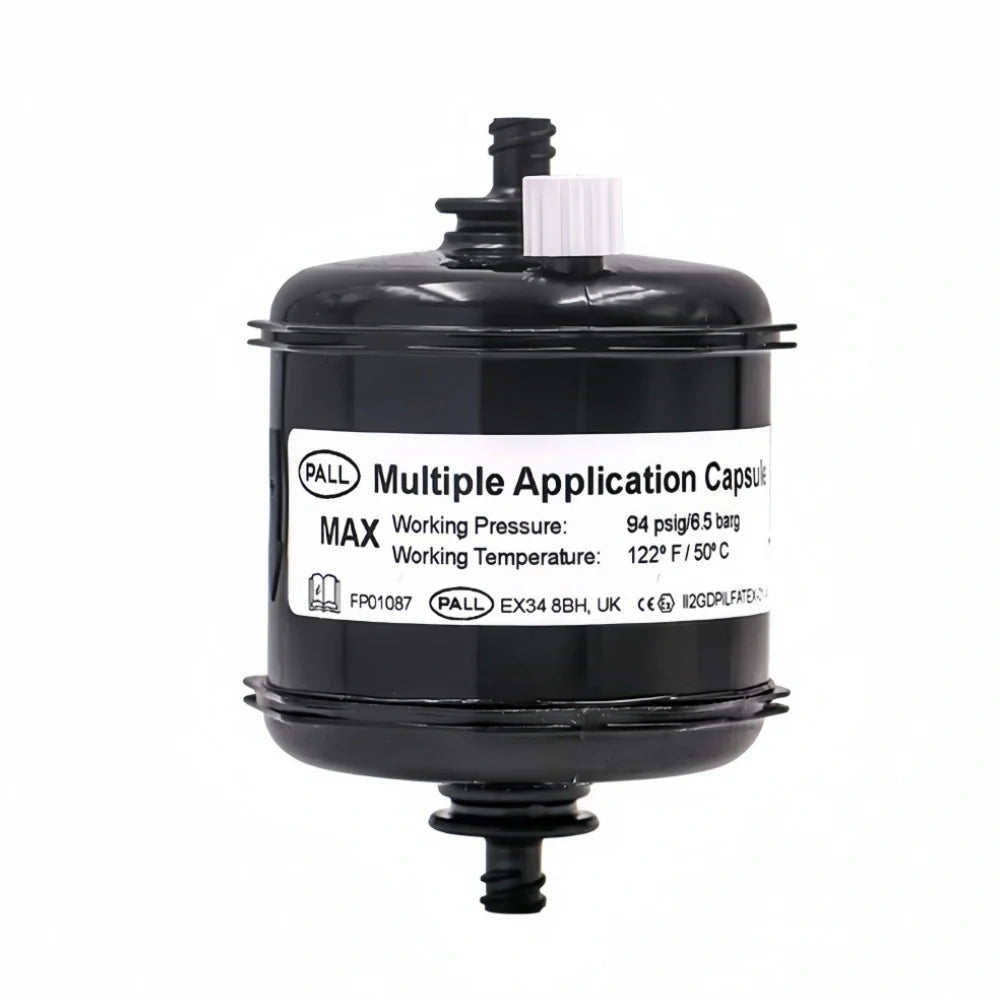

| Original 5µm Main Ink Filter | MACCA0507 | Main Ink Filter | 5 µm | Main stage filter | Primary filtration in main ink supply |

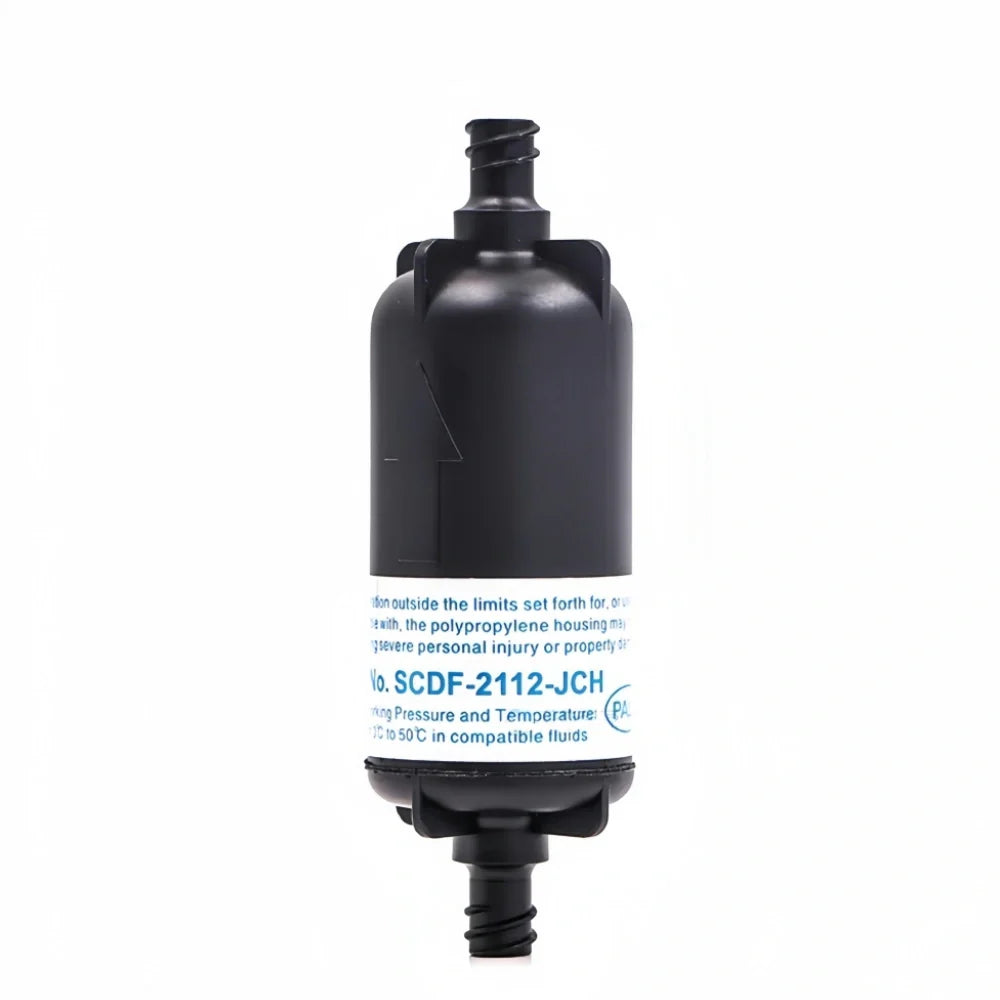

| Original 10µm Column Type | SCDF-2112-JCH | Column Ink Filter | 10 µm | Column type | Ink circulation filtration |

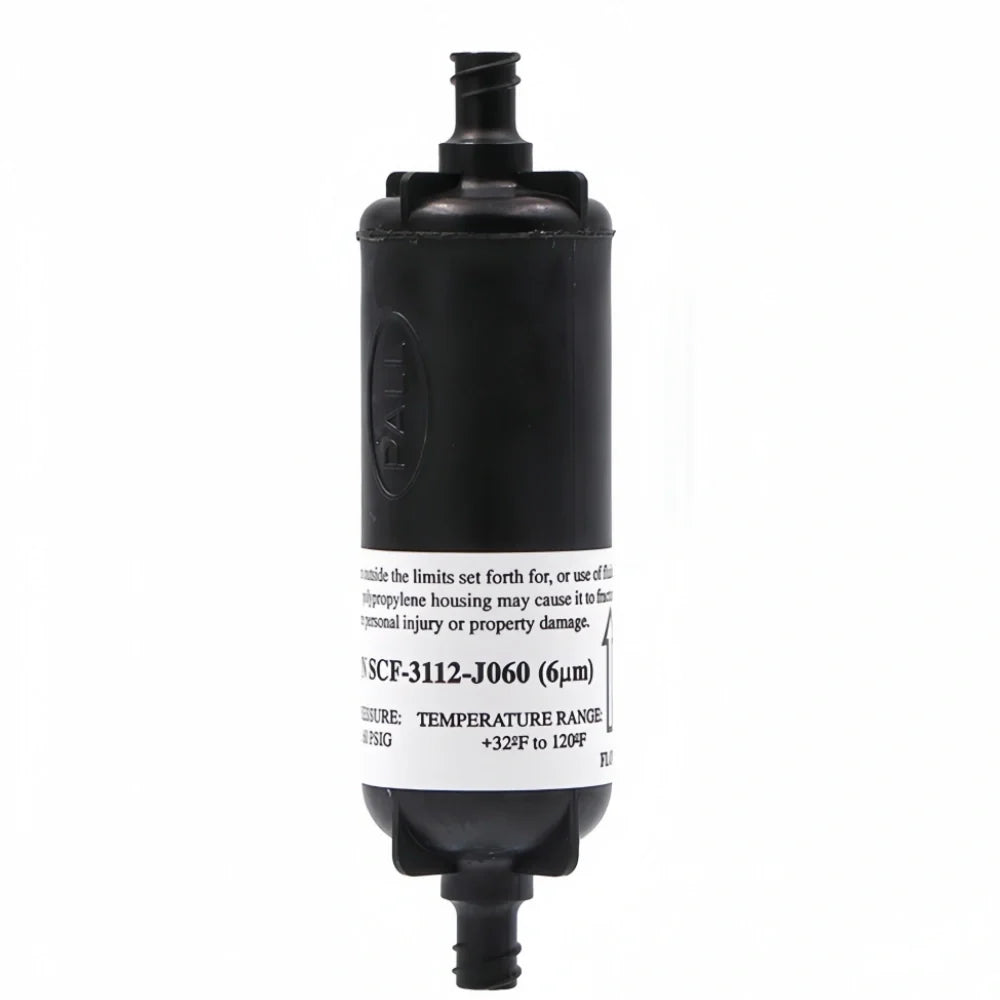

| Original 6µm Column Type | SCF-3112-J060 | Column Ink Filter | 6 µm | Column type | Finer circulation filtration and protection |

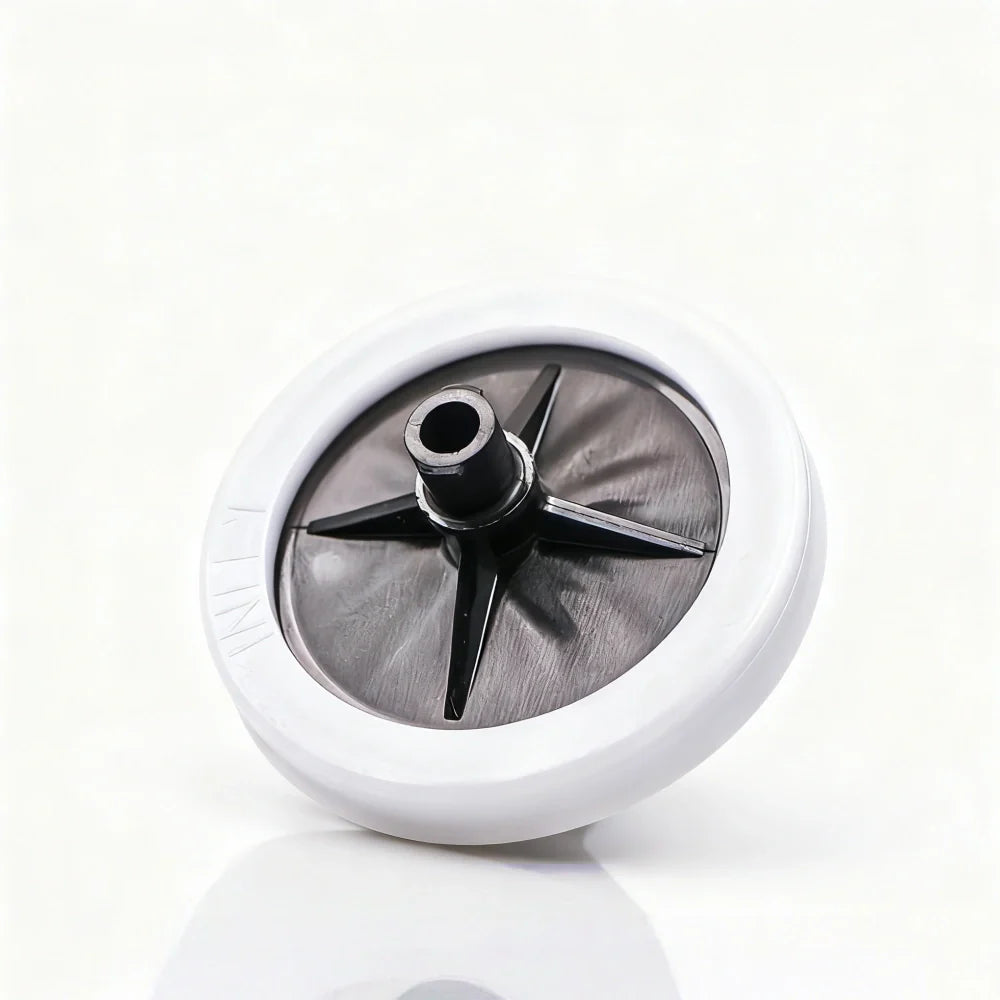

| Original 10µm Large Ink Filter | LCF22110 | Large Ink Filter | 10 µm | Ø45 mm | High-capacity main line filtration |
| Original 20µm Large Ink Filter | LCF23110 | Large Ink Filter | 20 µm | Ø45 mm | White ink / heavy-duty high-flow systems |
| Original Small Oil Separator | UDM-21110 | Oil Separator | — | Compact | Remove moisture & oil vapor in air line |

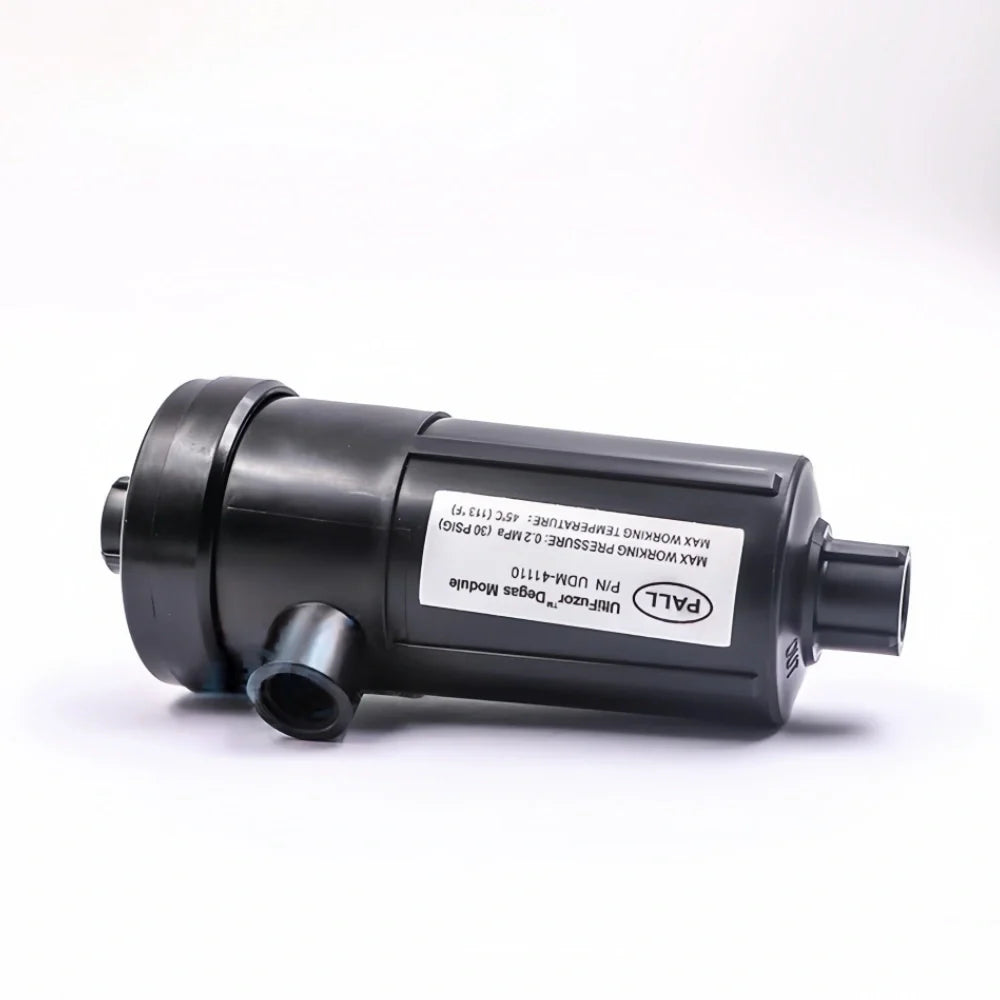

| Original Large Oil Separator | UDM-41110 | Oil Separator | — | Large | Main air line oil & moisture separation |
Key Features
- Original filtration media for consistent performance
- Wide range from 0.2µm to 20µm for ink and air systems
- Supports stable ink circulation and helps reduce nozzle clogging
- Covers ink filtration, air purification, and oil separation stages
Selection Notes
- Choose micron rating based on ink viscosity and filtration stage
- Air filters (4225T/4226T) and oil separators (UDM series) are used in compressed air lines
- Ink filters (LCF/LCF2/SCDF/SCF/MACCA) are used in ink supply or circulation lines
