AC Servo Driver – MCAC706
SKU:
Servo Driver - 002
- $214.10
- $214.10
- Unit price
- per
For any product questions, click the Contact button to reach us directly.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description

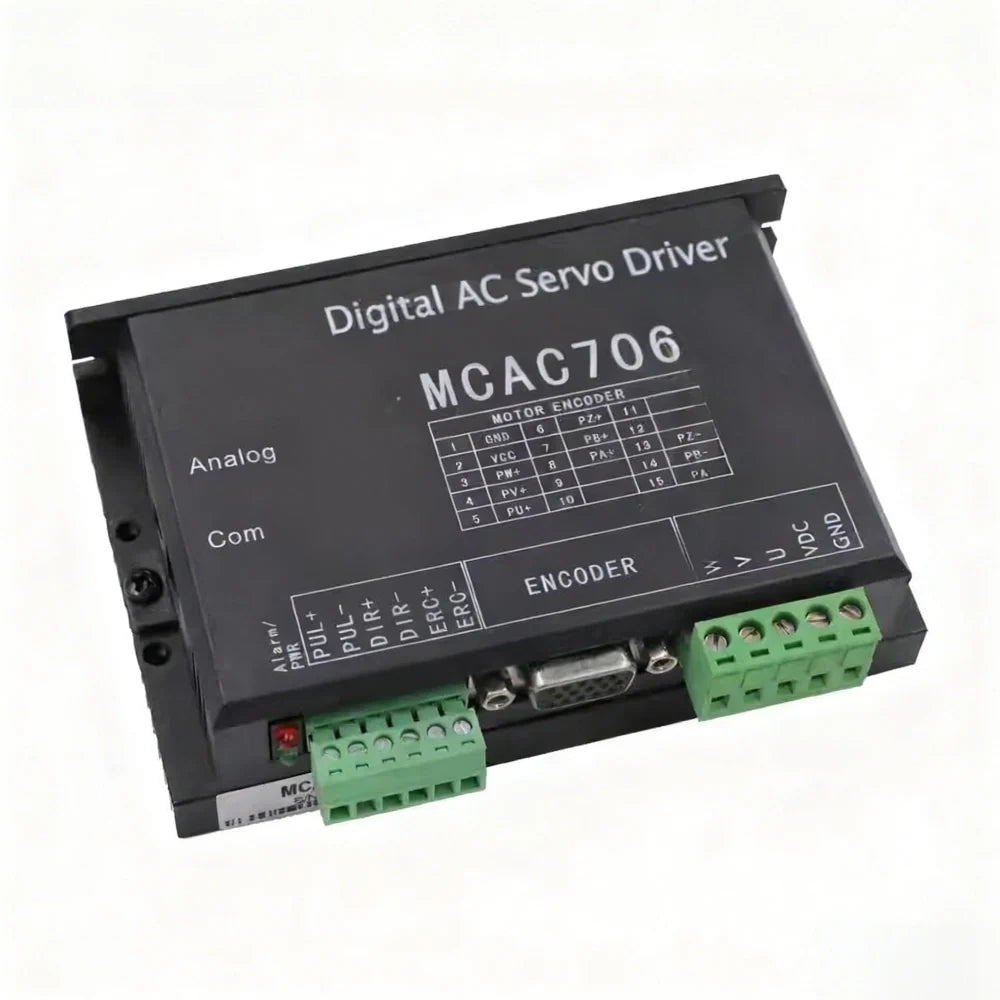

xThe MCAC706 is a digital AC servo driver designed for precision motion control in industrial printing and automation systems. It delivers stable and responsive motor control, making it suitable for applications that require accurate positioning and smooth operation.
This servo driver supports multiple control modes, including pulse/direction and analog input, allowing flexible integration with printer control boards and automation controllers. Incremental encoder feedback enables closed-loop control with fast response and reduced vibration.
Key Features
- Digital AC servo driver for industrial motion control
- Supports pulse/direction and analog control modes
- Compatible with incremental encoder feedback
- Fast response with smooth acceleration and deceleration
- Clearly labeled terminals for secure and accurate wiring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MCAC706 |
| Control Method | Pulse / Direction, Analog |
| Input Voltage | DC 36V–80V (typical range) |
| Encoder Type | Incremental encoder |
| Feedback Signals | PA+/PA-, PB+/PB-, PZ+/PZ- |
| Control Terminals | PUL+/-, DIR+/-, ERC+/- |
Available Parameter Versions
This servo driver supports multiple parameter configurations to match different motors and system requirements. Please select the appropriate parameter version when ordering.
| Parameter Set | Model Reference | Typical Application | Notes |
|---|---|---|---|

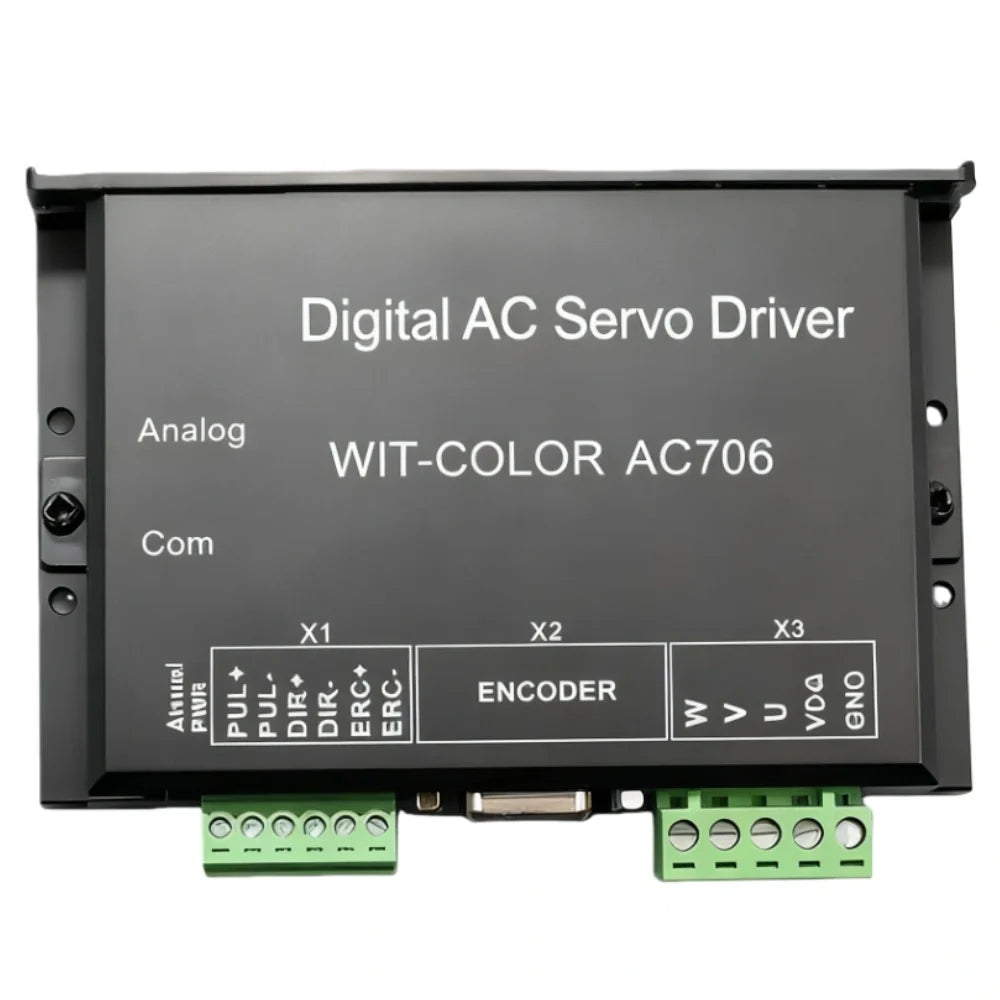

| AC706 Parameters | MCAC706 | Standard servo motor matching | Recommended for most printer carriage systems |

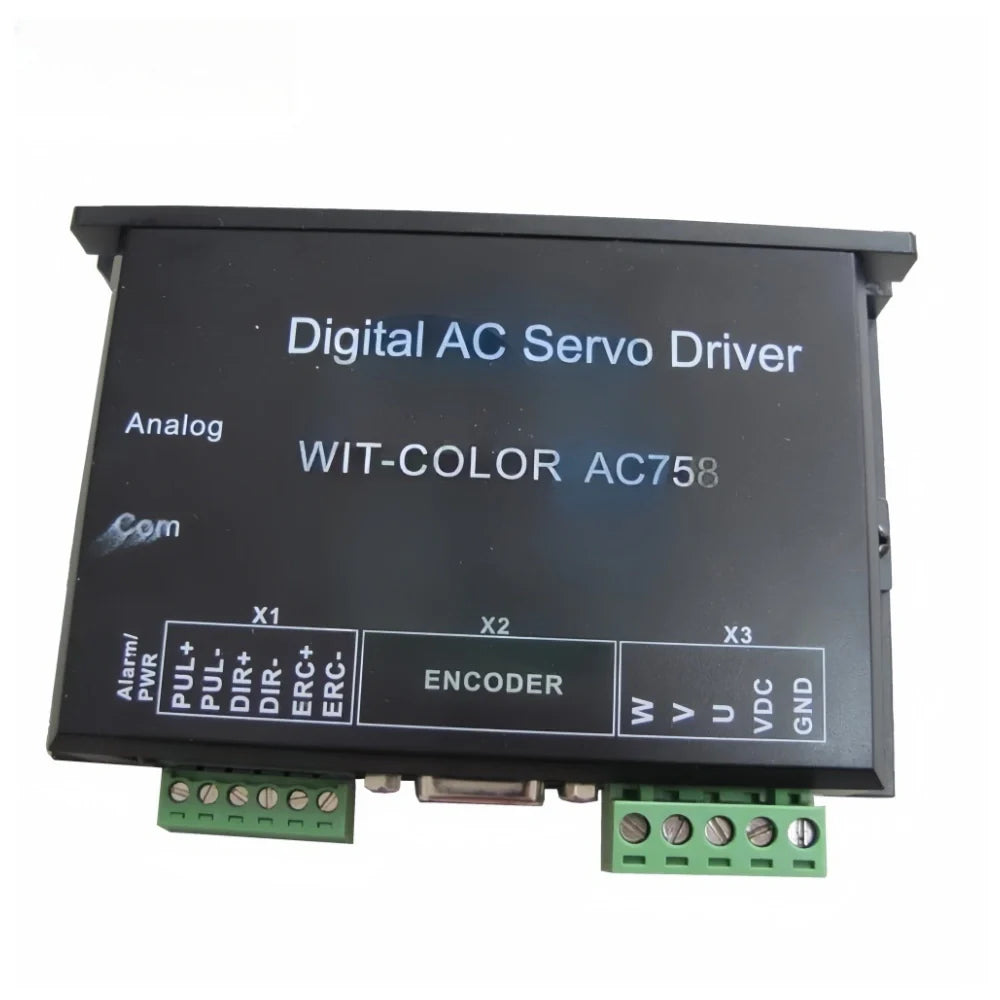

| AC758 Parameters | MCAC706 (Parameter Version) | Higher response or different motor tuning | Please confirm motor compatibility before use |
Applications
- Large format inkjet printer carriage control
- UV flatbed printer motion systems
- Engraving and cutting equipment
- Industrial automation positioning systems
Installation & Configuration Notes
- Confirm motor voltage and encoder compatibility before wiring
- Follow terminal labeling for correct signal connections
- Set parameters according to the selected parameter version
- Test motion direction and response before full operation
The MCAC706 servo driver is suitable for industrial environments requiring stable motion accuracy and long-term operational reliability.
