Description

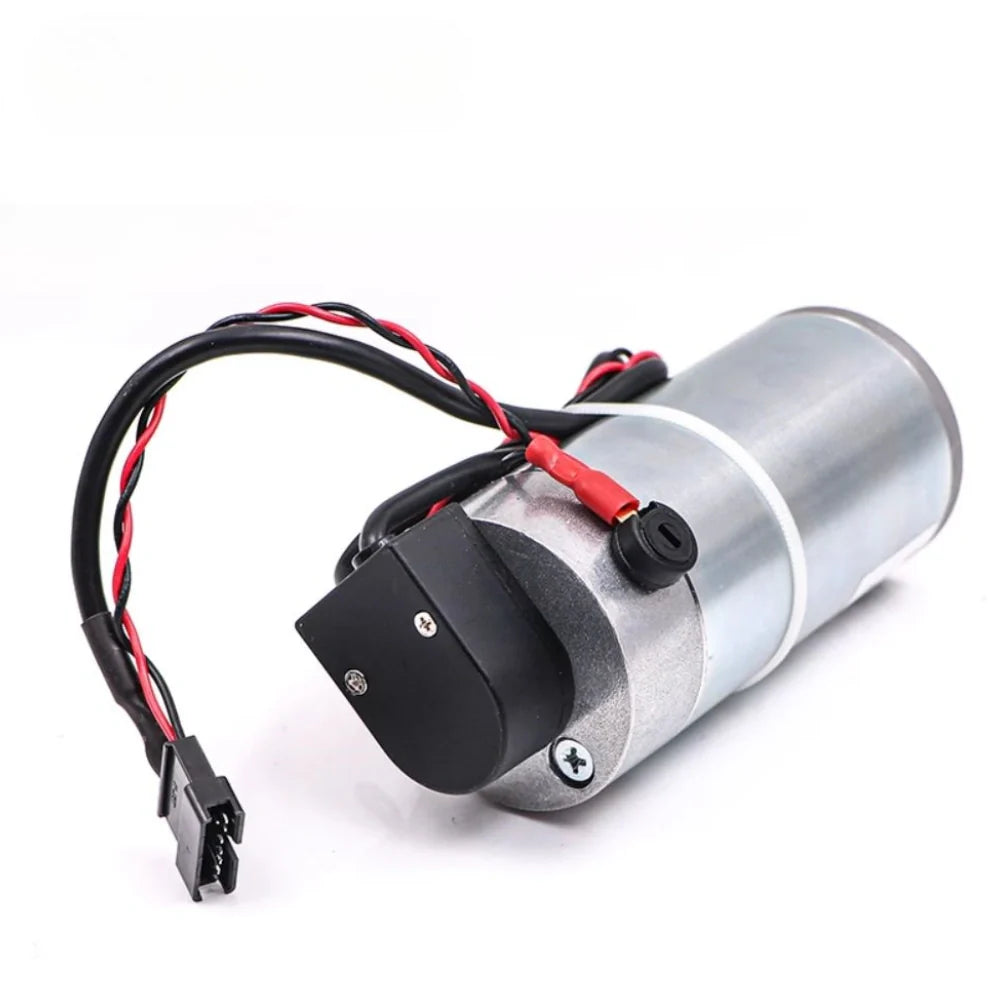

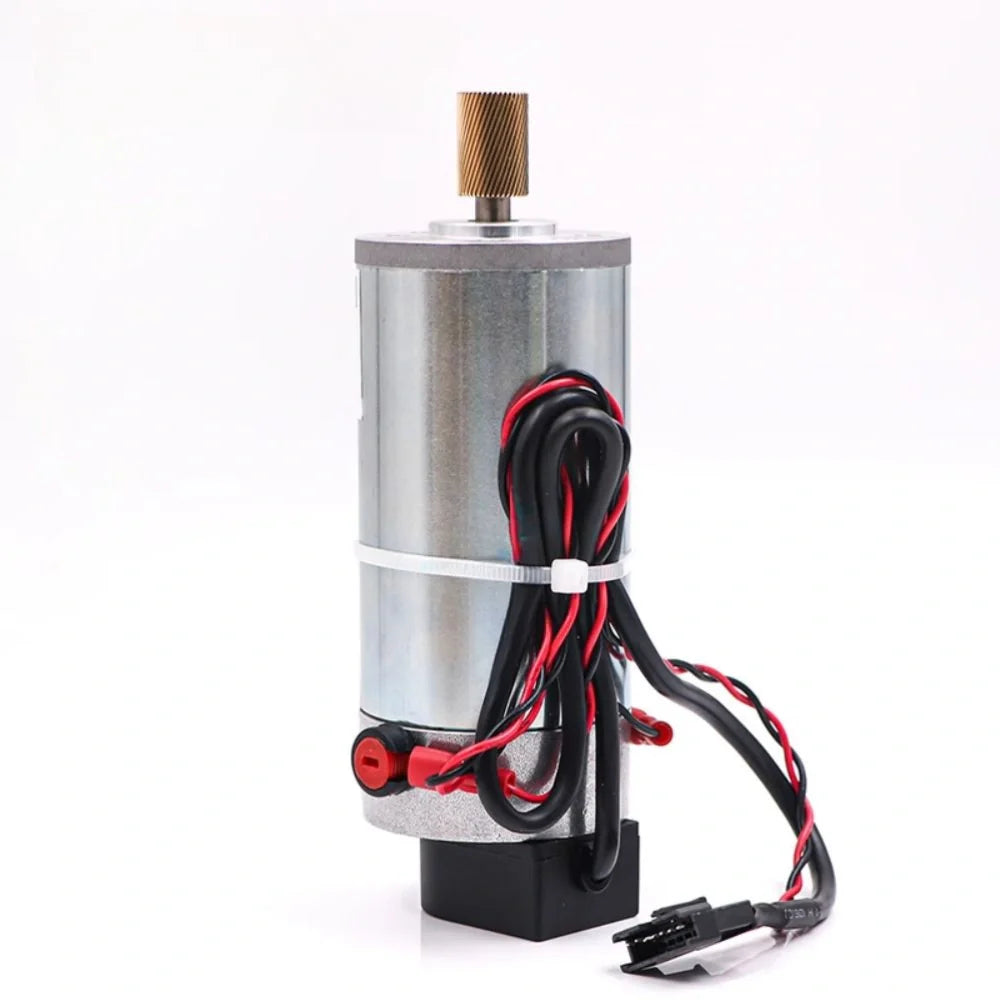

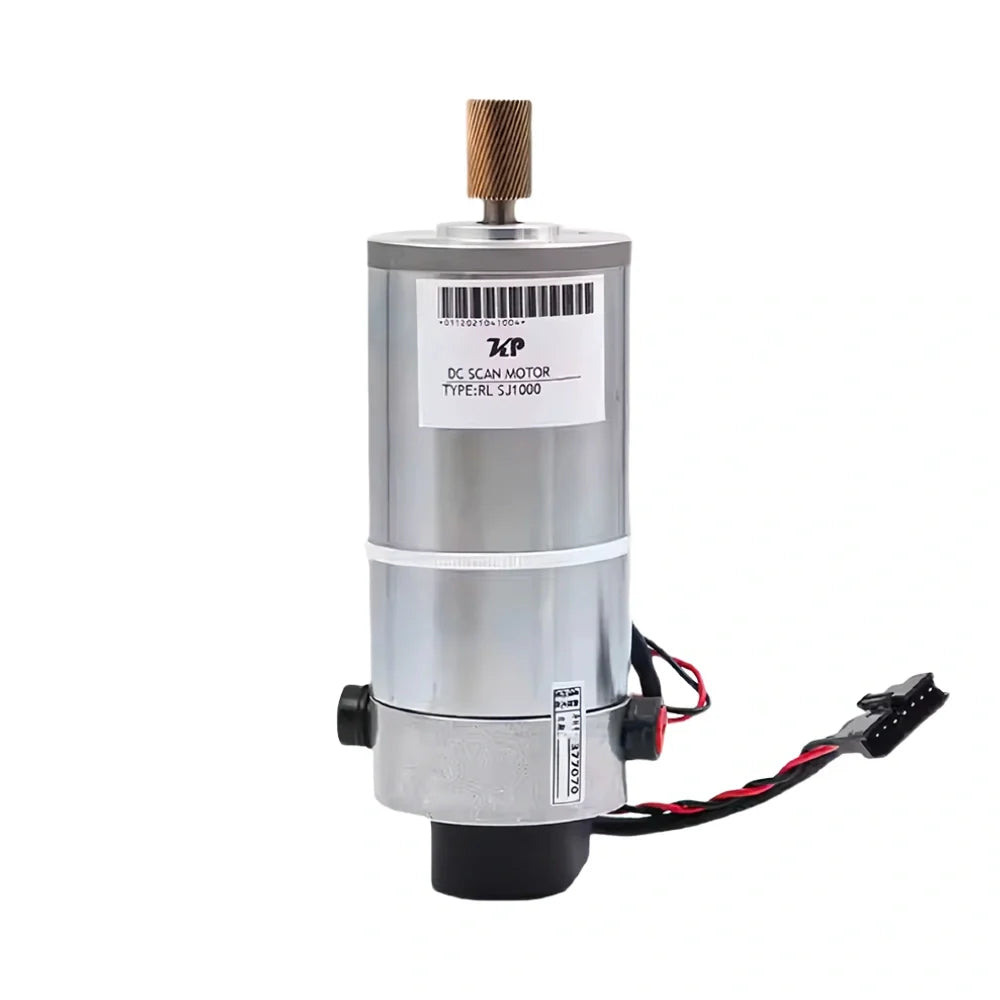

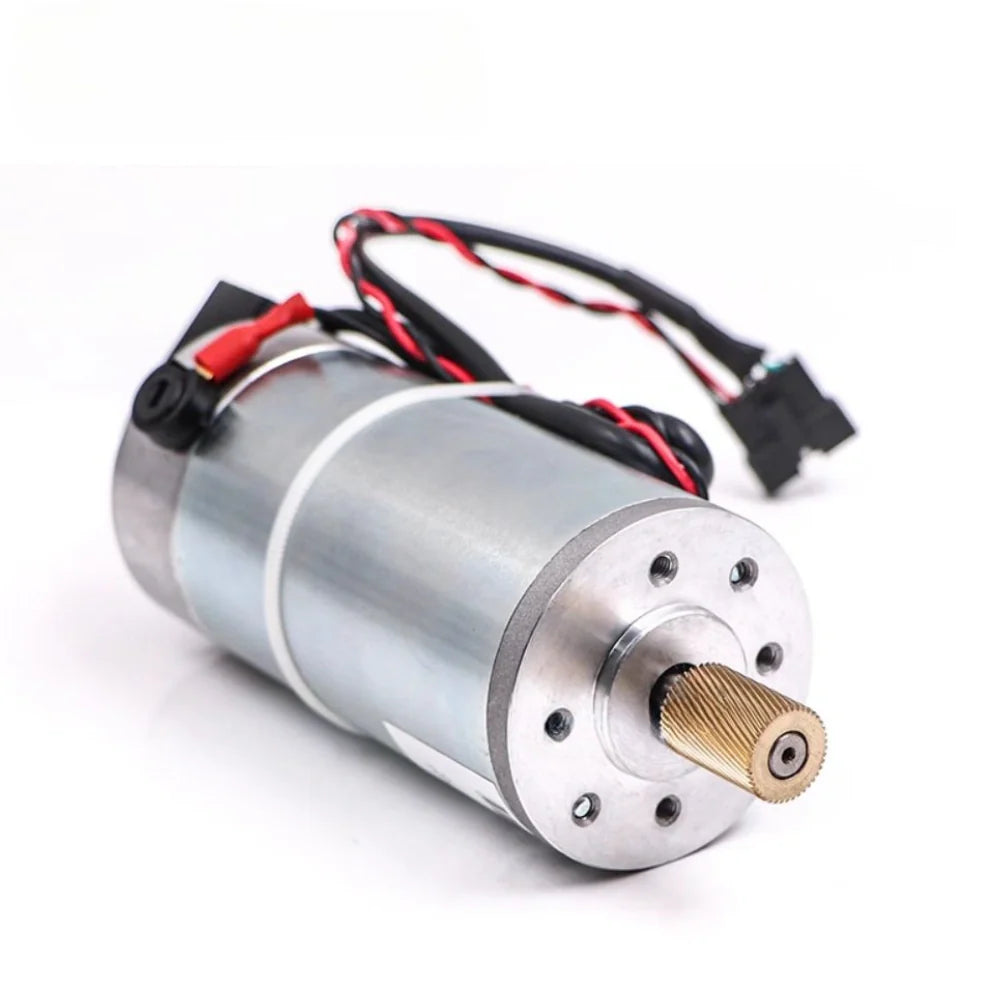

xThis carriage servo motor is installed within the carriage system of large-format printers and is responsible for driving the scanning movement during printing operations. Accurate motor control plays a key role in reducing positioning errors and maintaining consistent output quality.
The motor adopts a brushed DC core with a gear-driven output shaft, enabling stable torque delivery and controlled acceleration. This structure supports smooth engagement with the carriage transmission components and improves operational reliability over long-term use.
An integrated wiring harness allows direct connection to the printer control system, making the motor suitable for maintenance, repair, or replacement without additional wiring work.
Product Highlights
- Carriage scan motor for motion control systems
- Brushed DC drive structure with gear shaft output
- Stable speed control with smooth scanning movement
- Low noise operation suitable for continuous use
- Integrated cable for efficient servicing
Model Selection Table
Select the appropriate model based on your printer configuration. For accurate matching, we recommend checking the motor label and connector style before ordering.
| Model | Primary Function | Installation Area | Drive Type | Selection Notes |
|---|---|---|---|---|
| SJ1000 | Carriage scanning drive | CR axis carriage system | Brushed DC + gear drive | High-output motor for large-format systems |
| RS640 | Carriage scanning drive | Carriage motion assembly | Brushed DC + gear drive | Verify connector and shaft structure |
| SJ1045 | Carriage scanning drive | Carriage motion assembly | Brushed DC + gear drive | Confirm mounting compatibility before use |
| AJ1000 | Carriage scanning drive | Carriage motion assembly | Brushed DC + gear drive | Check wiring harness and installation position |
Maintenance Notes
- Confirm motor label, connector type, and shaft structure before replacement.
- Ensure smooth carriage movement after installation.
- Verify scanning stability during test printing.
