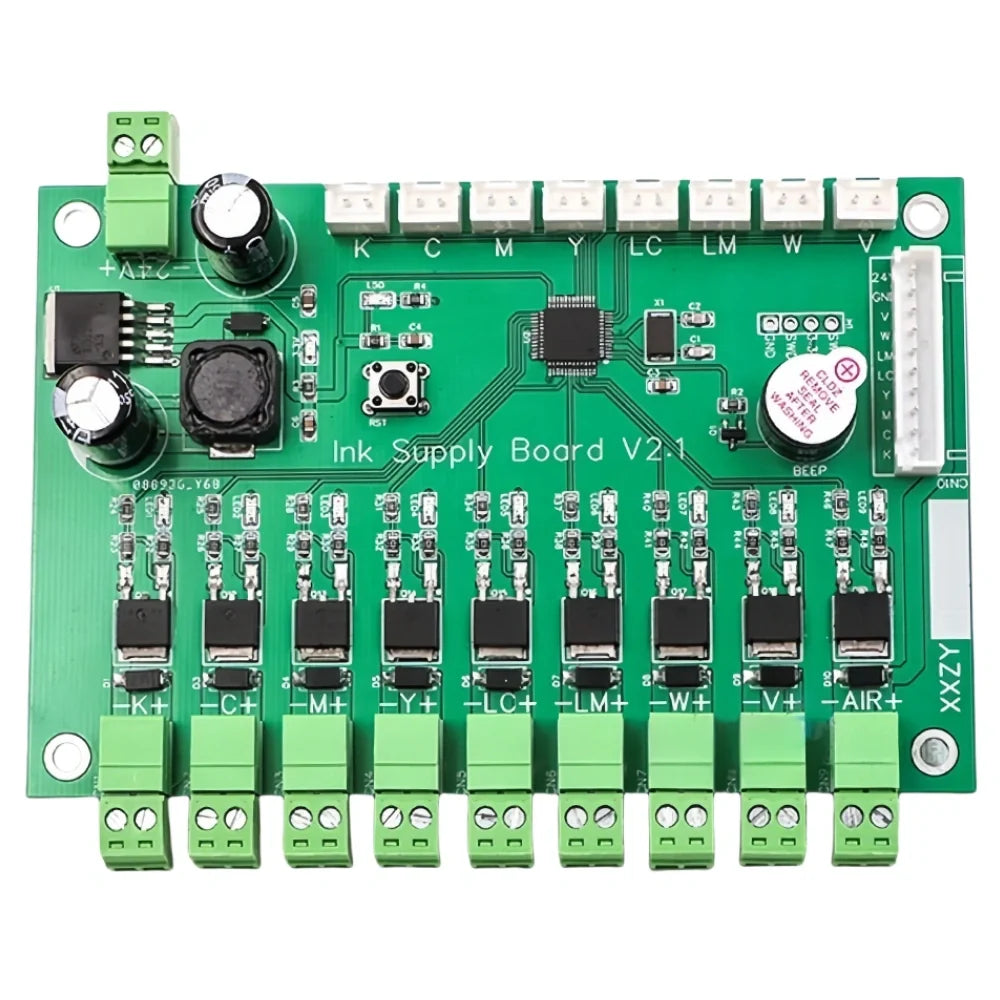

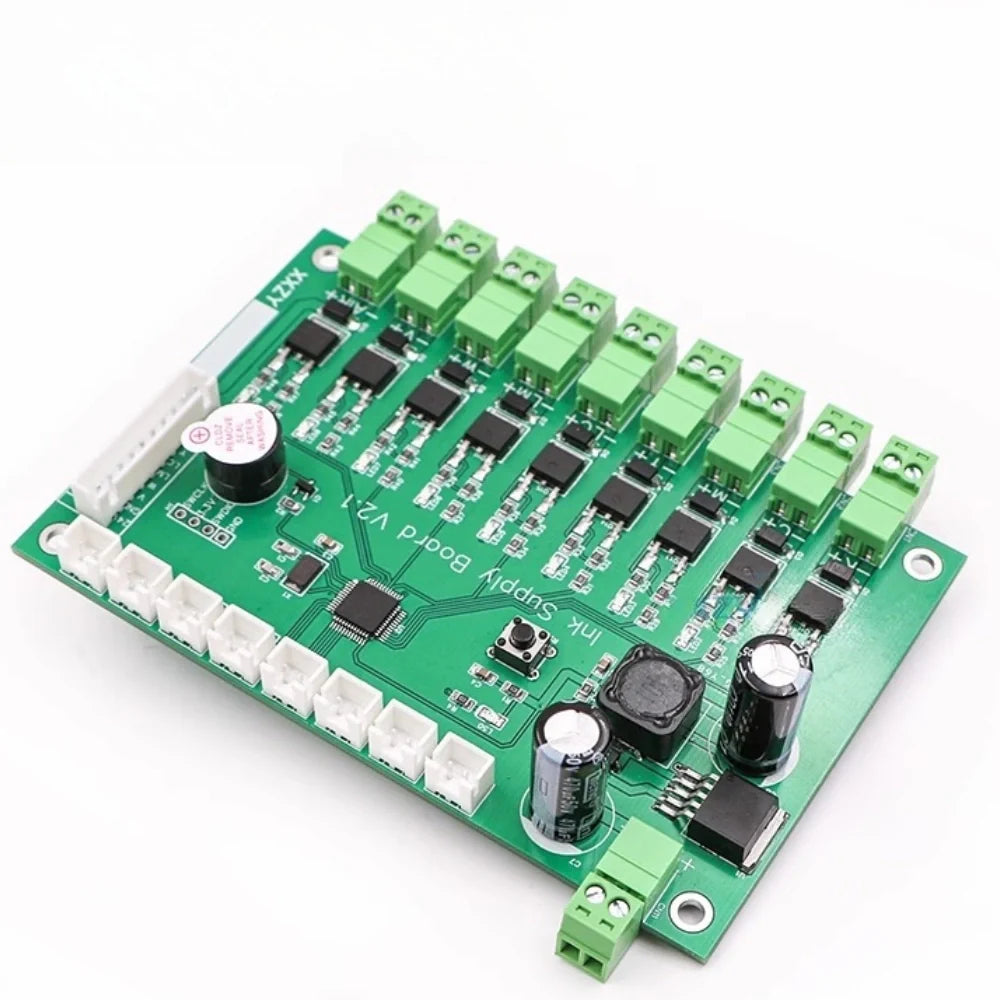

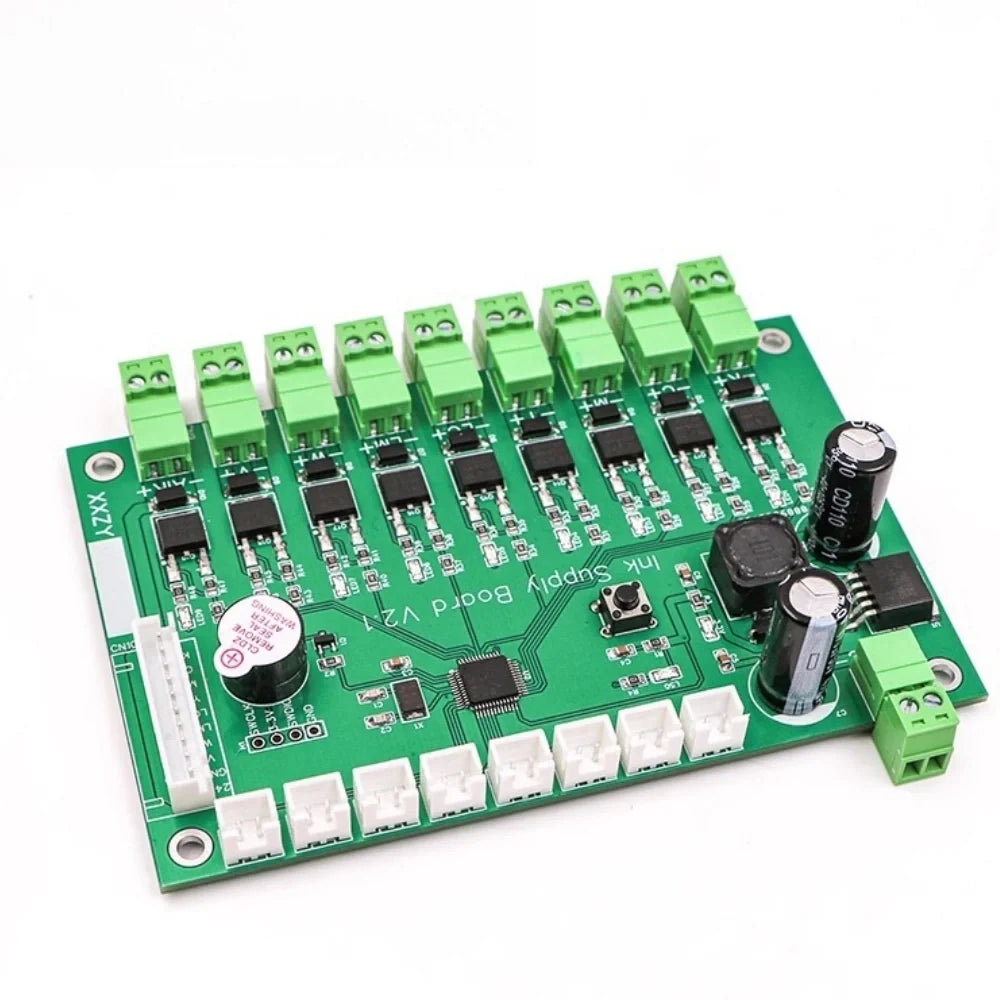

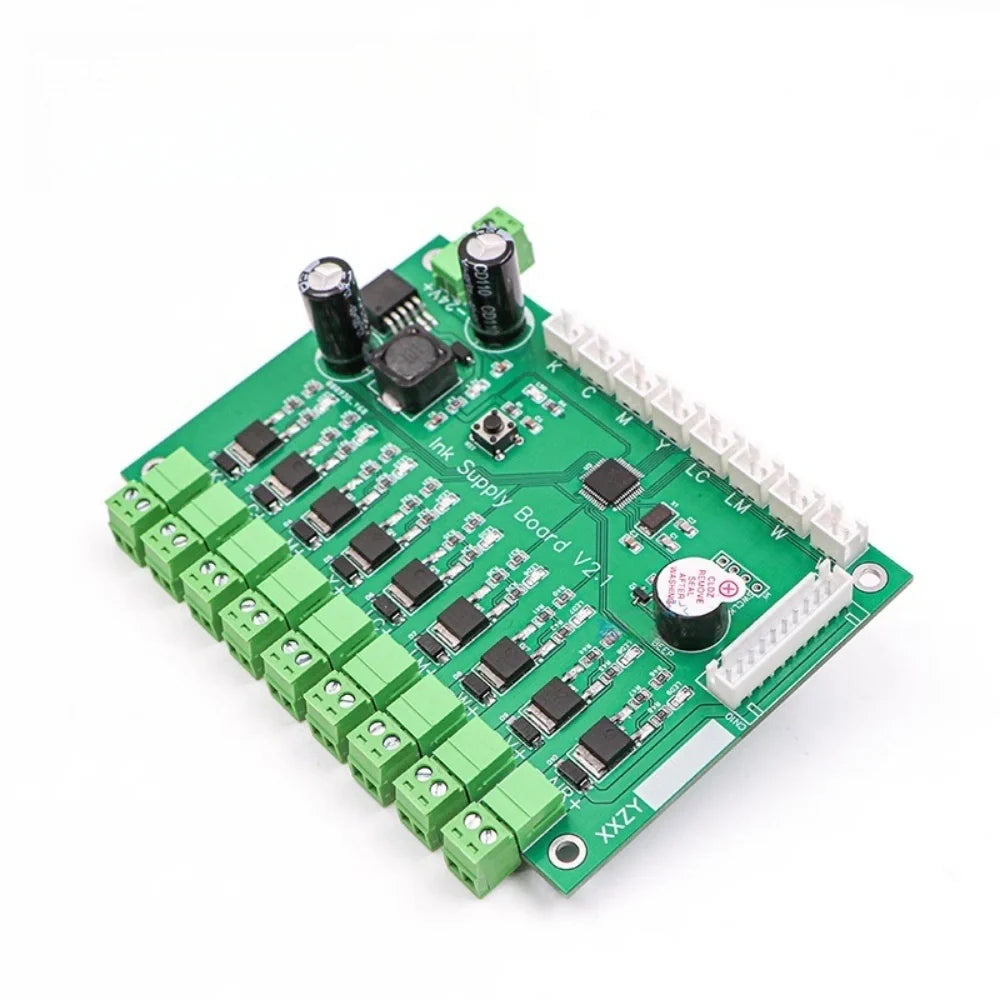

This advanced 8-channel UV ink supply control board (Ink Supply Board V2.1) is engineered for precise ink path management in UV flatbed printers, eco-solvent machines, and digital textile printers. It supports dual control modes for both secondary ink tanks and pressure-based color separation systems, ensuring smooth and stable ink delivery.
Key Features:
8 Independent Ink Channels: Supports CMYK + White + Varnish + Air Pump control with high reliability.
Dual Control Modes:
Mode 1: Triggered by ink level float signals (short or long cable configuration supported).
Mode 2: Pressure switch input for color-separated ink supply; activates ink solenoid valves and AIR at 24V output.
Overtime Protection Alarm: Beeper alerts when a single channel is open beyond 20 seconds to prevent damage.
24V Input with Stable Power Regulation: Ensures compatibility with most UV printer power systems.

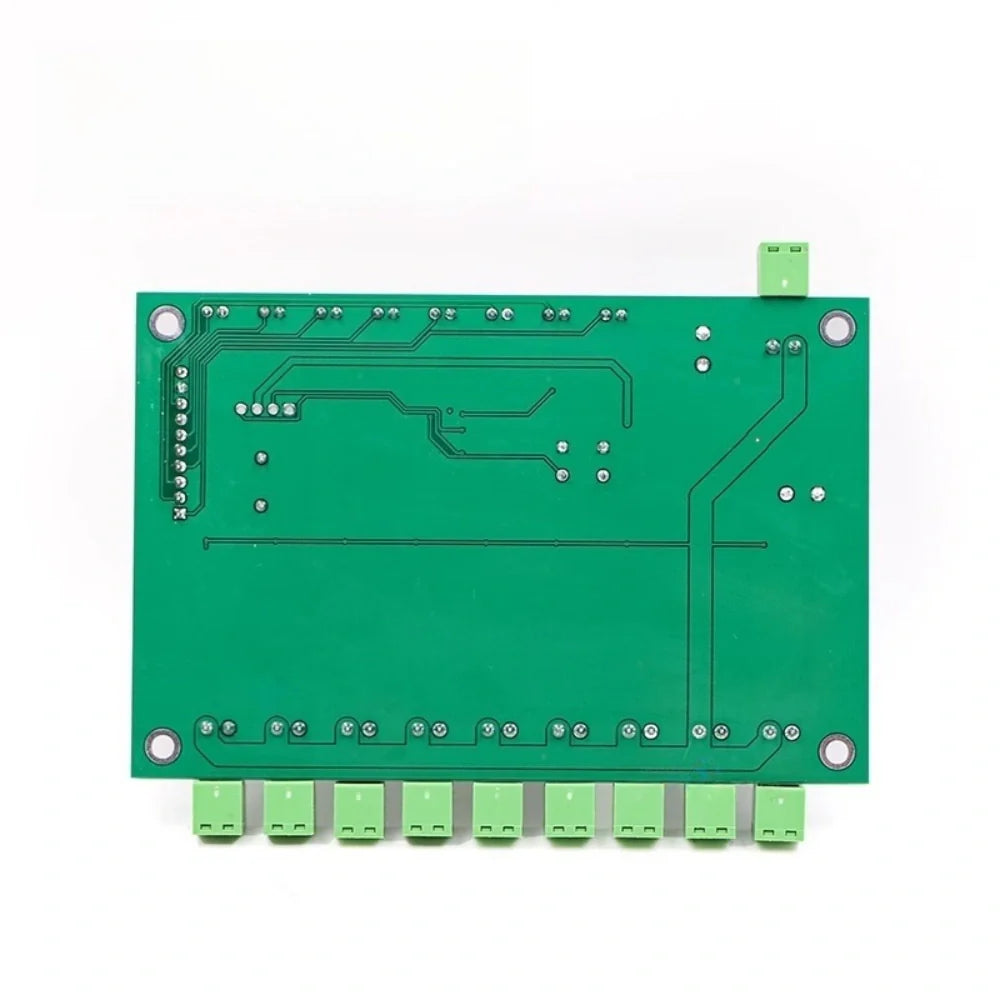

Compact Layout: PCB size 107mm × 67mm, designed for easy integration into existing printer structures.
Customizable Functions Available: Supports OEM adjustments for specialized printer builds.
Application Scope:
UV flatbed printers
Eco-solvent or solvent-based printers
Inkjet photo printers
Digital textile printing systems
Negative pressure ink cartridge management
Technical Specifications:
Power Input: DC 24V
Outputs: 8-channel 24V-controlled MOS outputs
Alarm: Built-in buzzer
Signal Ports: Signal IN 1 & IN 2, port-compatible with float or pressure sensor
